Photometry Diagnostics for lmc_u2pu02

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u2pu0201t	F555W	200.00	0.00	0.00	0.00	0.00	0.00	0.00
u2pu0202t	F555W	20.00	0.02	-0.04	0.00	0.00	0.02	-0.04
u2pu0203t	F555W	20.00	0.00	0.00	0.00	0.00	0.00	0.00
u2pu0204t	F555W	140.00	-0.02	0.02	0.00	0.00	-0.02	0.02
u2pu0205t	F555W	140.00	-0.04	0.05	0.00	0.00	-0.04	0.05
u2pu0206t	F555W	140.00	-0.06	0.05	0.00	0.00	-0.06	0.05
u2pu0207t	F555W	140.00	-0.05	0.04	0.00	0.00	-0.05	0.04
u2pu0208t	F555W	140.00	-0.03	0.03	0.00	0.00	-0.03	0.03
u2pu020ft	F814W	140.00	0.22	-0.07	0.00	0.00	0.22	-0.07
u2pu020gt	F814W	30.00	0.23	-0.08	0.00	0.00	0.23	-0.08
u2pu020ht	F814W	30.00	0.26	-0.12	0.00	0.00	0.26	-0.12
u2pu020it	F814W	30.00	0.24	-0.08	0.00	0.00	0.24	-0.08
u2pu020jt	F814W	200.00	0.22	-0.07	0.00	0.00	0.22	-0.07
u2pu020kt	F814W	200.00	0.16	-0.04	0.00	0.00	0.16	-0.04
u2pu020lt	F814W	200.00	0.13	-0.03	0.00	0.00	0.13	-0.03
u2pu020mt	F814W	200.00	0.13	-0.02	0.00	0.00	0.13	-0.02
u2pu020nt	F814W	200.00	0.16	-0.01	0.00	0.00	0.16	-0.01
u2pu0209t	F336W	200.00	-0.41	-0.93	0.00	0.00	-0.41	-0.93
u2pu020at	F336W	160.00	-0.35	-0.88	0.00	0.00	-0.35	-0.88
u2pu020bm	F336W	160.00	-0.32	-0.89	0.00	0.00	-0.32	-0.89
u2pu020ct	F336W	160.00	-0.28	-0.93	0.00	0.00	-0.28	-0.93
u2pu020dt	F336W	160.00	-0.27	-0.93	0.00	0.00	-0.27	-0.93
u2pu020et	F336W	160.00	-0.16	-1.25	0.00	0.00	-0.16	-1.25

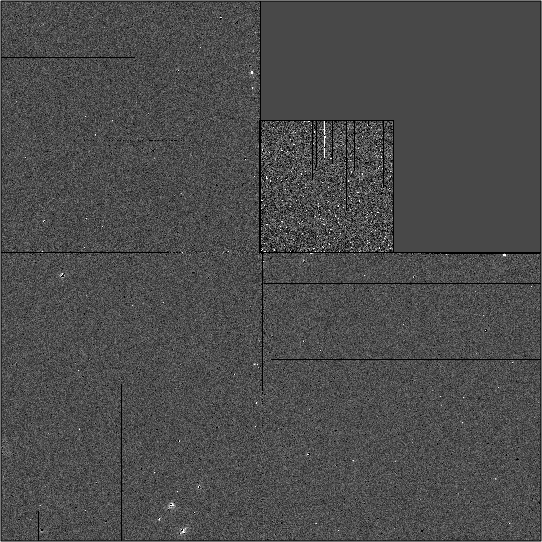

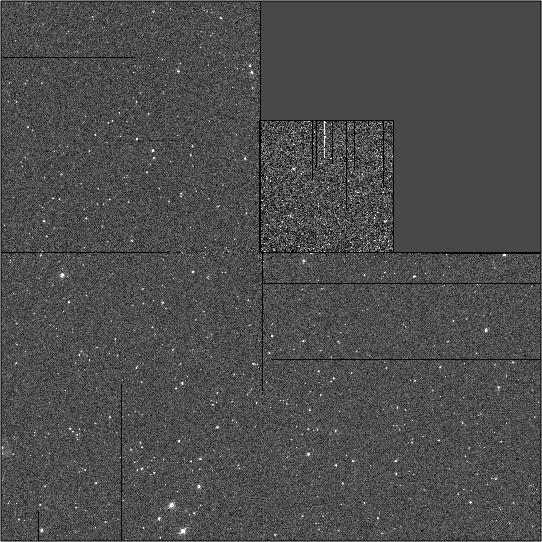

Mosaic images

F555W	F814W	F336W

HSTPHOT command log

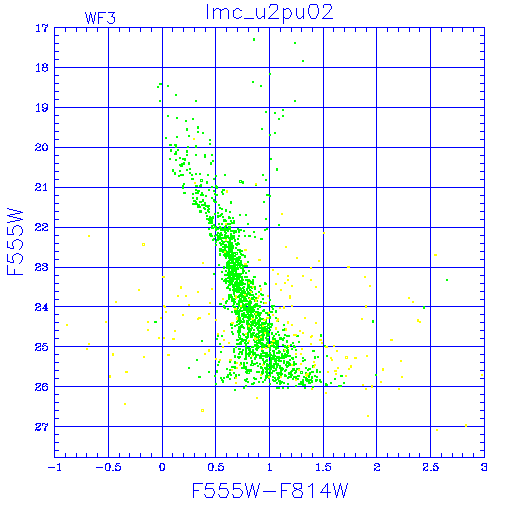

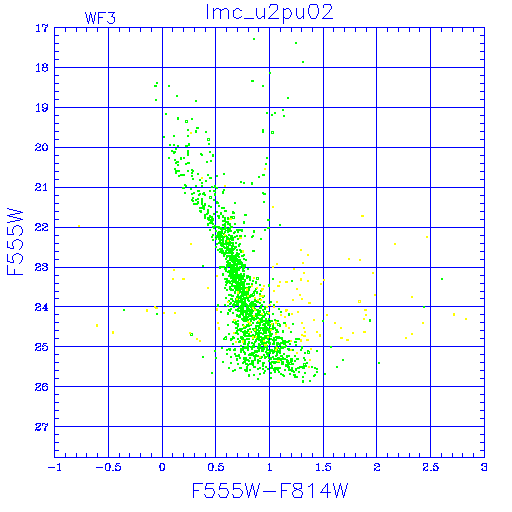

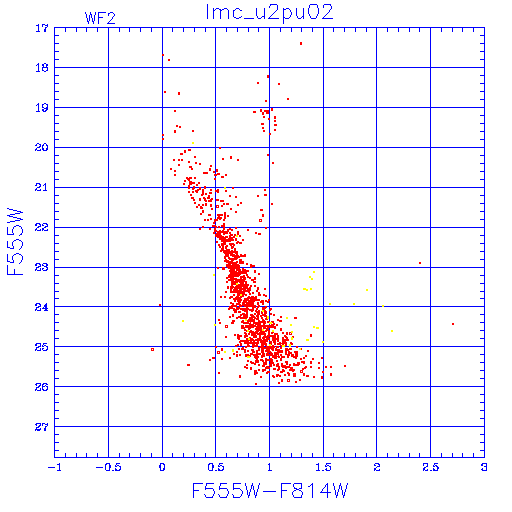

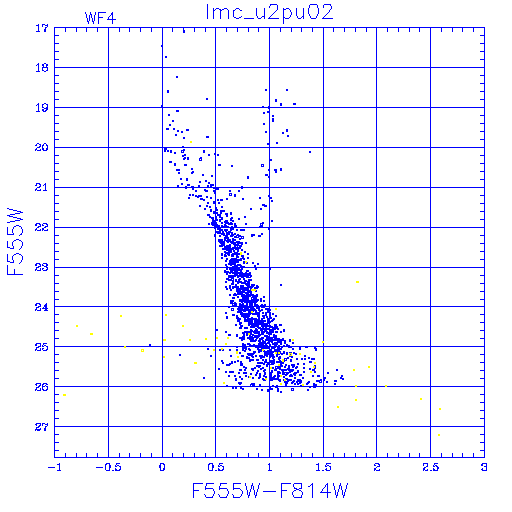

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4

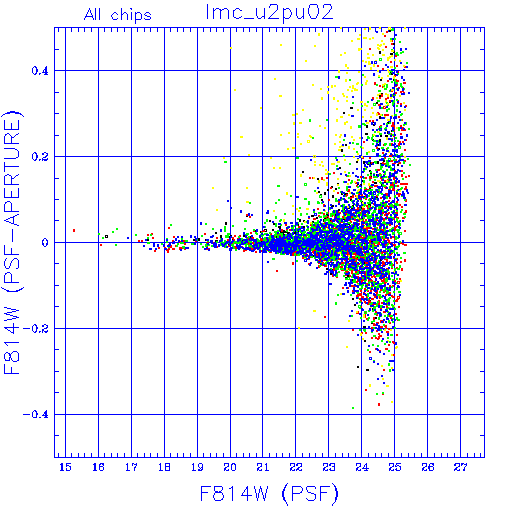

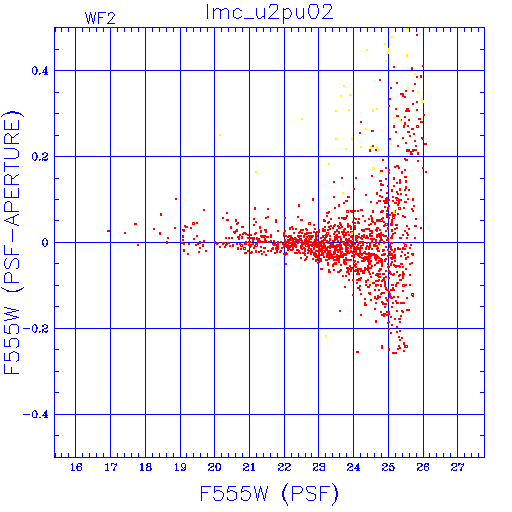

PSF
Aperture

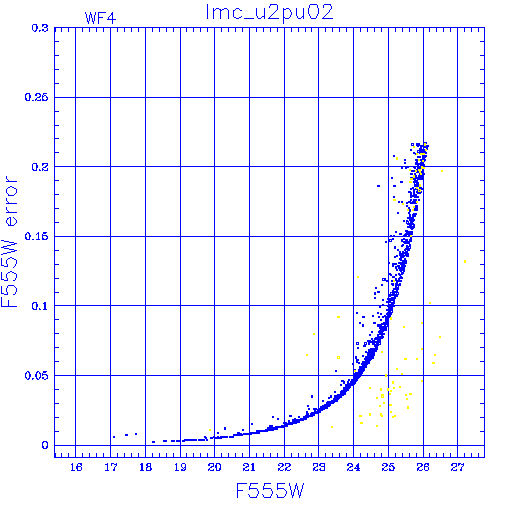

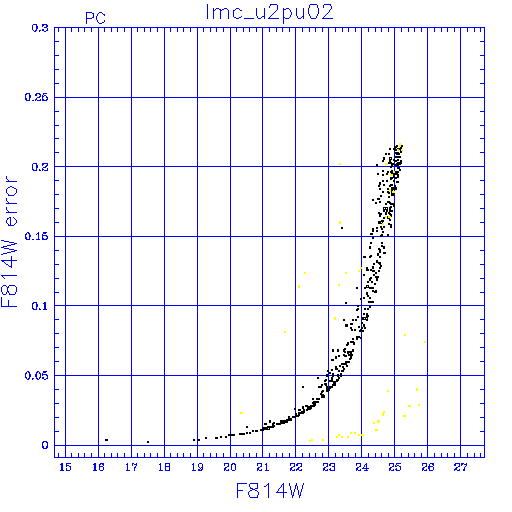

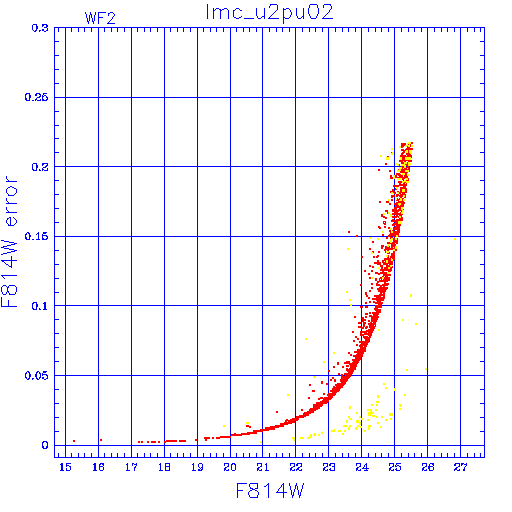

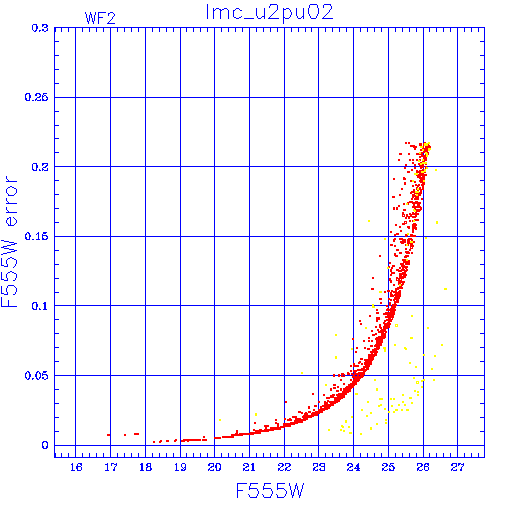

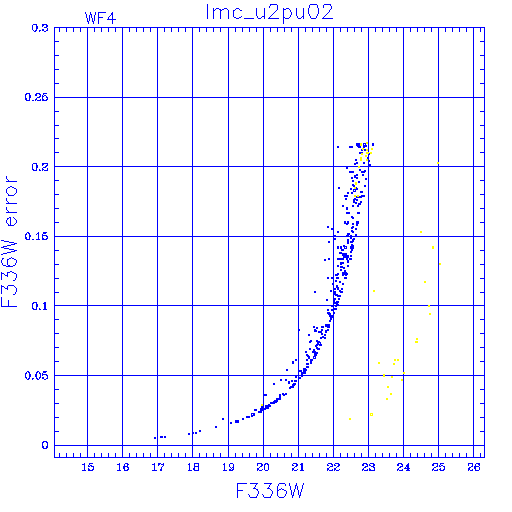

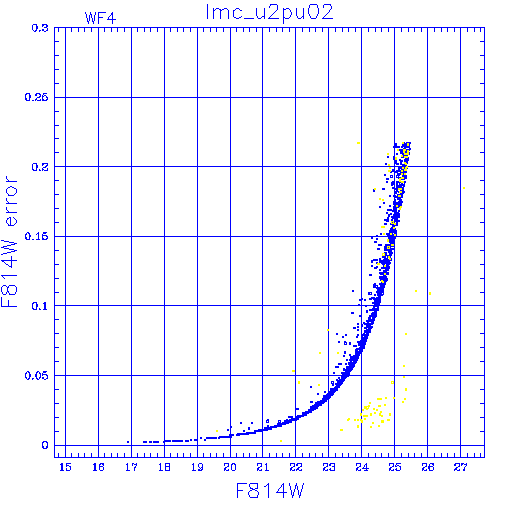

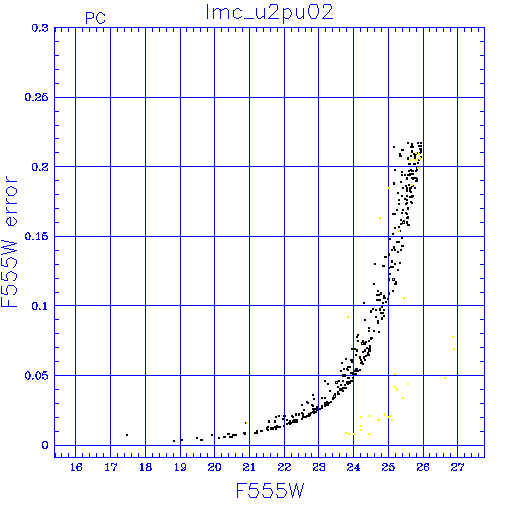

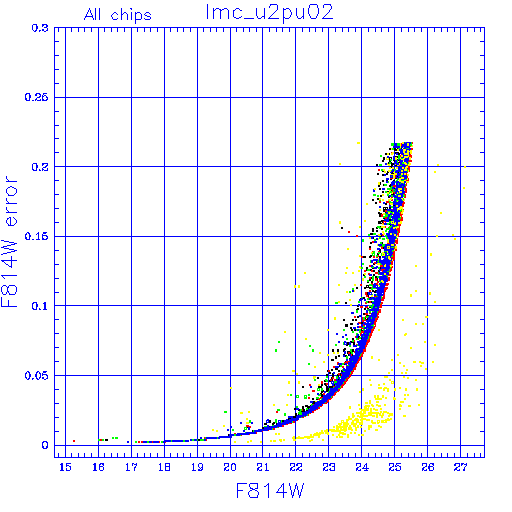

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w
f336w

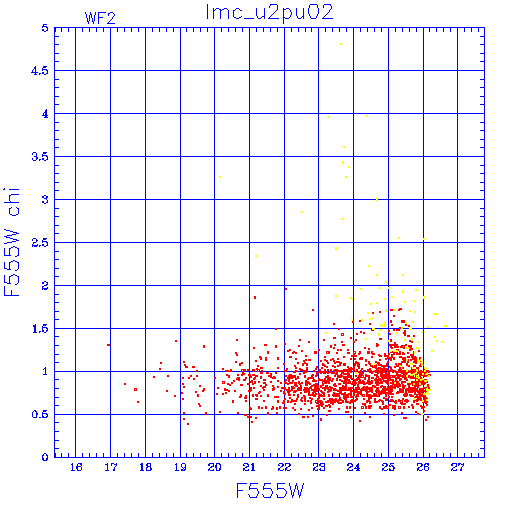

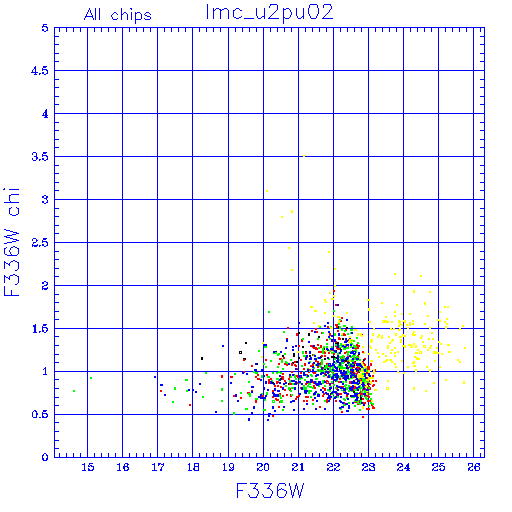

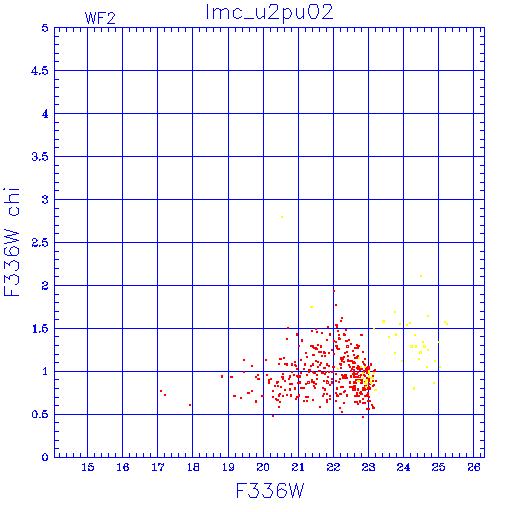

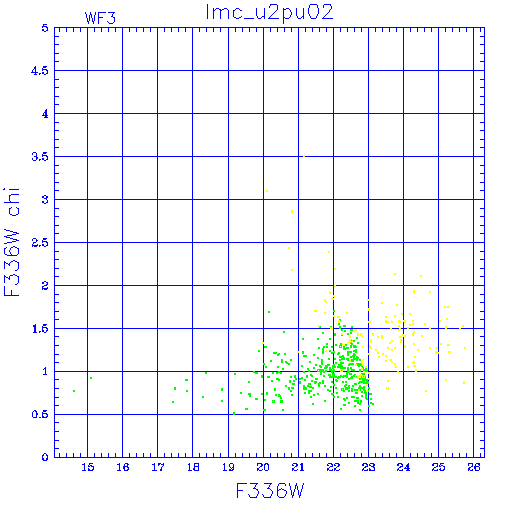

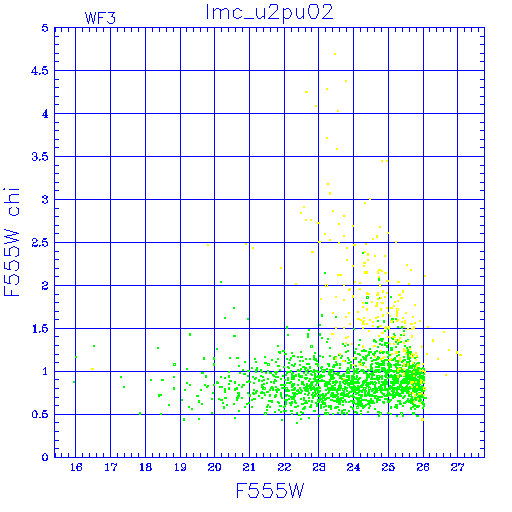

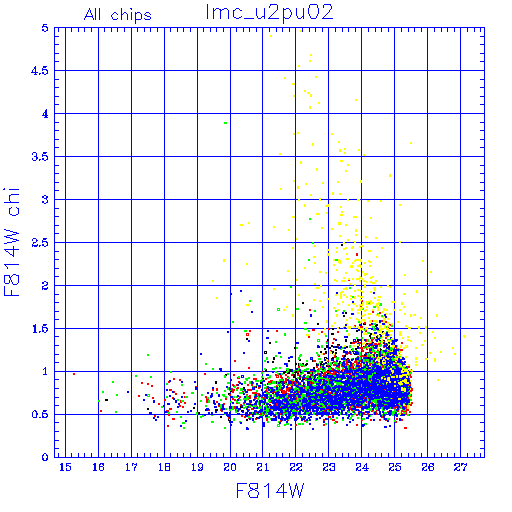

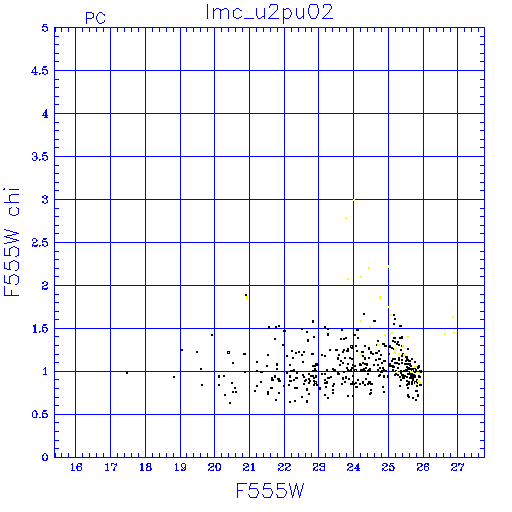

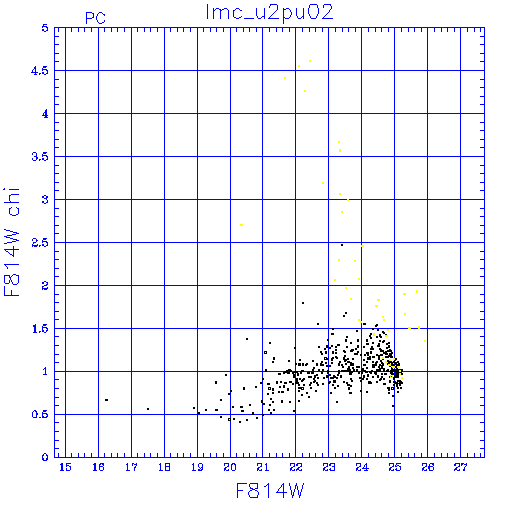

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w
f336w

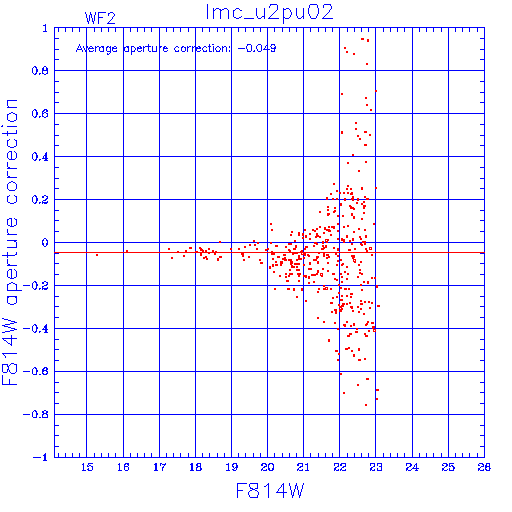

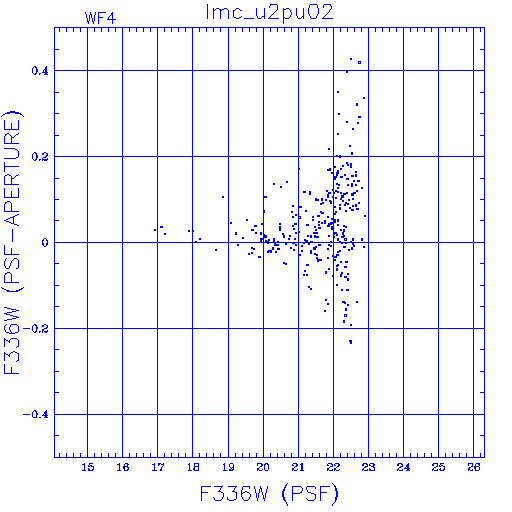

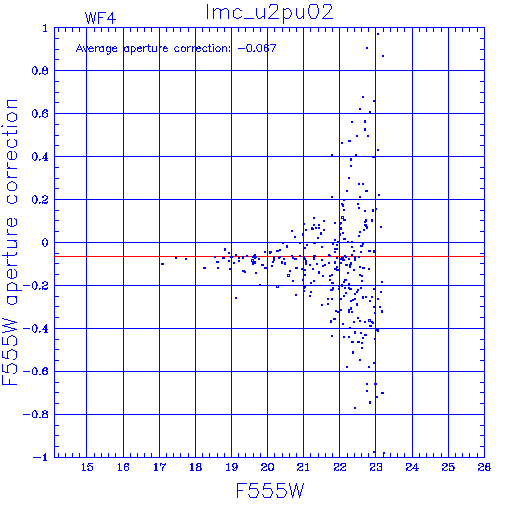

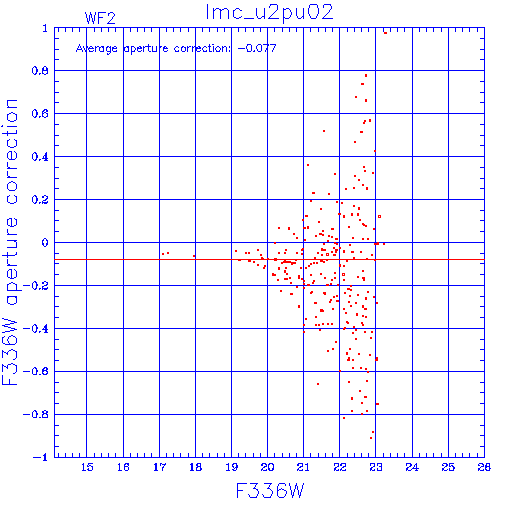

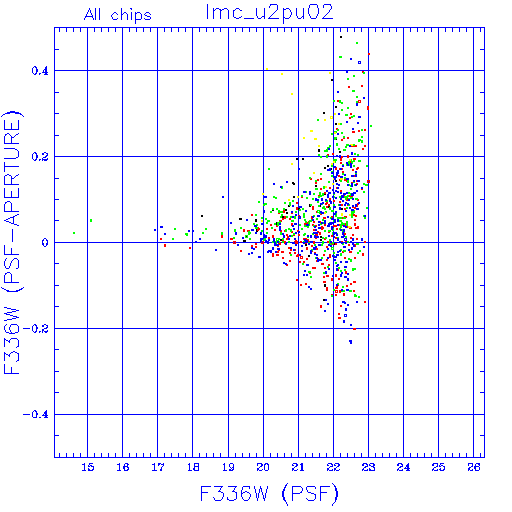

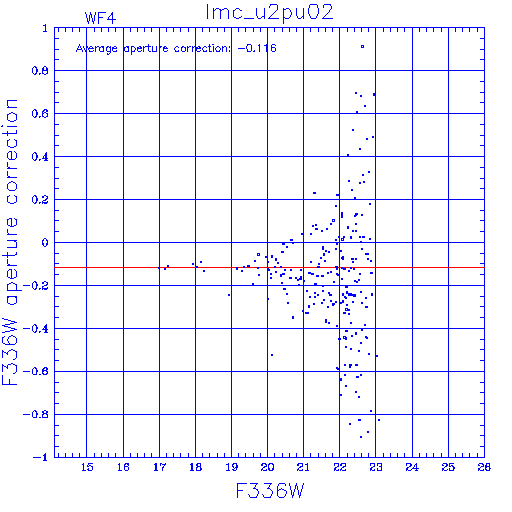

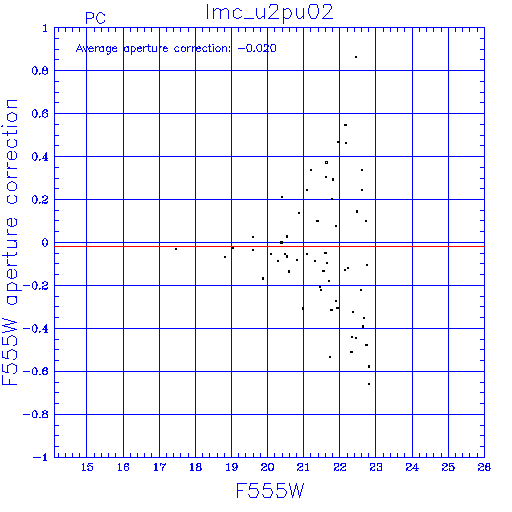

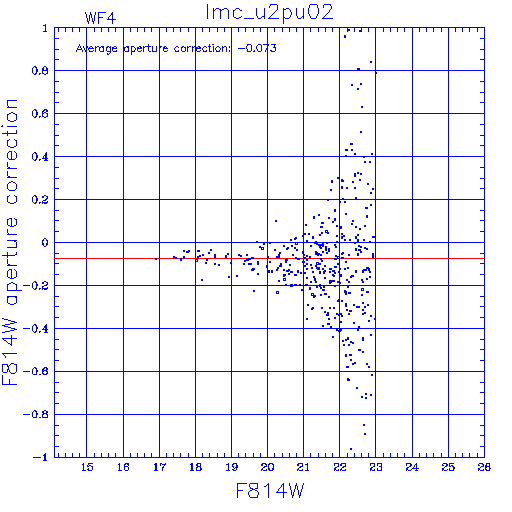

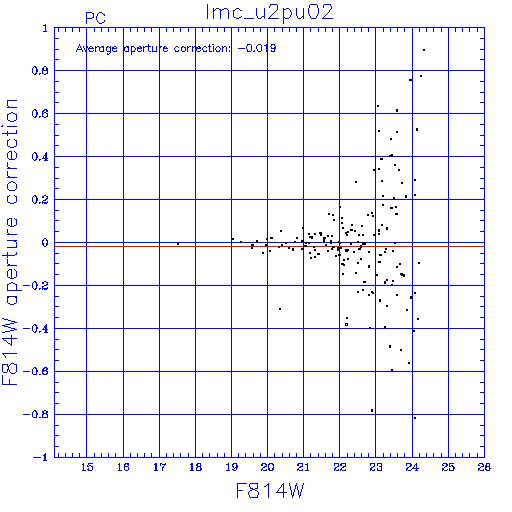

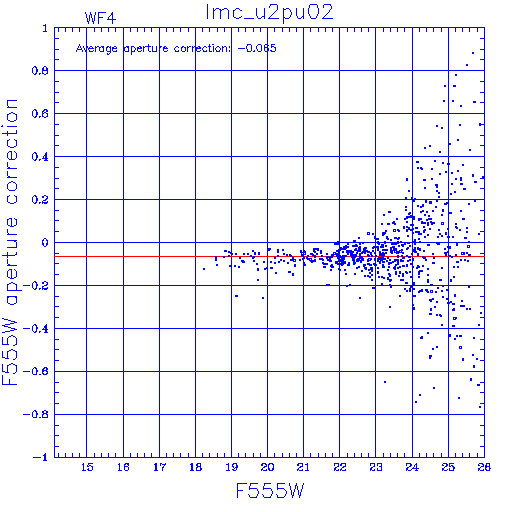

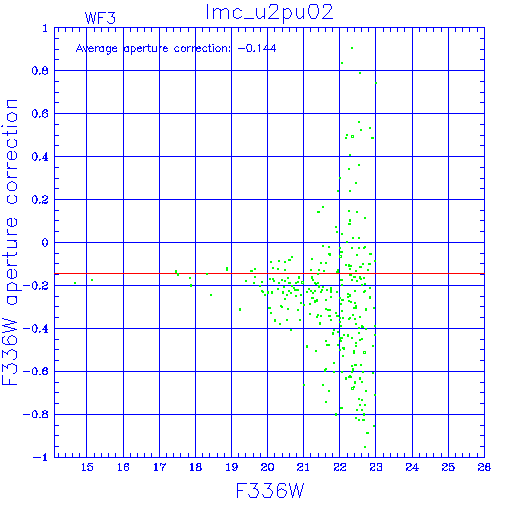

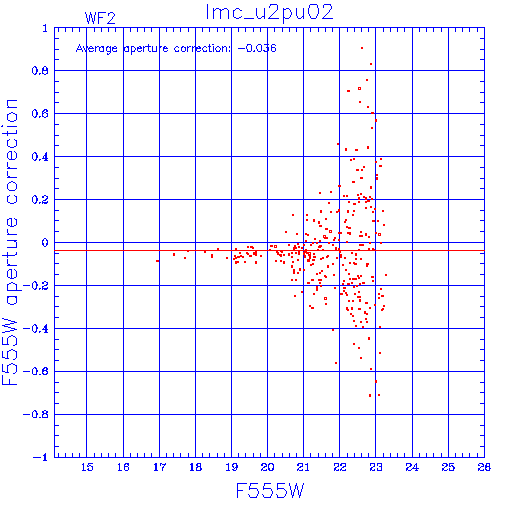

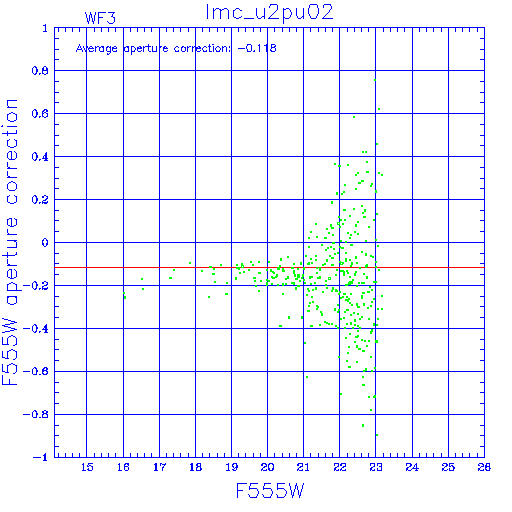

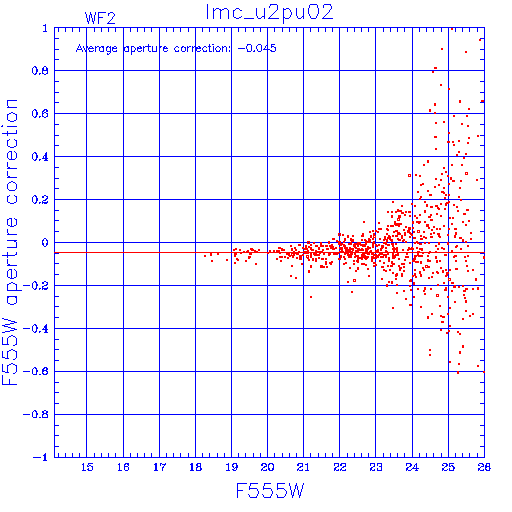

Aperture corrections

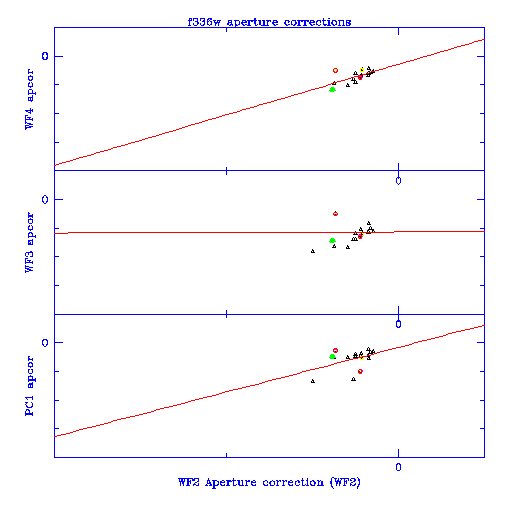

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
