Photometry Diagnostics for lmc_u2pu01

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u2pu0101t	F555W	200.00	0.00	0.00	0.00	0.00	0.00	0.00
u2pu0102t	F555W	20.00	-0.03	0.00	0.00	0.00	-0.03	0.00
u2pu0103t	F555W	20.00	-0.02	0.03	0.00	0.00	-0.02	0.03
u2pu0104t	F555W	140.00	-0.02	0.02	0.00	0.00	-0.02	0.02
u2pu0105t	F555W	140.00	0.01	0.05	0.00	0.00	0.01	0.05
u2pu0106t	F555W	140.00	0.04	0.07	0.00	0.00	0.04	0.07
u2pu0107t	F555W	140.00	0.05	0.08	0.00	0.00	0.05	0.08
u2pu0108t	F555W	140.00	0.06	0.08	0.00	0.00	0.06	0.08
u2pu010ft	F814W	140.00	0.00	0.08	0.00	0.00	0.00	0.08
u2pu010gt	F814W	30.00	0.01	0.08	0.00	0.00	0.01	0.08
u2pu010ht	F814W	30.00	0.01	0.08	0.00	0.00	0.01	0.08
u2pu010it	F814W	30.00	0.04	0.10	0.00	0.00	0.04	0.10
u2pu010jt	F814W	200.00	0.11	0.12	0.00	0.00	0.11	0.12
u2pu010kt	F814W	200.00	0.14	0.11	0.00	0.00	0.14	0.11
u2pu010lt	F814W	200.00	0.14	0.12	0.00	0.00	0.14	0.12
u2pu010mt	F814W	200.00	0.13	0.14	0.00	0.00	0.13	0.14
u2pu010nt	F814W	200.00	0.11	0.16	0.00	0.00	0.11	0.16
u2pu0109t	F336W	200.00	-0.58	-0.79	0.00	0.00	-0.58	-0.79
u2pu010at	F336W	160.00	-0.59	-0.79	0.00	0.00	-0.59	-0.79
u2pu010bt	F336W	160.00	-0.62	-0.72	0.00	0.00	-0.62	-0.72
u2pu010ct	F336W	160.00	-0.64	-0.70	0.00	0.00	-0.64	-0.70
u2pu010dt	F336W	160.00	-0.64	-0.65	0.00	0.00	-0.64	-0.65
u2pu010et	F336W	160.00	-0.72	-0.86	0.00	0.00	-0.72	-0.86

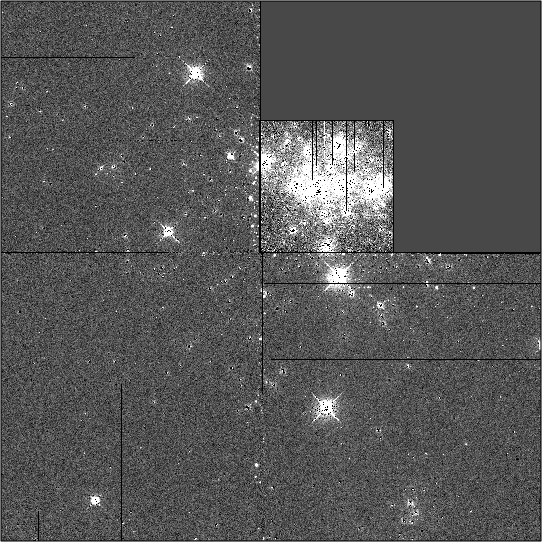

Mosaic images

F555W	F814W	F336W

HSTPHOT command log

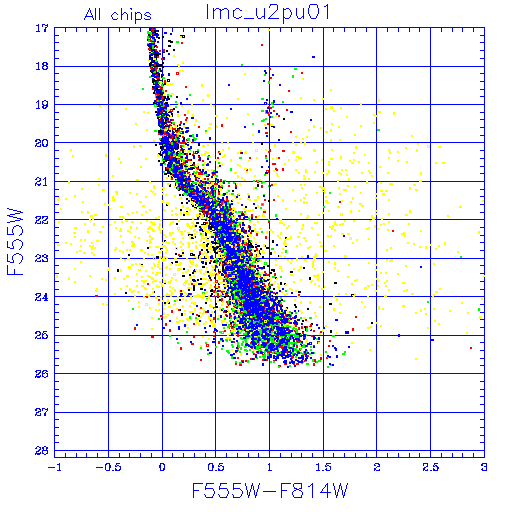

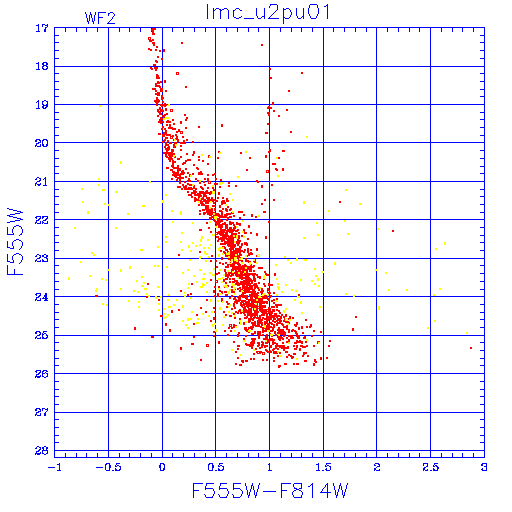

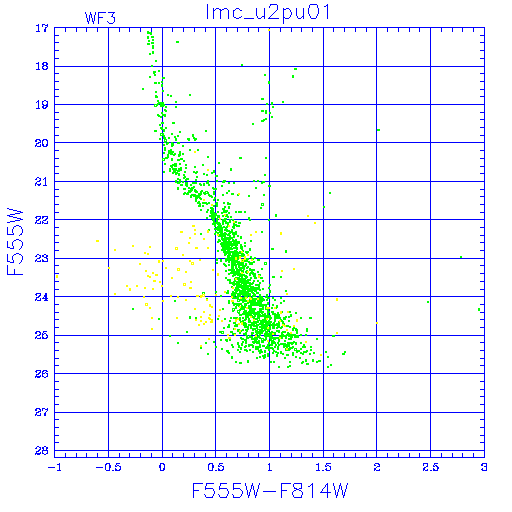

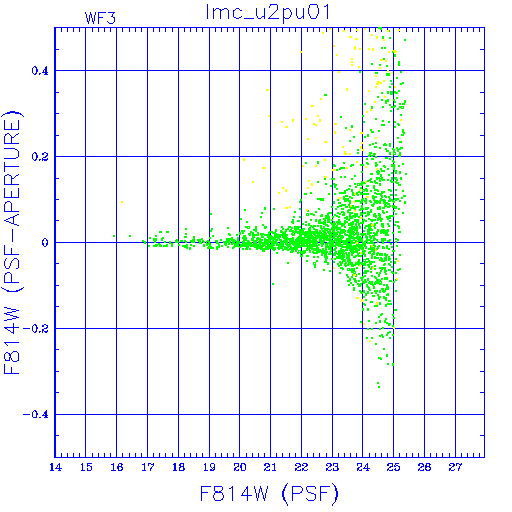

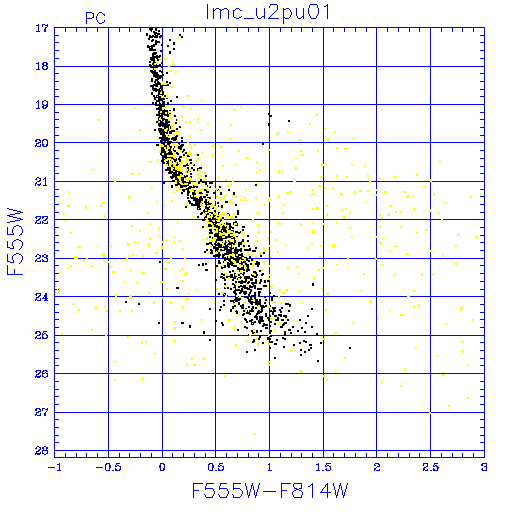

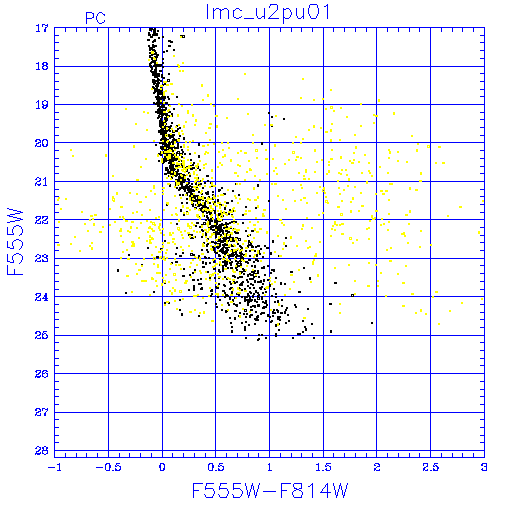

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4

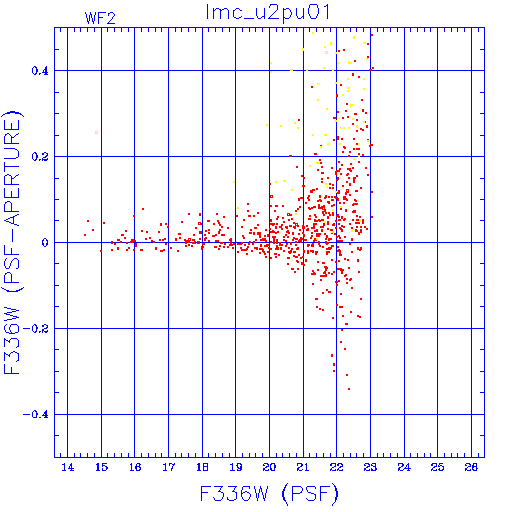

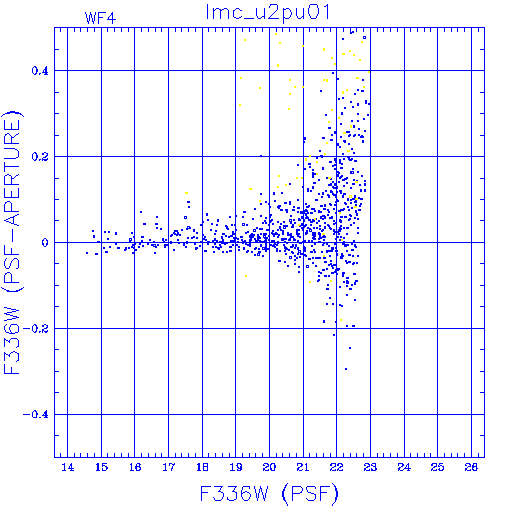

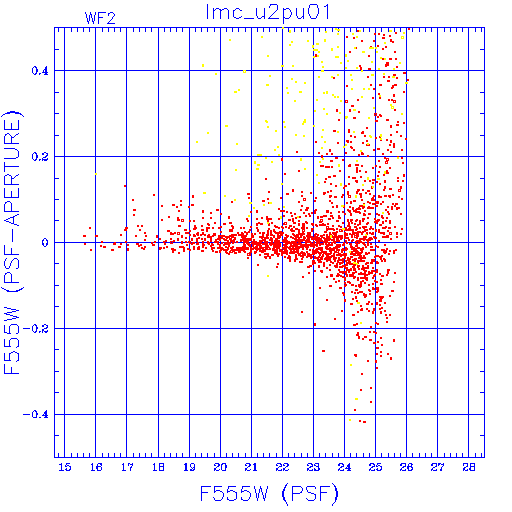

PSF
Aperture

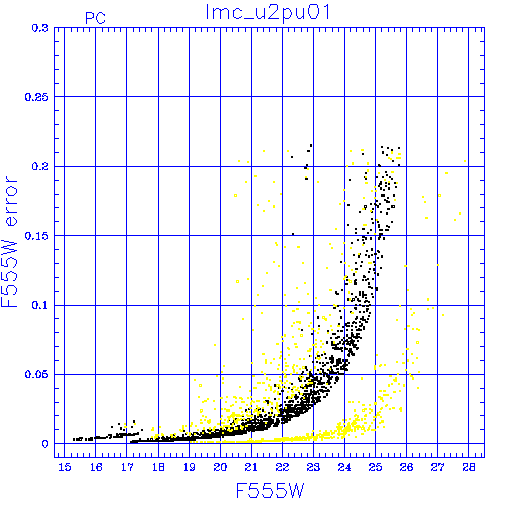

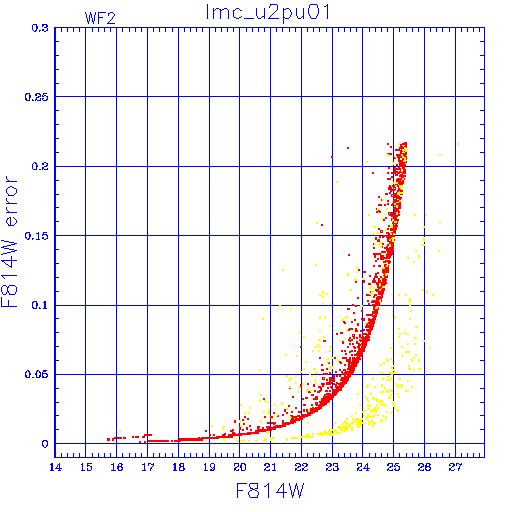

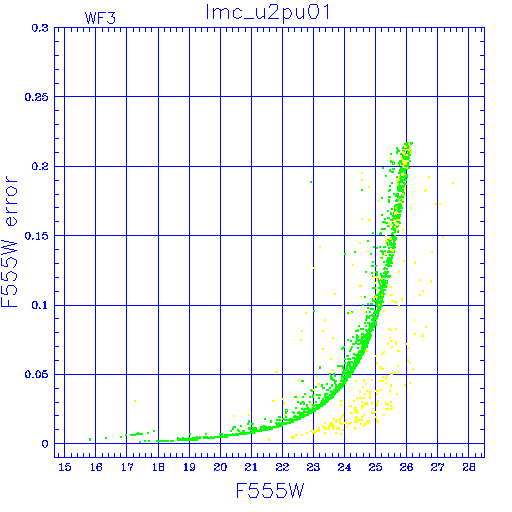

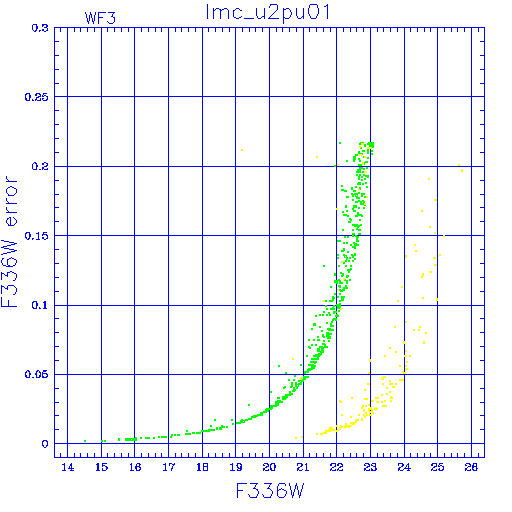

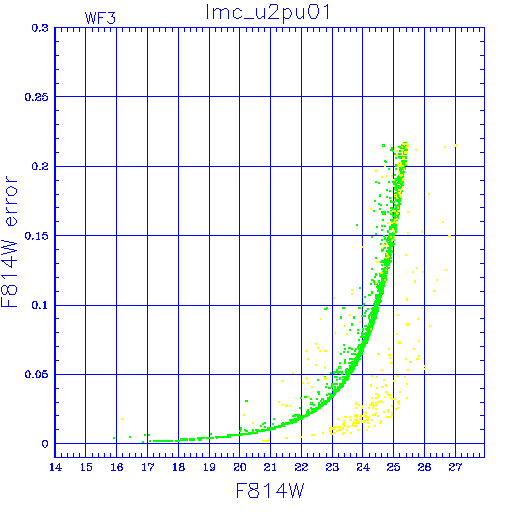

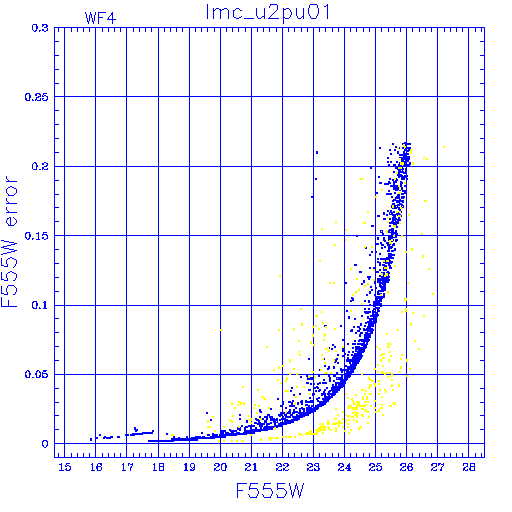

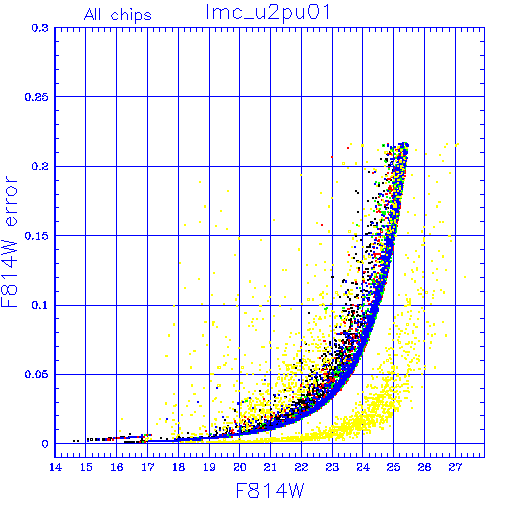

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w
f336w

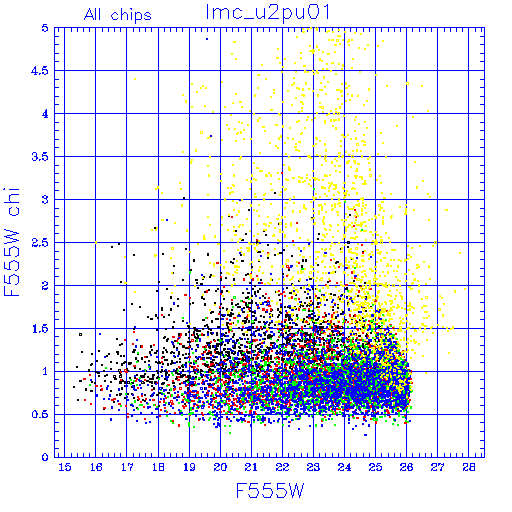

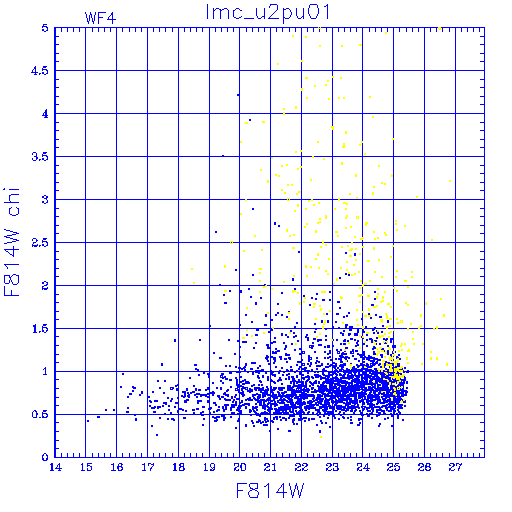

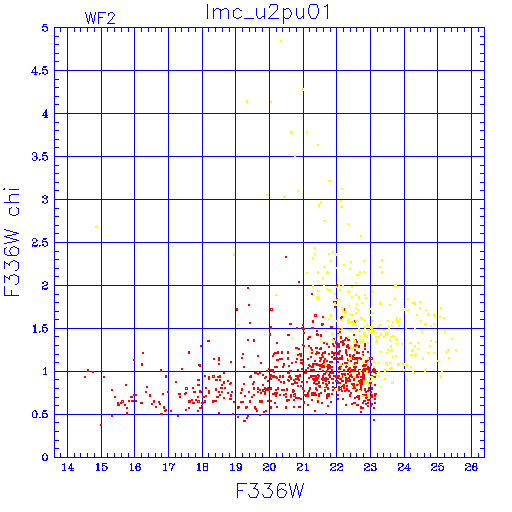

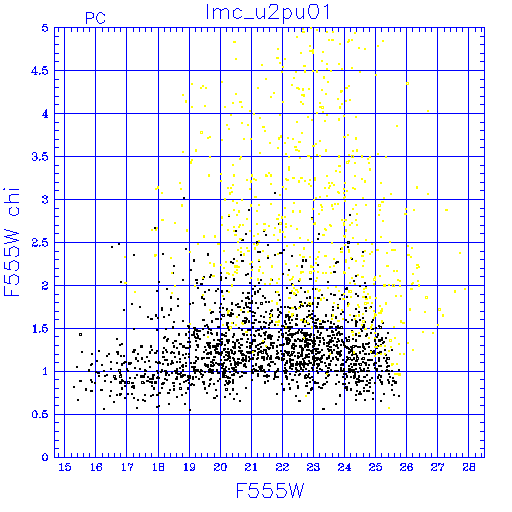

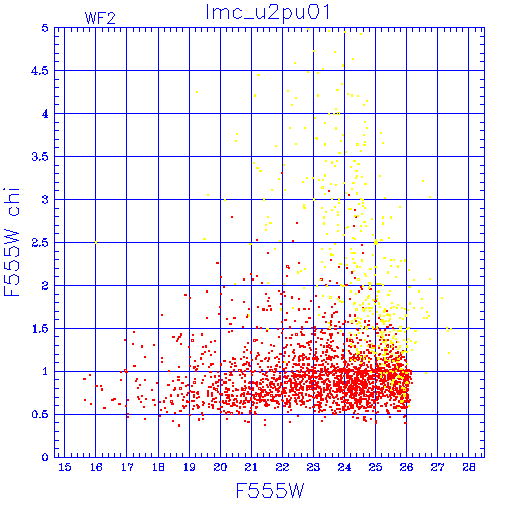

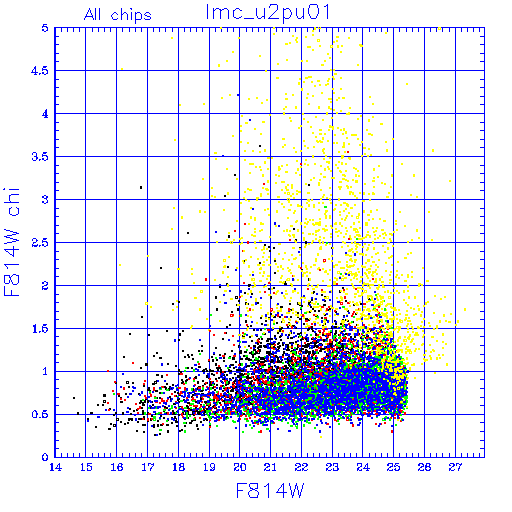

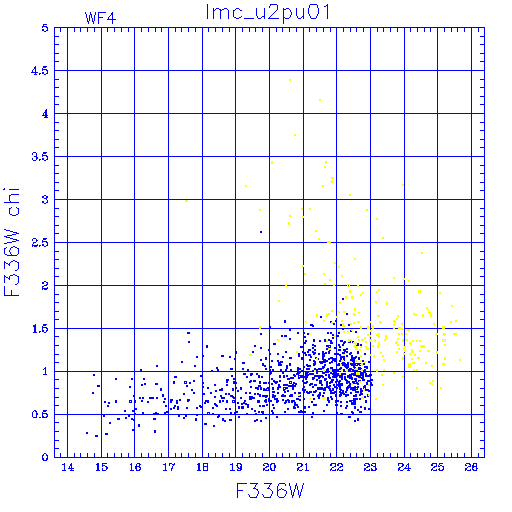

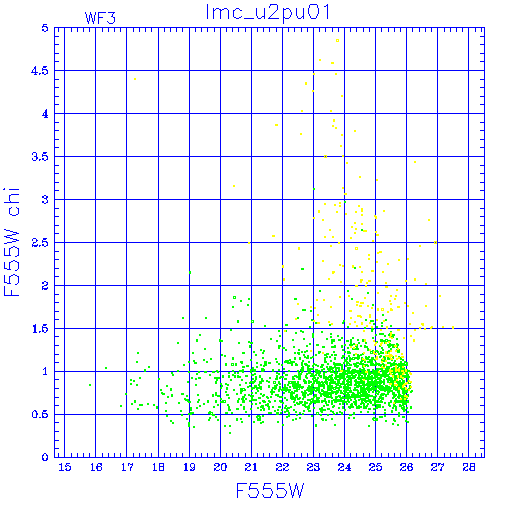

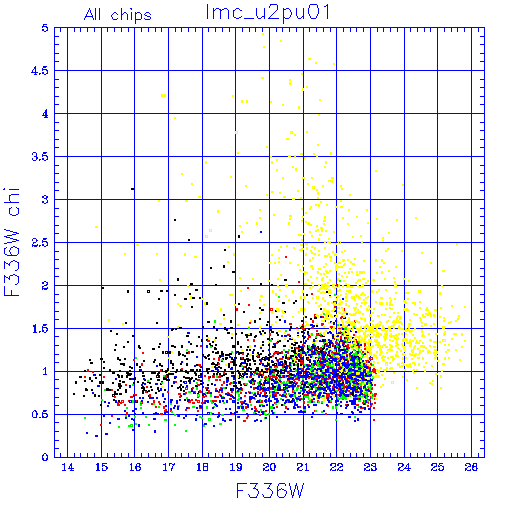

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w
f336w

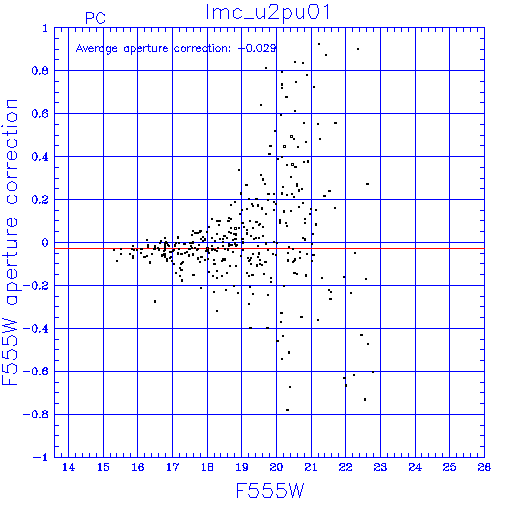

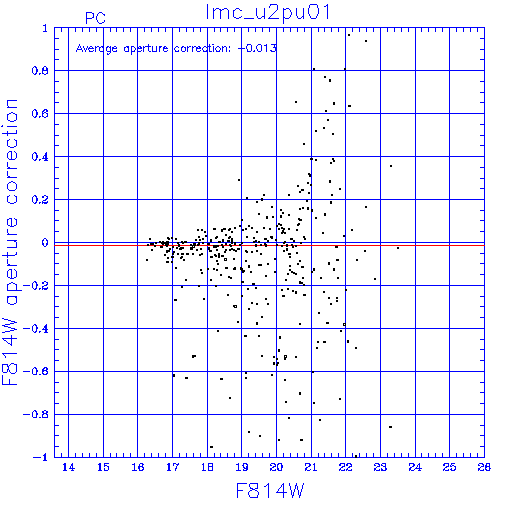

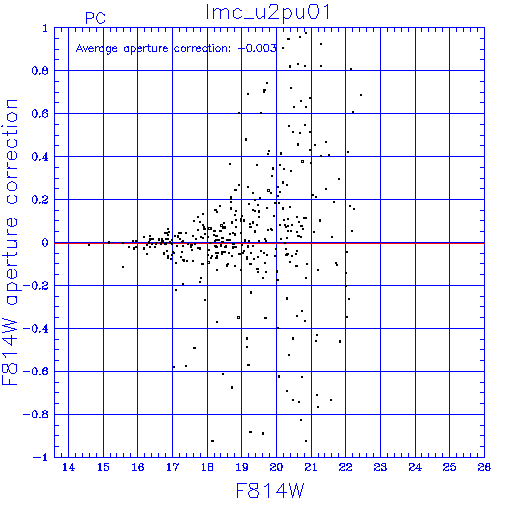

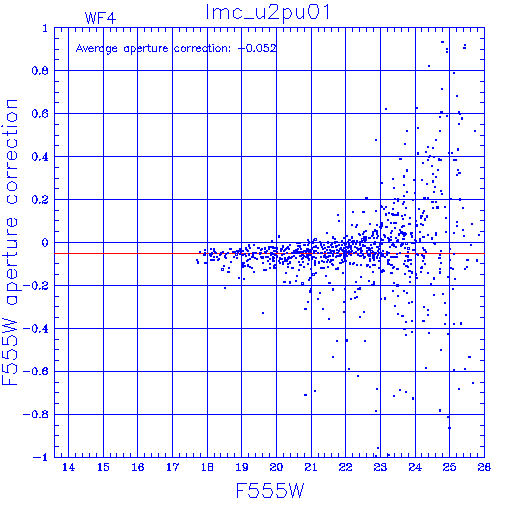

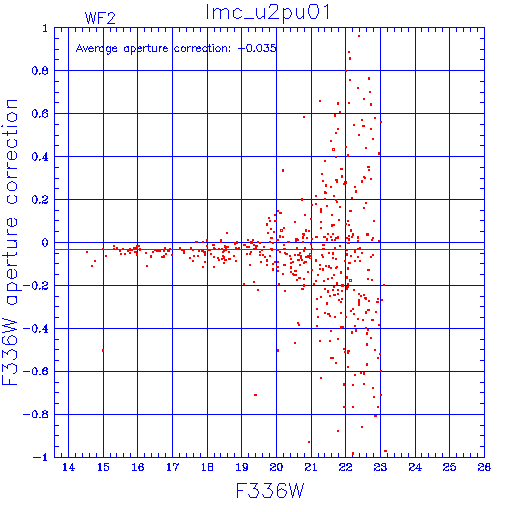

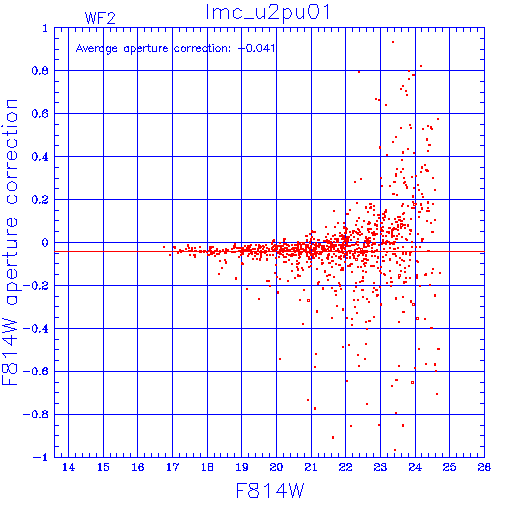

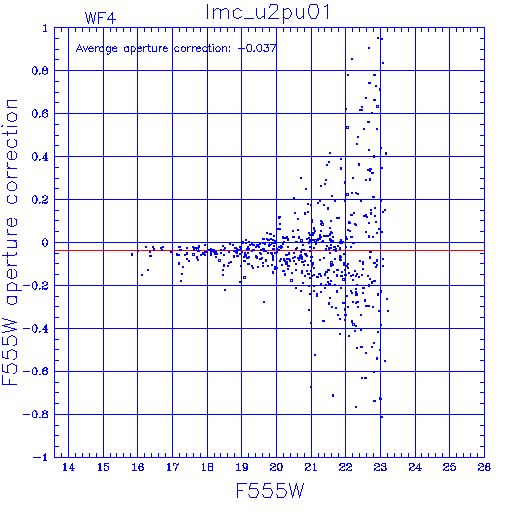

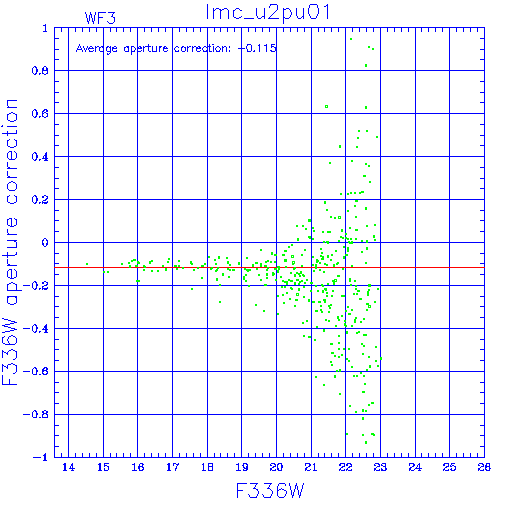

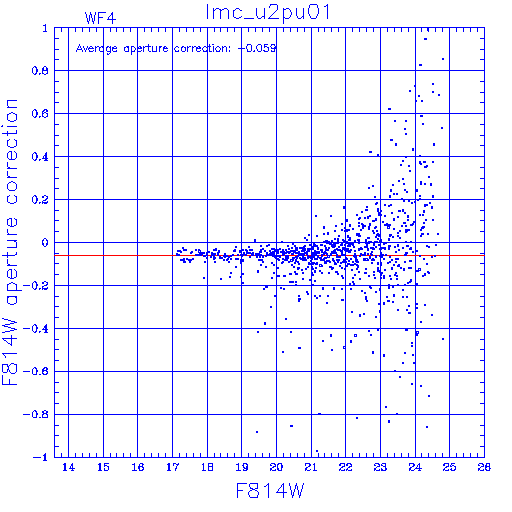

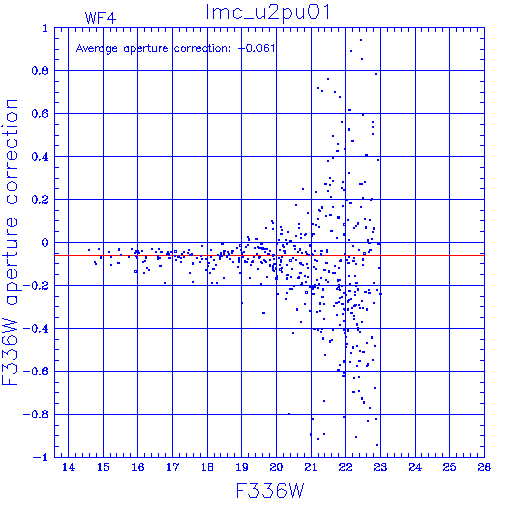

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
