Photometry Diagnostics for lmc_u2o901

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u2o90101t	F555W	1300.00	0.00	0.00	0.00	0.00	0.00	0.00
u2o90102t	F555W	200.00	-0.02	0.05	0.00	0.00	-0.02	0.05
u2o90103t	F555W	1000.00	0.03	0.05	0.00	0.00	0.03	0.05
u2o90104t	F555W	1100.00	0.03	-0.04	0.00	0.00	0.03	-0.04
u2o90105t	F814W	1400.00	0.05	0.08	0.00	0.00	0.05	0.08
u2o90106t	F814W	1300.00	0.05	0.10	0.00	0.00	0.05	0.10
u2o90107t	F814W	200.00	0.03	0.11	0.00	0.00	0.03	0.11
u2o90108t	F814W	1100.00	0.04	0.17	0.00	0.00	0.04	0.17

Mosaic images

F555W	F814W

HSTPHOT command log

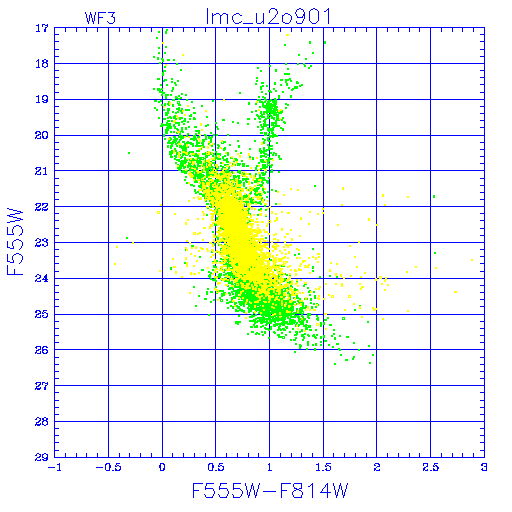

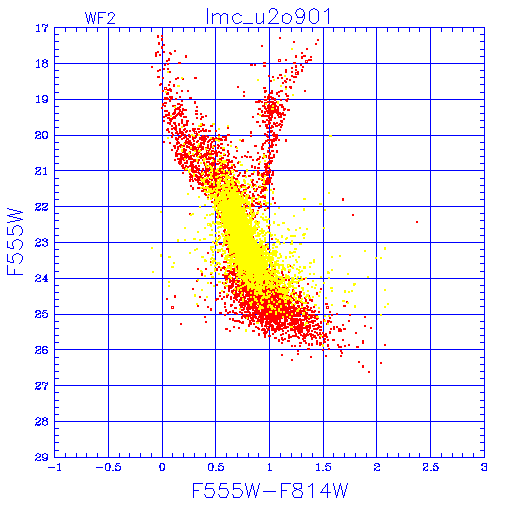

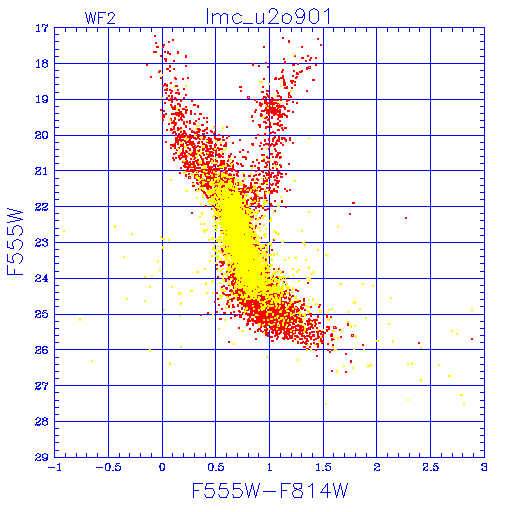

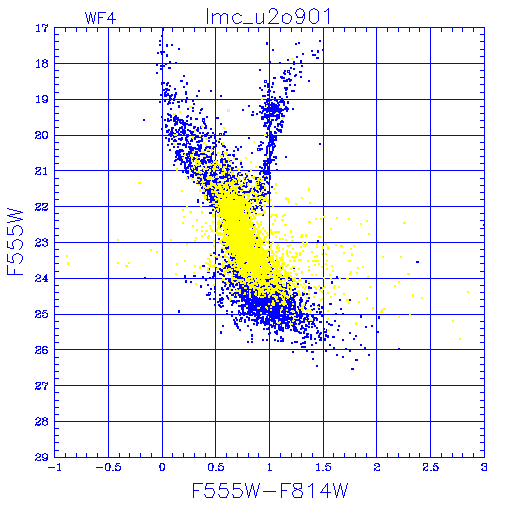

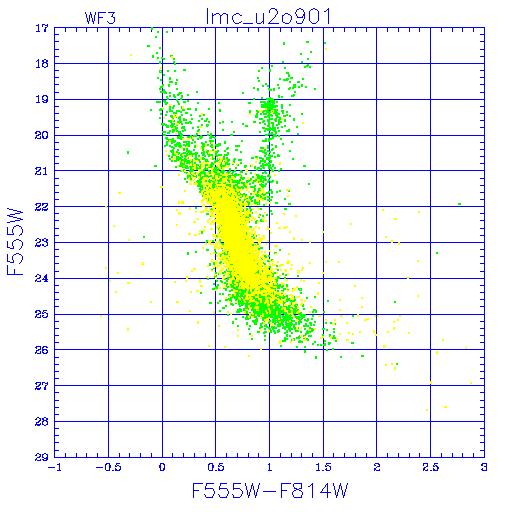

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4

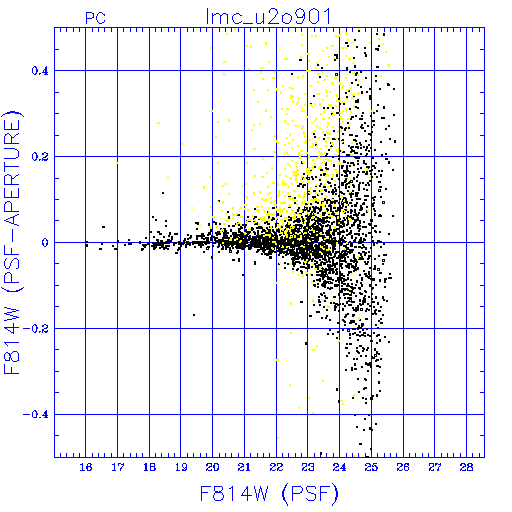

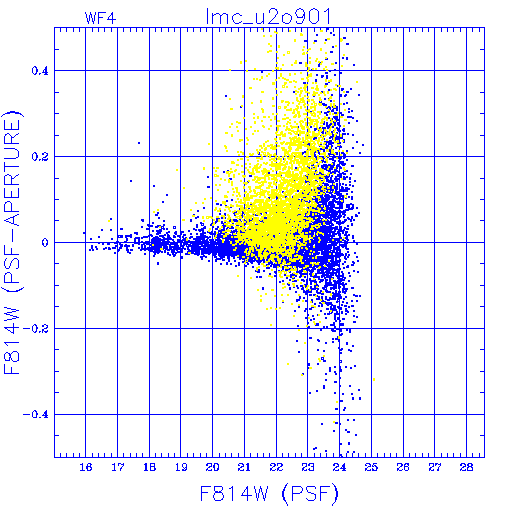

PSF

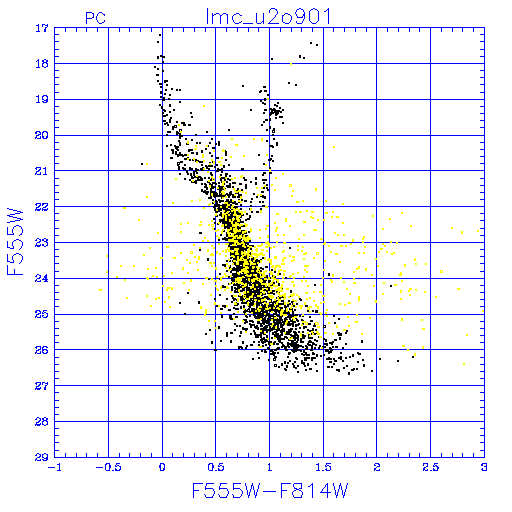

Aperture

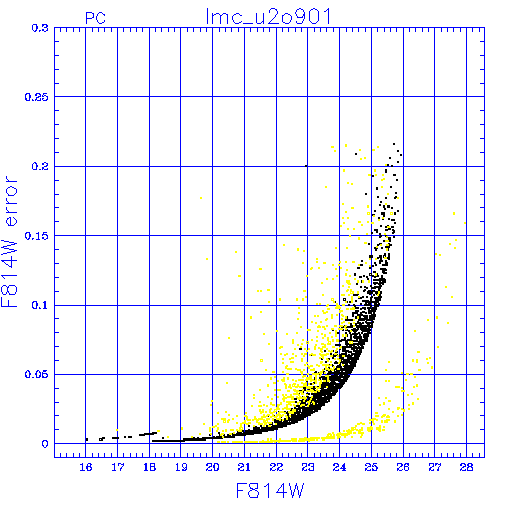

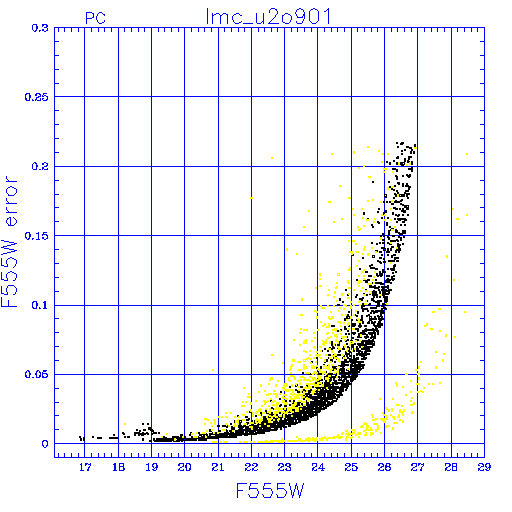

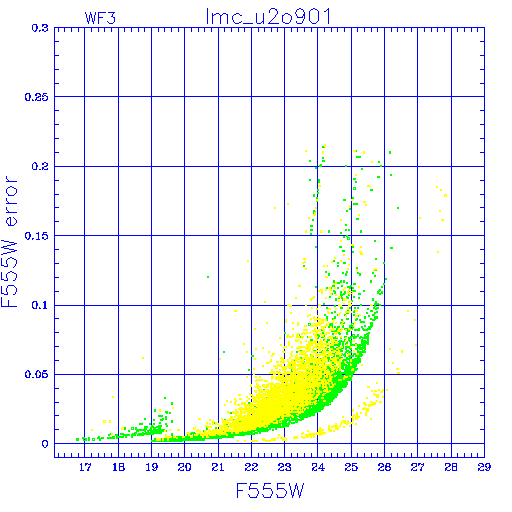

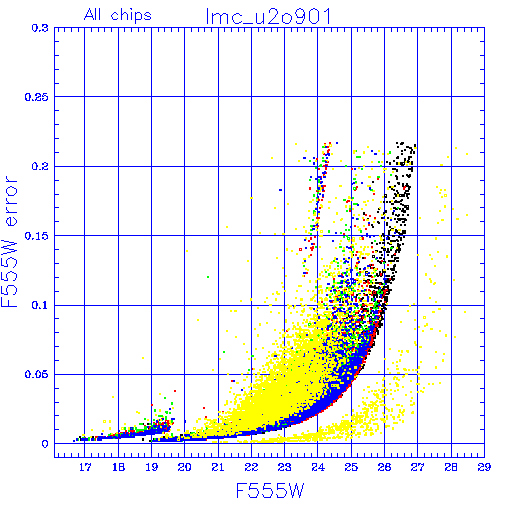

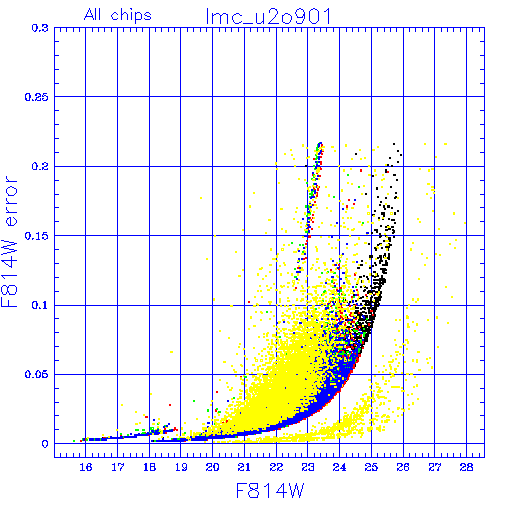

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

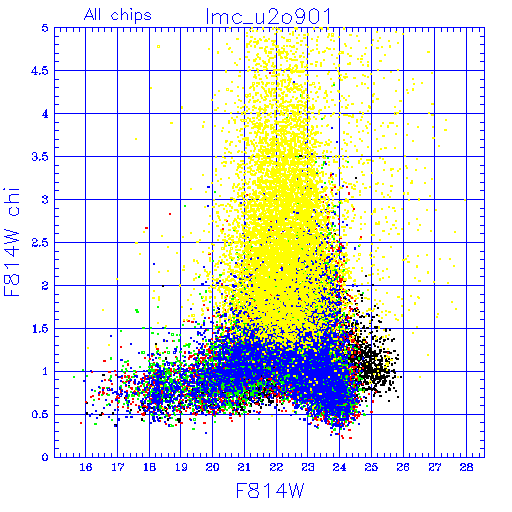

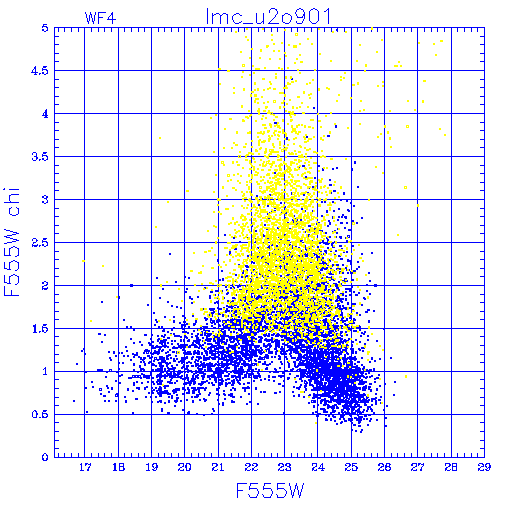

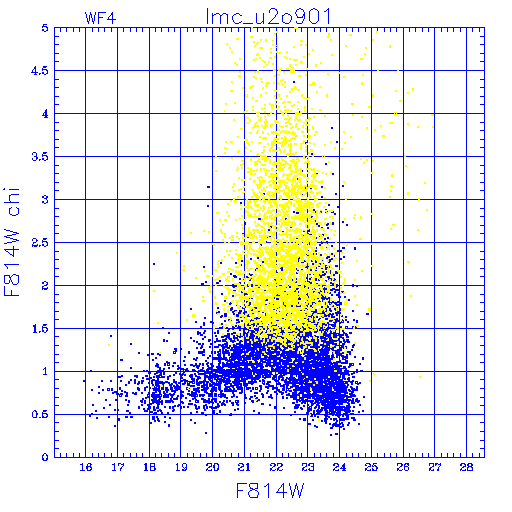

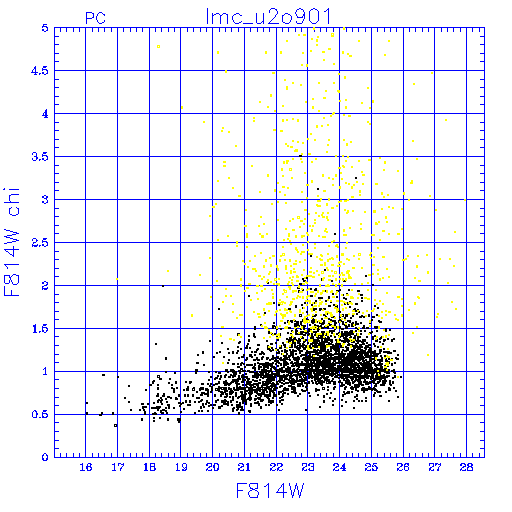

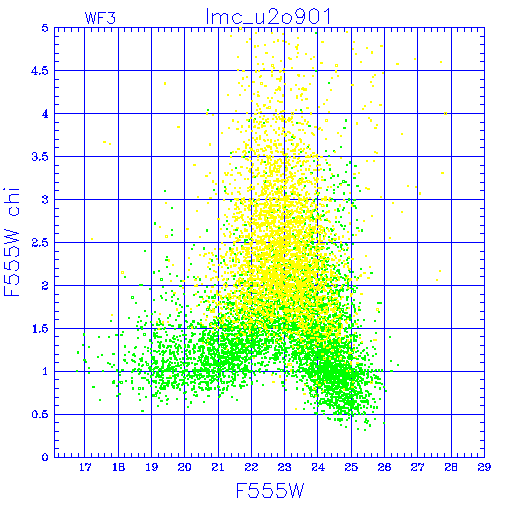

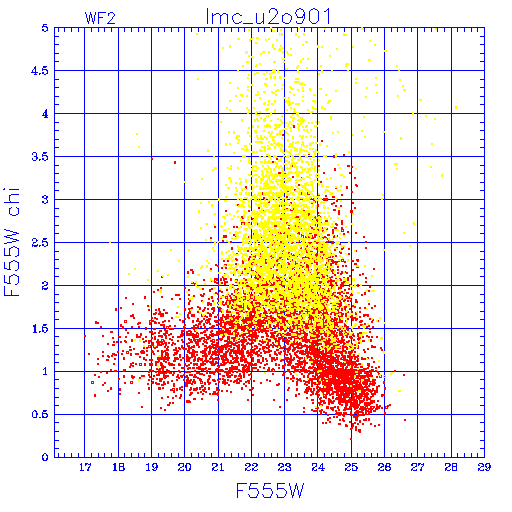

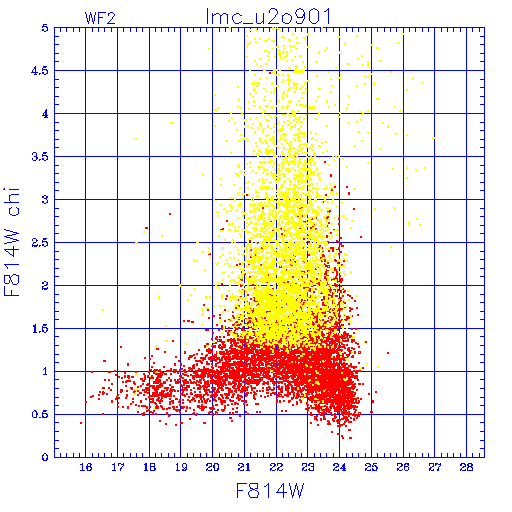

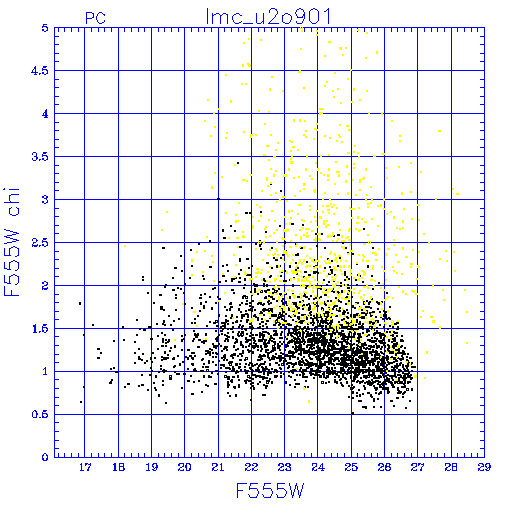

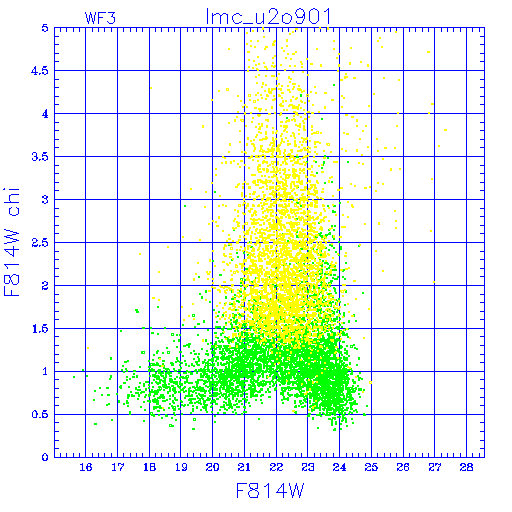

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

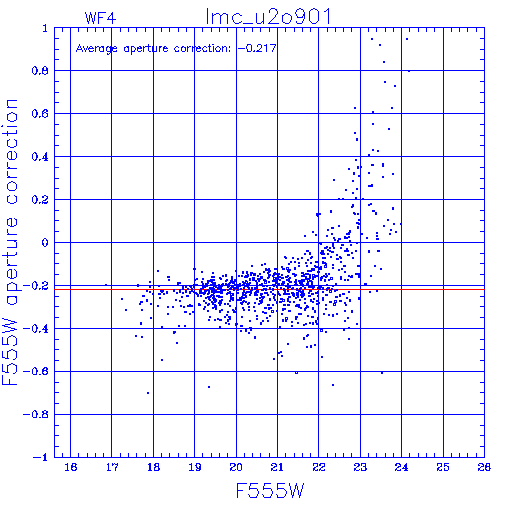

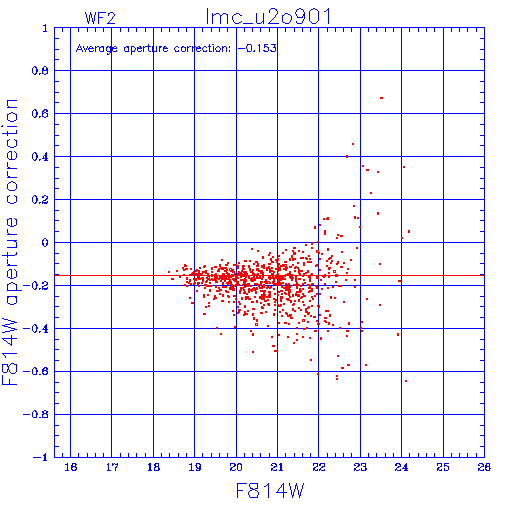

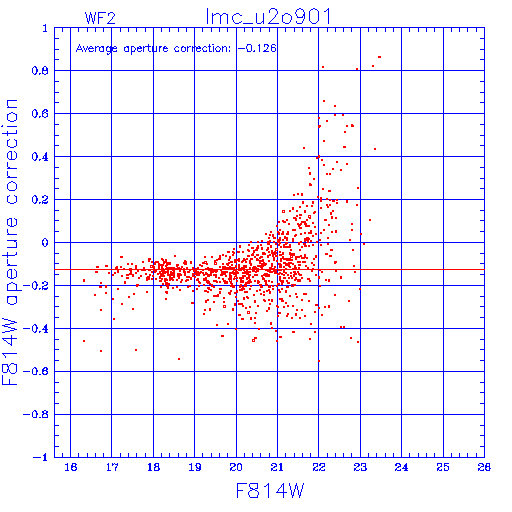

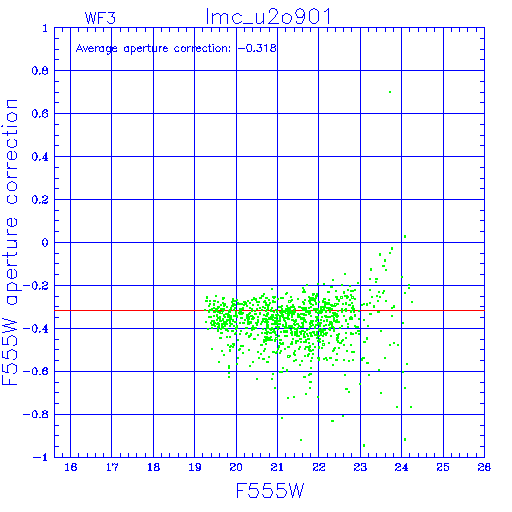

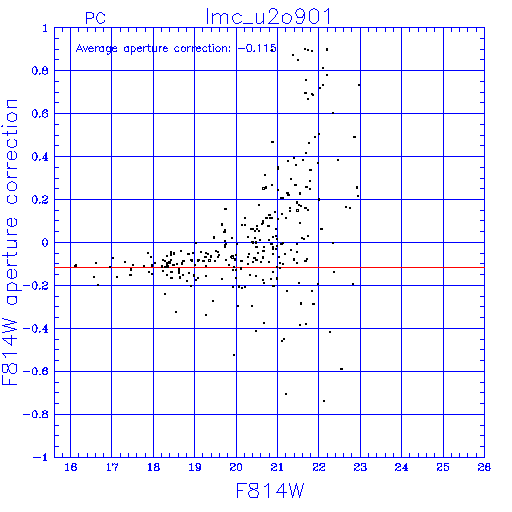

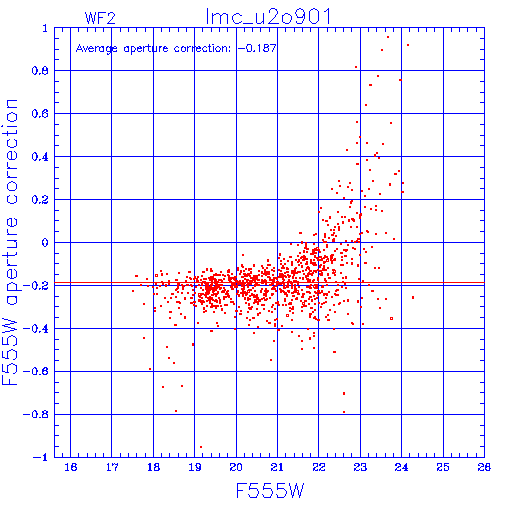

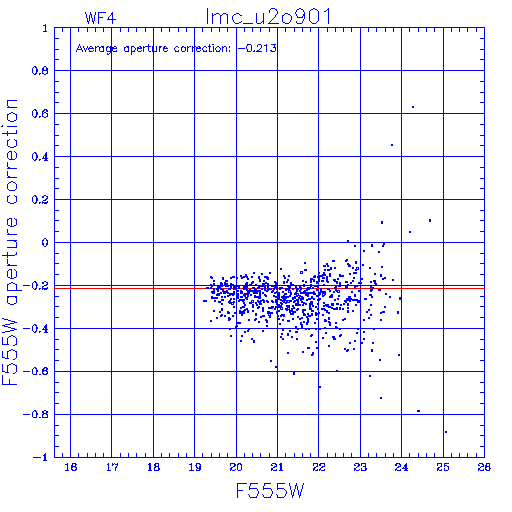

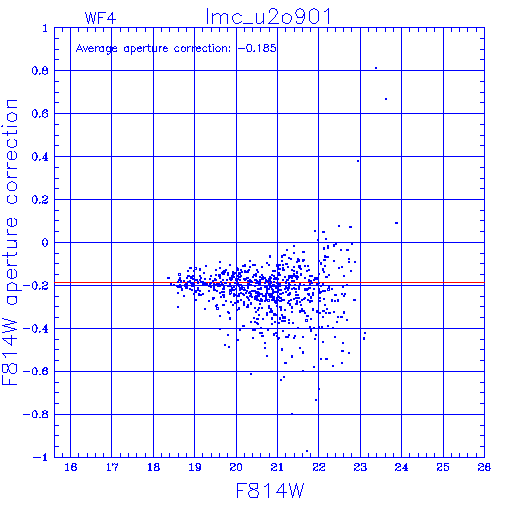

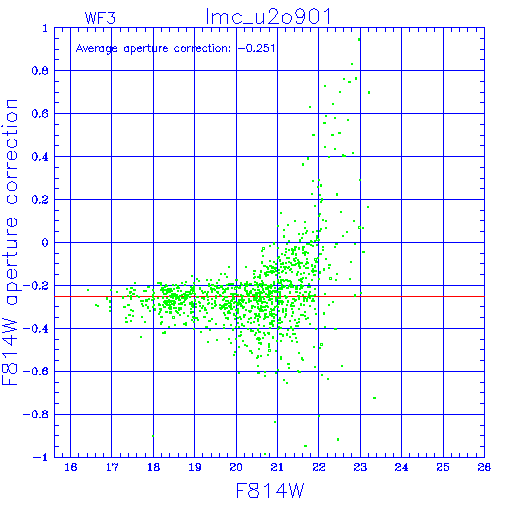

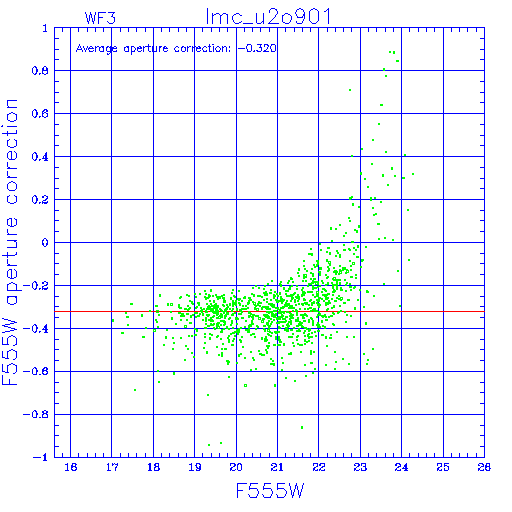

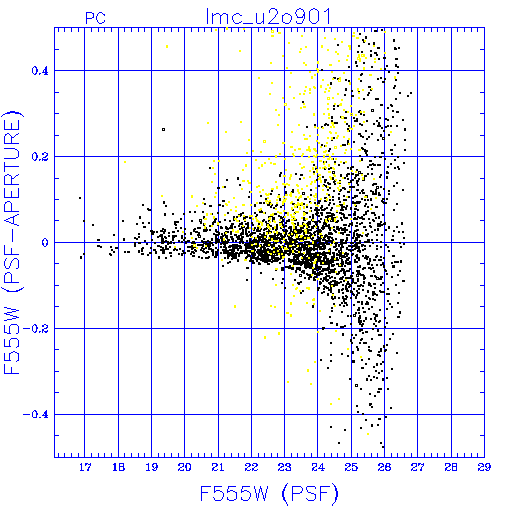

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
