Photometry Diagnostics for lmc_u2hw03

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u2hw0307t	F555W	1200.00	0.00	0.00	0.00	0.00	0.00	0.00
u2hw0308t	F555W	300.00	-0.05	0.02	0.00	0.00	-0.05	0.02
u2hw030ft	F814W	300.00	0.06	0.06	0.00	0.00	0.06	0.06
u2hw030gt	F814W	300.00	0.03	0.07	0.00	0.00	0.03	0.07
u2hw0301t	F255W	300.00	-1.44	0.39	0.00	0.00	-1.44	0.39
u2hw0302t	F255W	900.00	-1.53	0.43	0.00	0.00	-1.53	0.43
u2hw0303t	F336W	900.00	-0.59	-0.82	0.00	0.00	-0.59	-0.82
u2hw0304t	F336W	600.00	-0.62	-0.78	0.00	0.00	-0.62	-0.78
u2hw0305t	F439W	600.00	-0.34	-0.19	0.00	0.00	-0.34	-0.19
u2hw0306t	F439W	400.00	-0.29	-0.20	0.00	0.00	-0.29	-0.20
u2hw030dt	F675W	400.00	-0.66	1.09	0.00	0.00	-0.66	1.09
u2hw030et	F675W	300.00	-0.65	1.04	0.00	0.00	-0.65	1.04
u2hw030ht	F502N	300.00	-0.57	0.25	0.00	0.00	-0.57	0.25
u2hw030it	F502N	1200.00	-0.40	0.23	0.00	0.00	-0.40	0.23
u2hw030jt	F502N	1200.00	-0.39	0.16	0.00	0.00	-0.39	0.16
u2hw030kt	F502N	1200.00	-0.48	0.17	0.00	0.00	-0.48	0.17
u2hw0309t	F658N	1200.00	-0.29	-0.05	0.00	0.00	-0.29	-0.05
u2hw030at	F658N	1200.00	-0.13	-0.07	0.00	0.00	-0.13	-0.07
u2hw030bt	F658N	1200.00	-0.15	-0.14	0.00	0.00	-0.15	-0.14
u2hw030ct	F658N	1200.00	-0.23	-0.11	0.00	0.00	-0.23	-0.11

Mosaic images

F555W	F814W	F255W	F336W	F439W	F675W	F502N	F658N

HSTPHOT command log

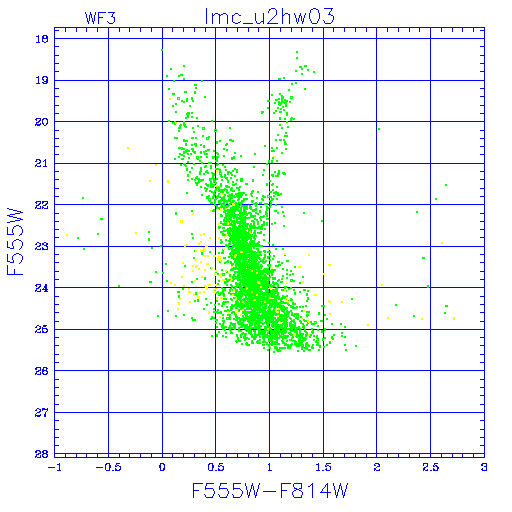

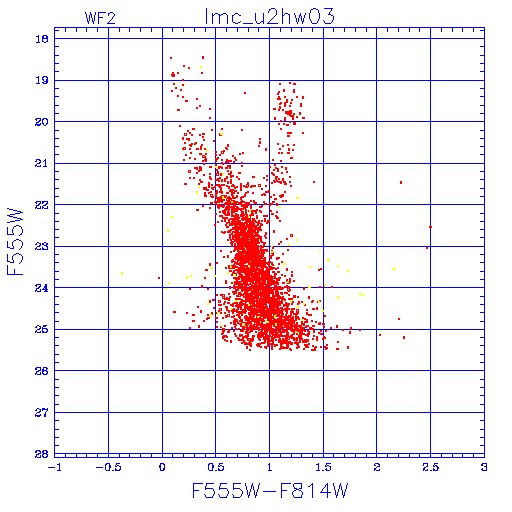

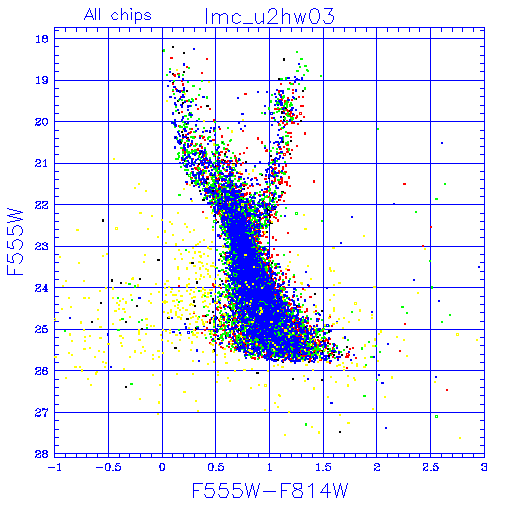

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4

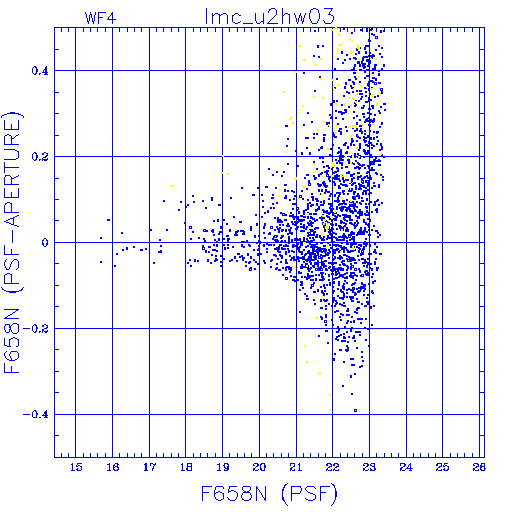

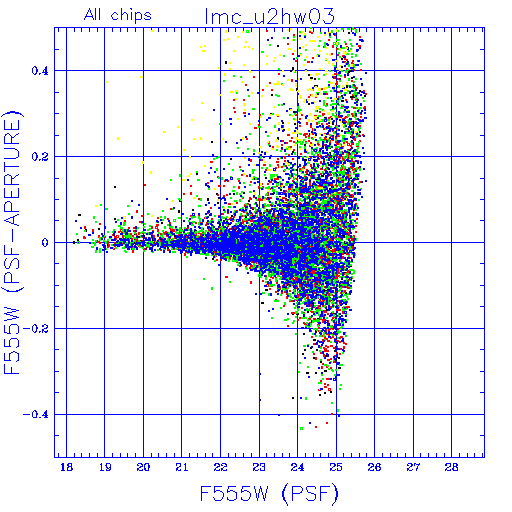

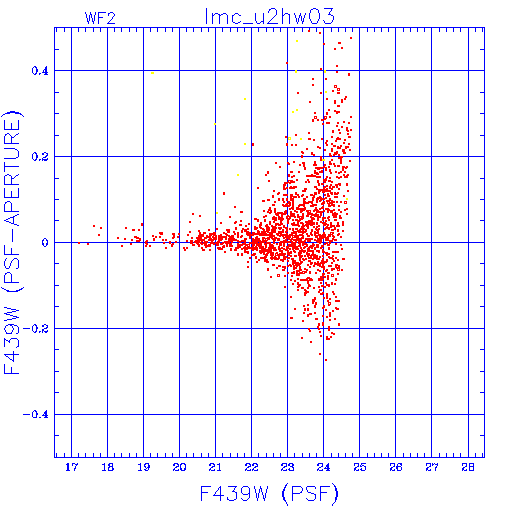

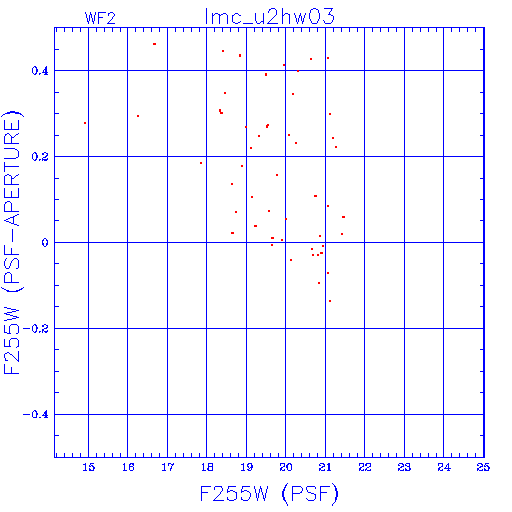

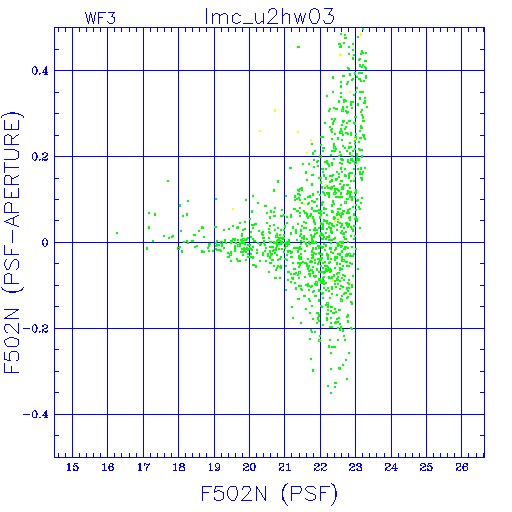

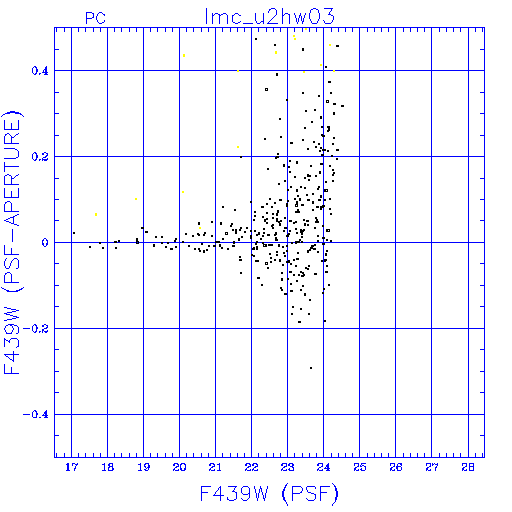

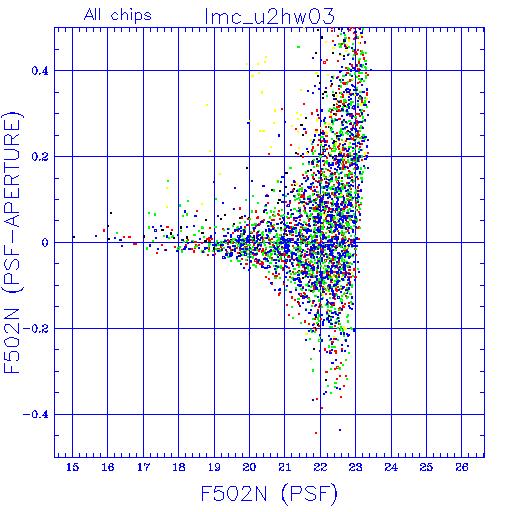

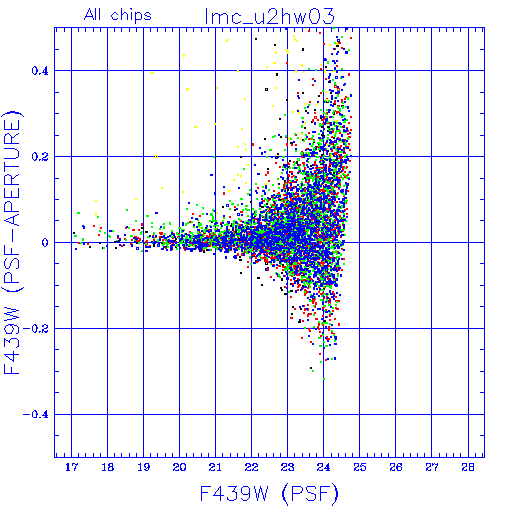

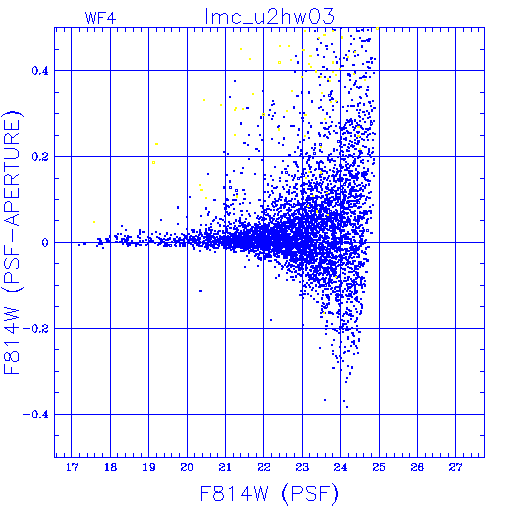

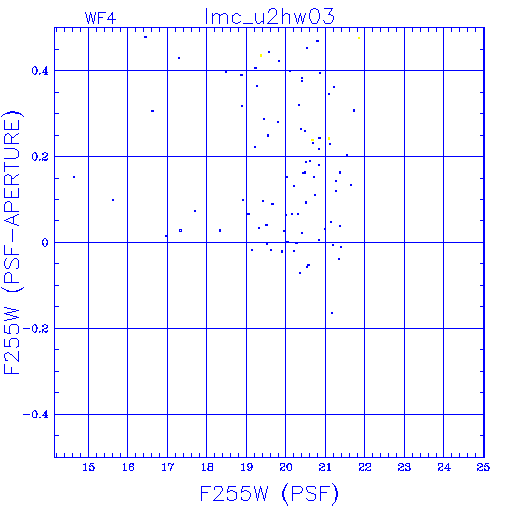

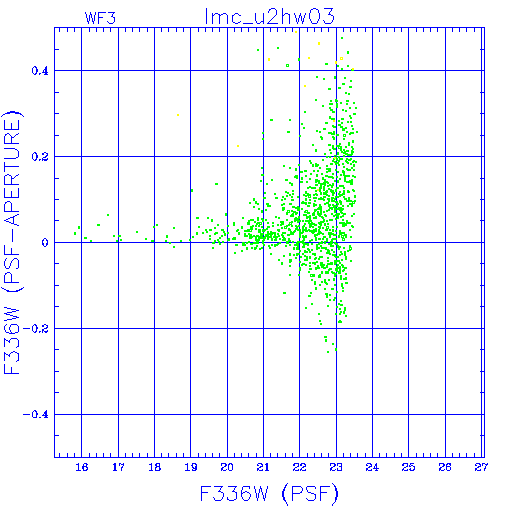

PSF
Aperture

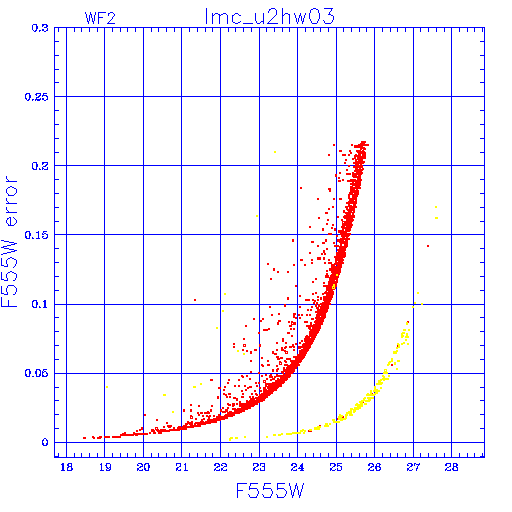

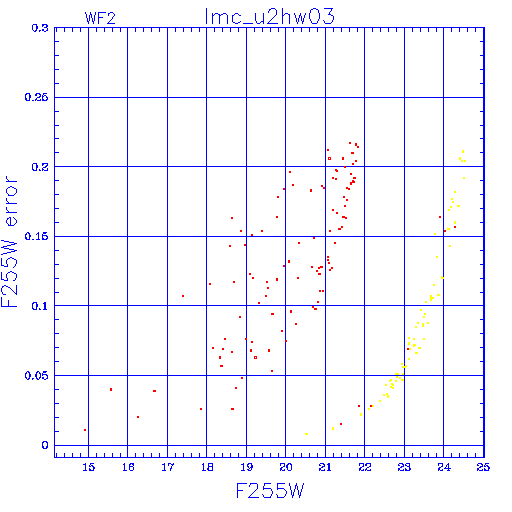

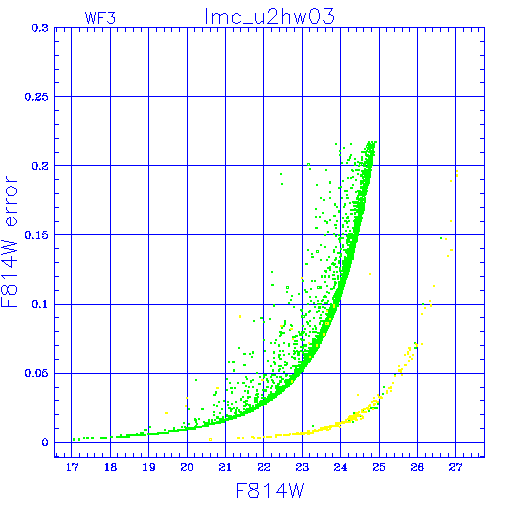

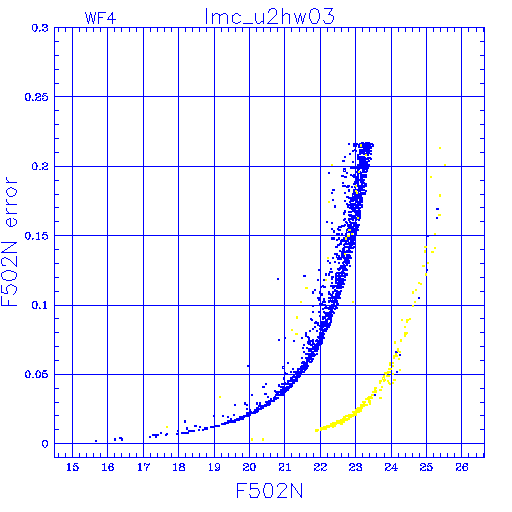

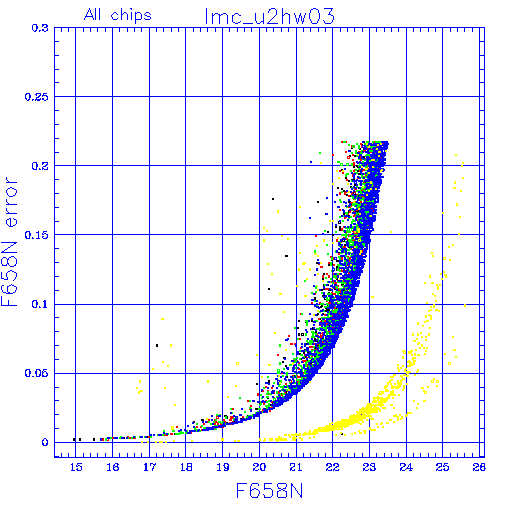

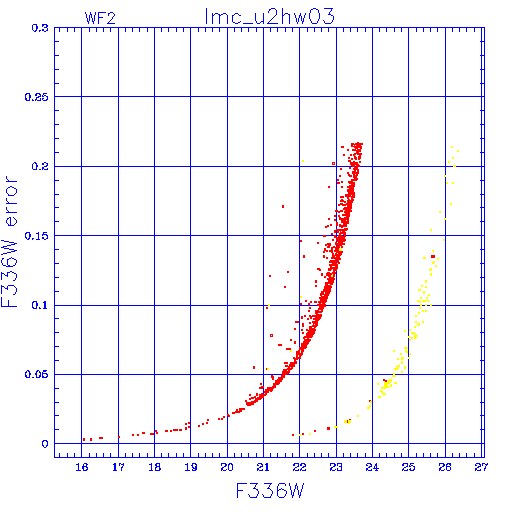

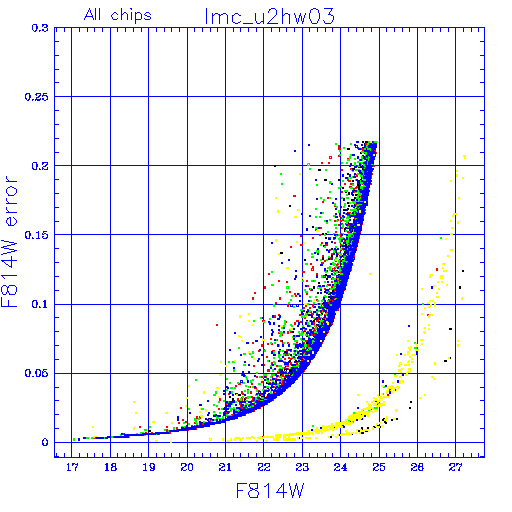

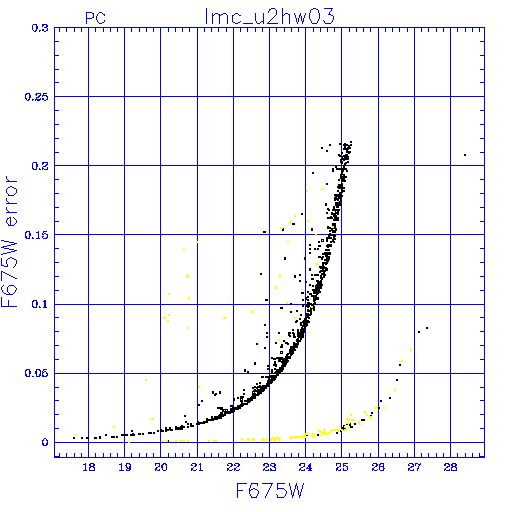

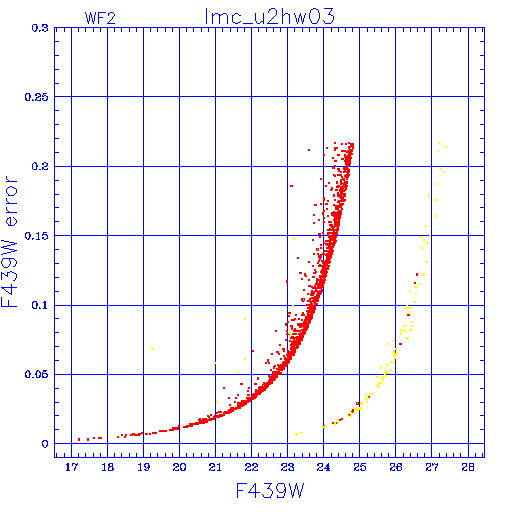

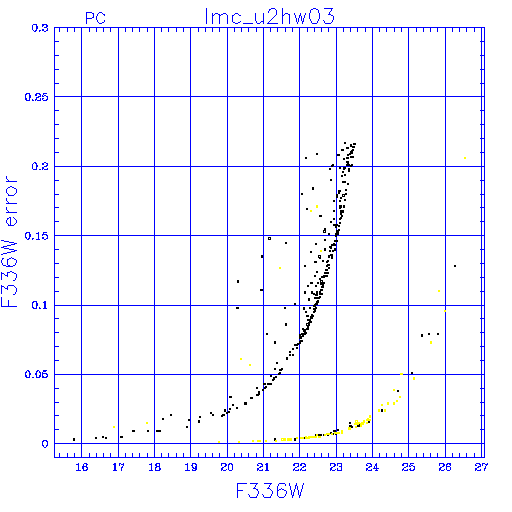

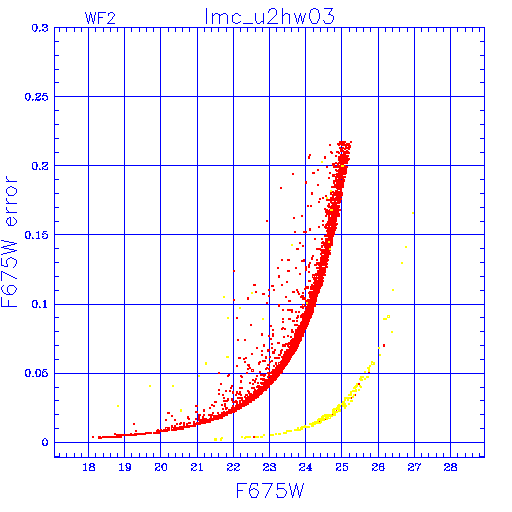

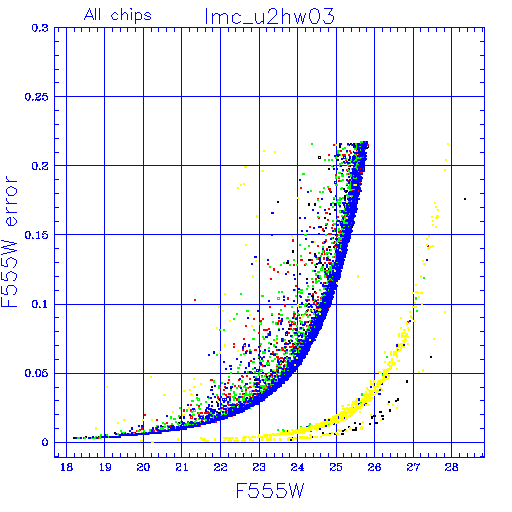

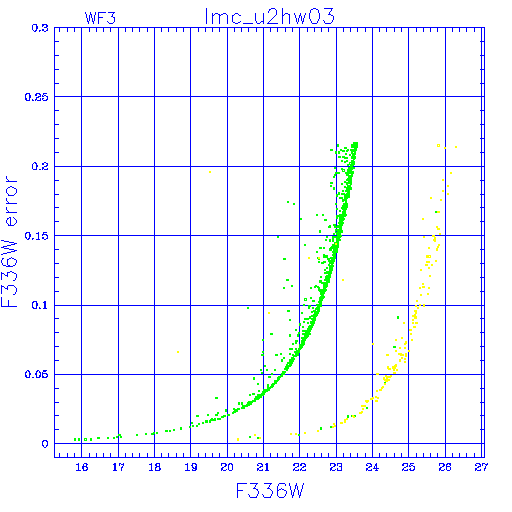

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w
f255w
f336w
f439w
f675w
f502n
f658n

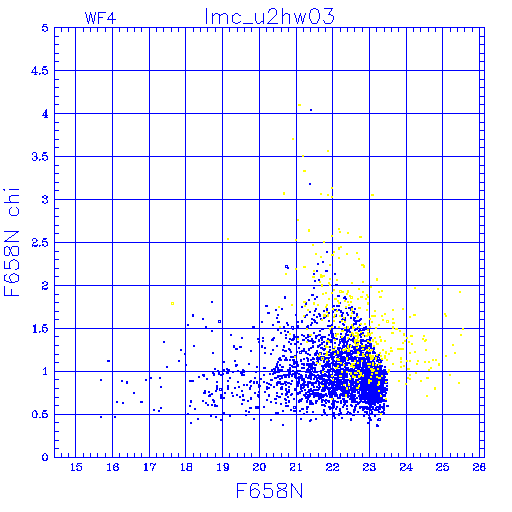

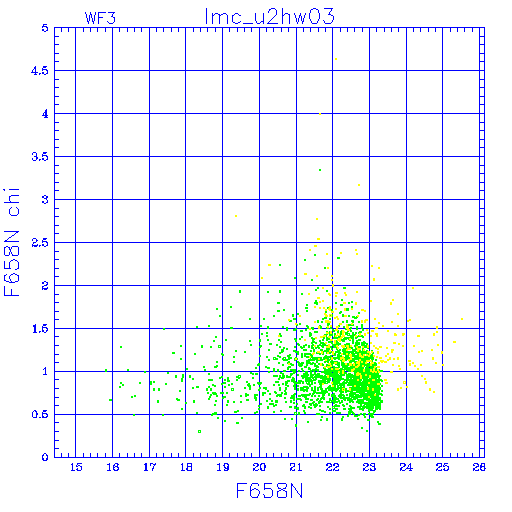

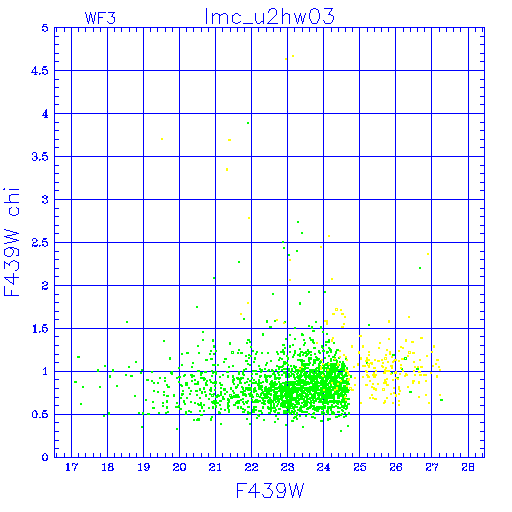

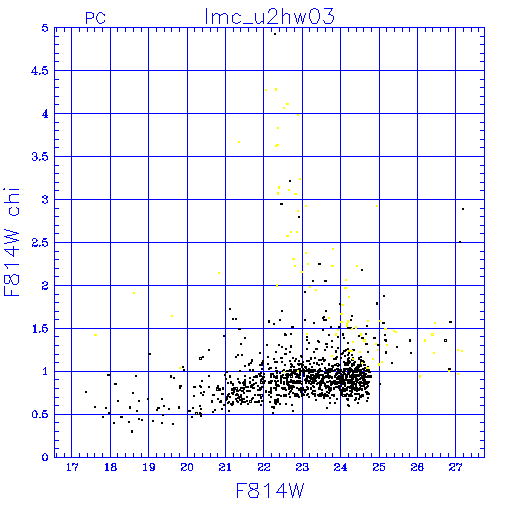

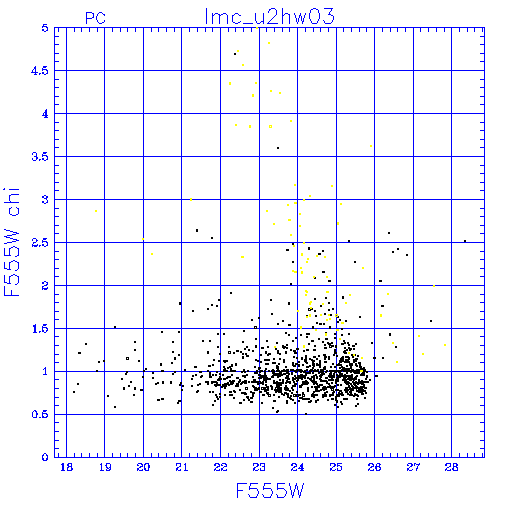

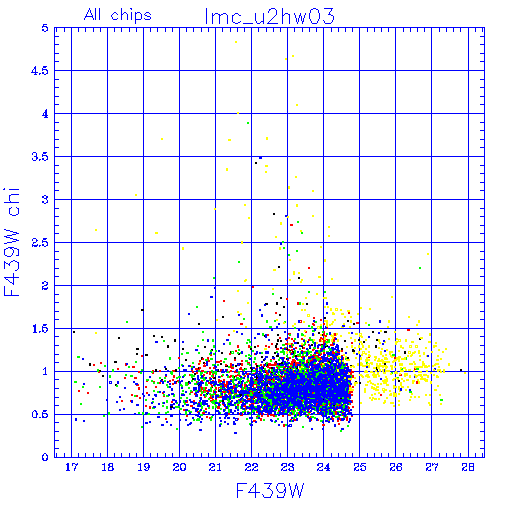

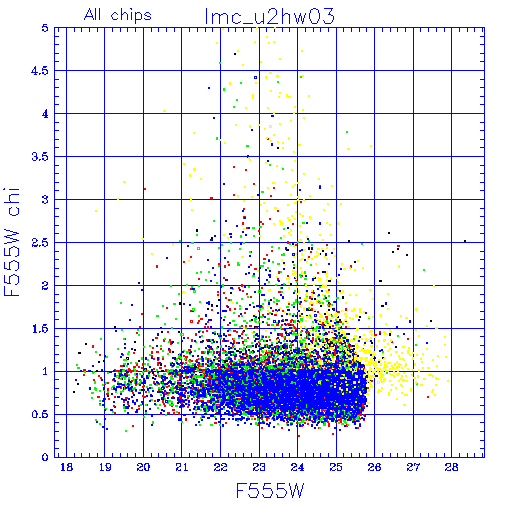

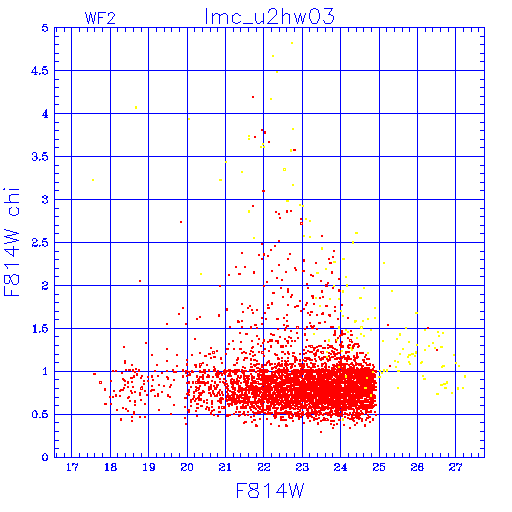

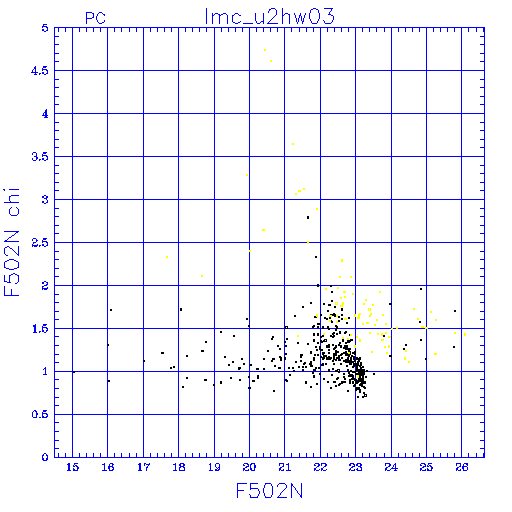

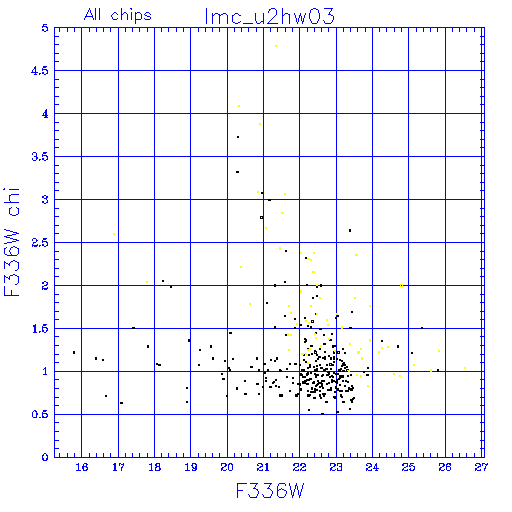

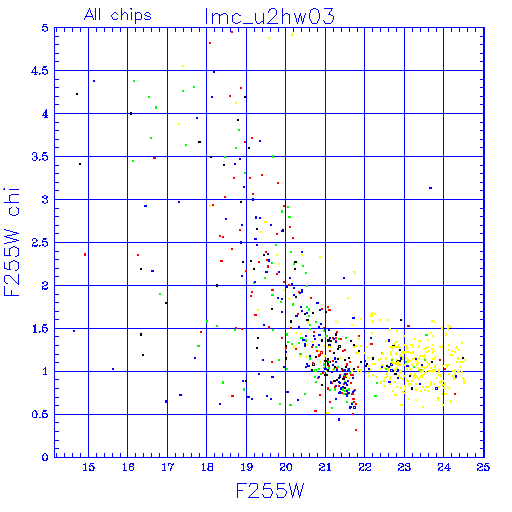

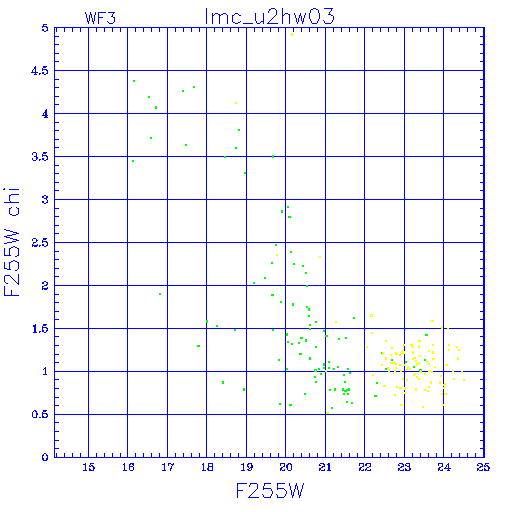

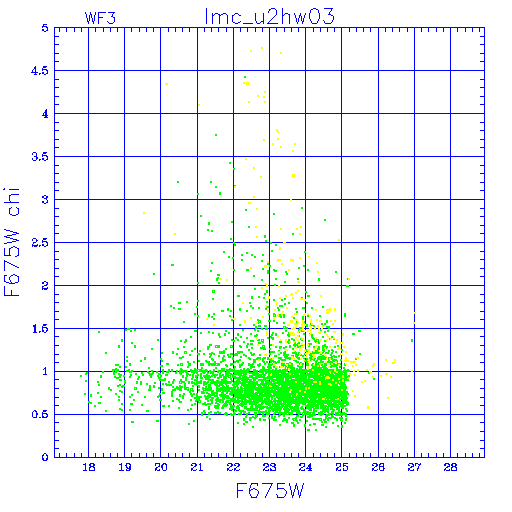

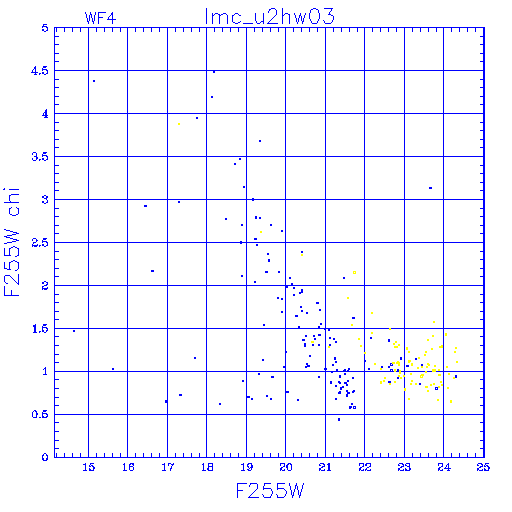

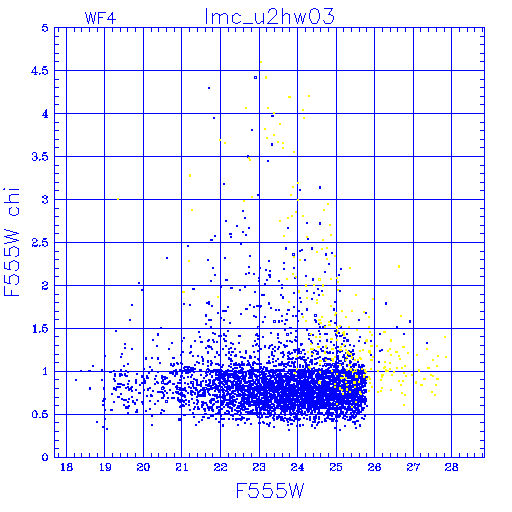

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w
f255w
f336w
f439w
f675w
f502n
f658n

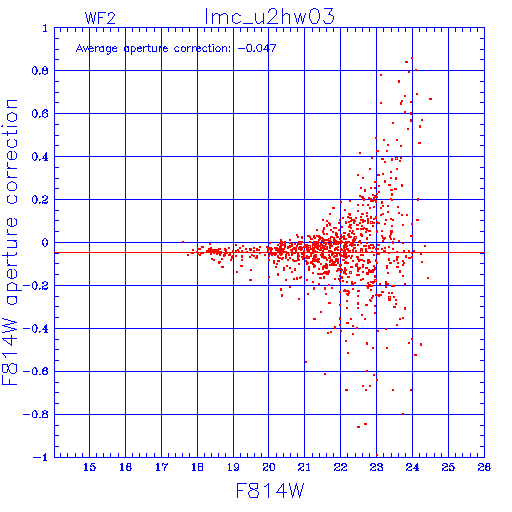

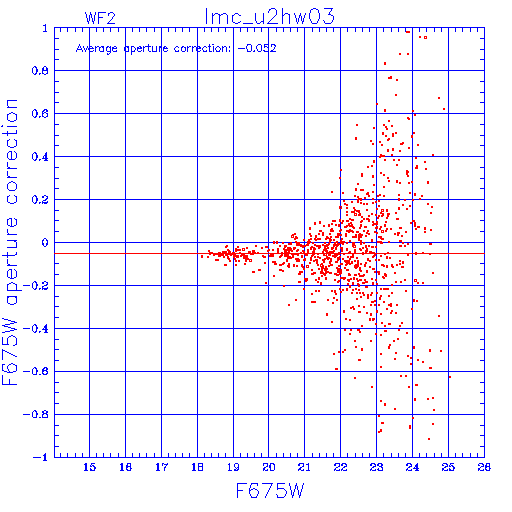

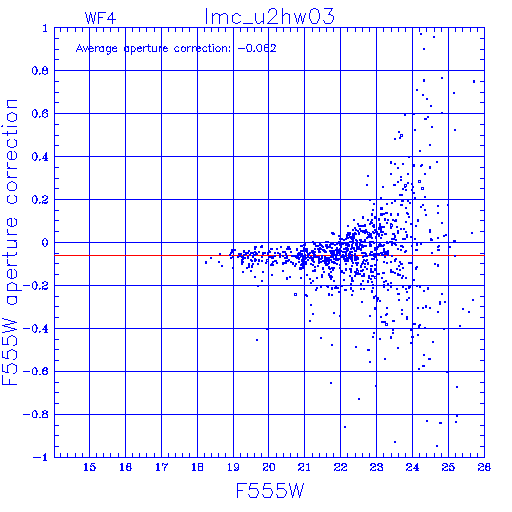

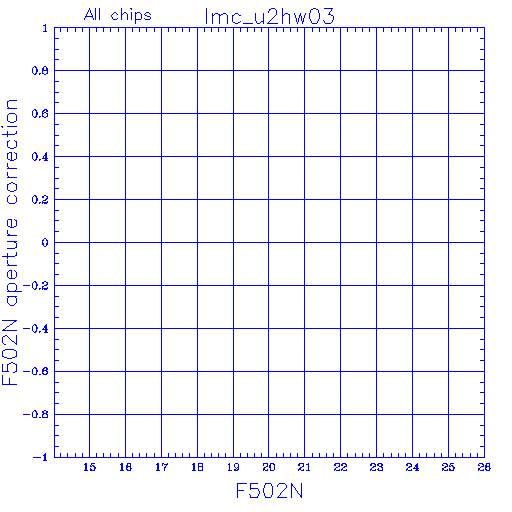

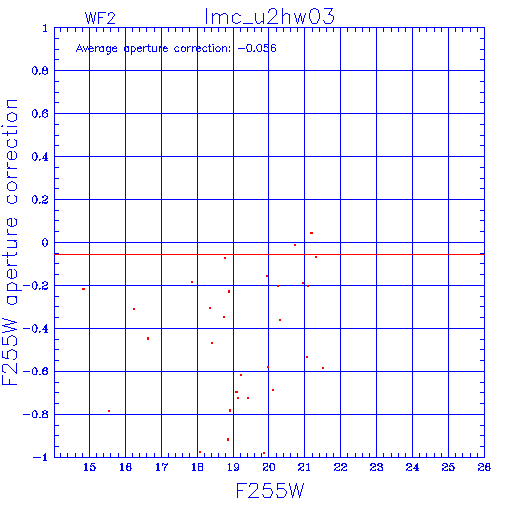

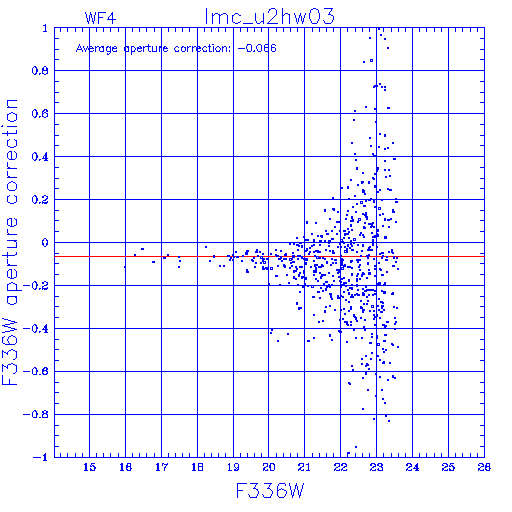

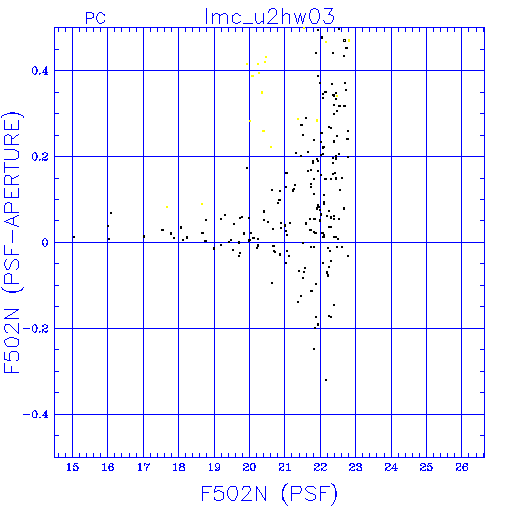

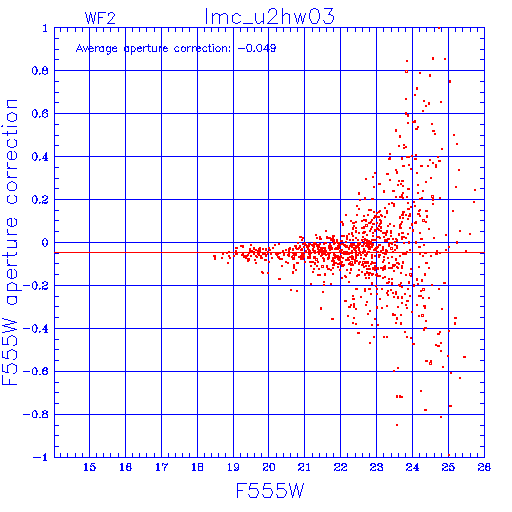

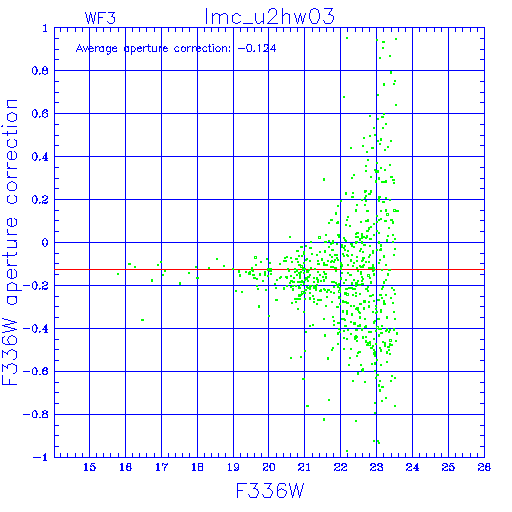

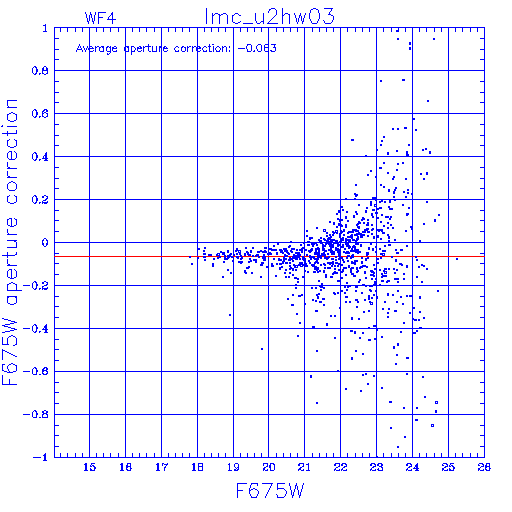

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
