Photometry Diagnostics for lmc_u2c501

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u2c50101t	F555W	1000.00	0.00	0.00	0.00	0.00	0.00	0.00
u2c50102t	F555W	1000.00	-0.02	-0.02	0.00	0.00	-0.02	-0.02
u2c50103t	F555W	1000.00	0.03	-0.10	0.00	0.00	0.03	-0.10
u2c50104t	F555W	600.00	-0.05	0.01	0.00	0.00	-0.05	0.01
u2c50105t	F814W	1400.00	0.04	0.03	0.00	0.00	0.04	0.03
u2c50106t	F814W	1400.00	0.04	0.04	0.00	0.00	0.04	0.04
u2c50107t	F814W	600.00	0.05	0.05	0.00	0.00	0.05	0.05
u2c50108t	F814W	1000.00	0.03	0.03	0.00	0.00	0.03	0.03

Mosaic images

F555W	F814W

HSTPHOT command log

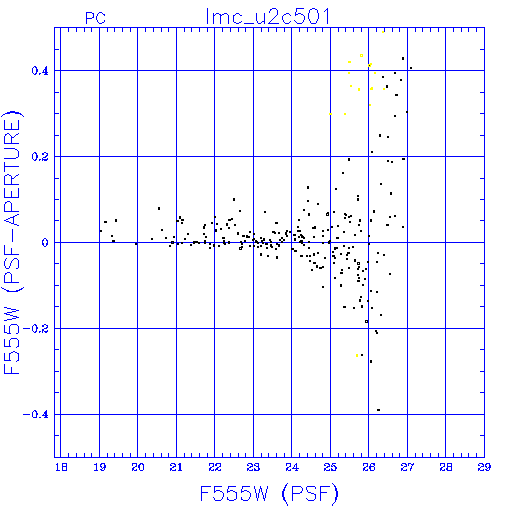

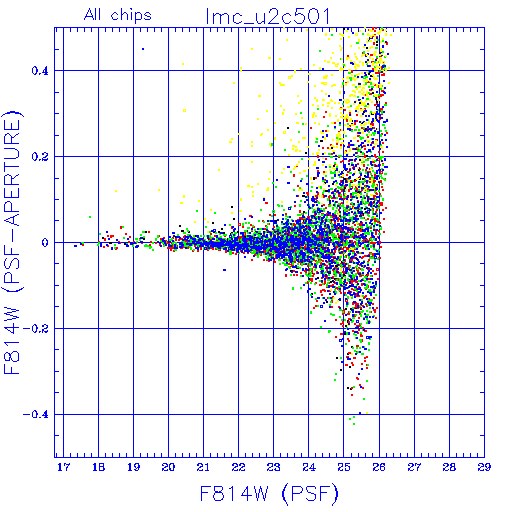

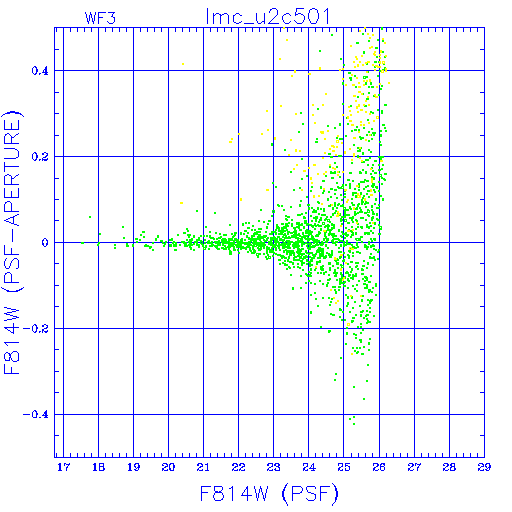

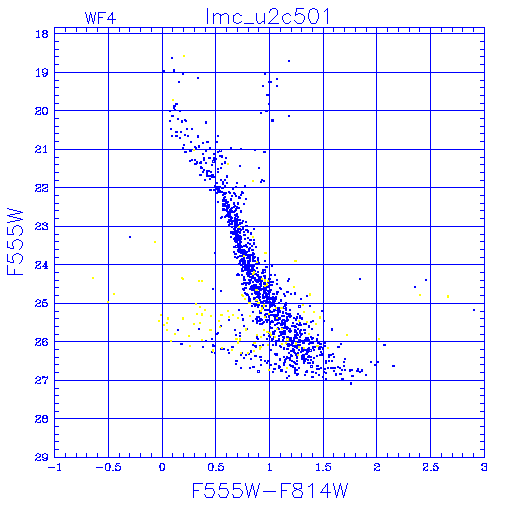

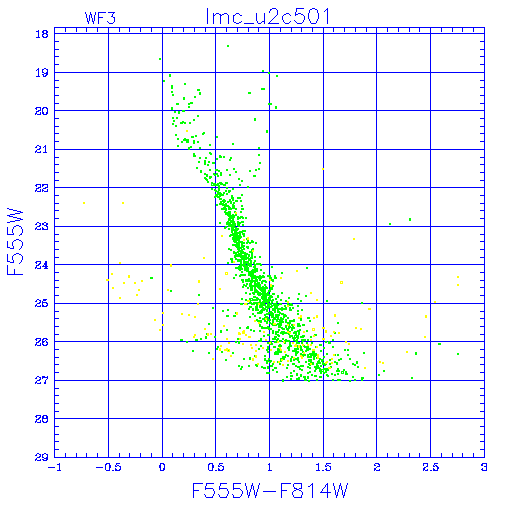

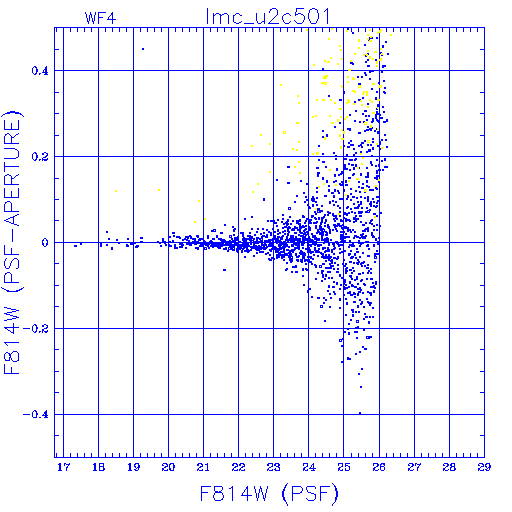

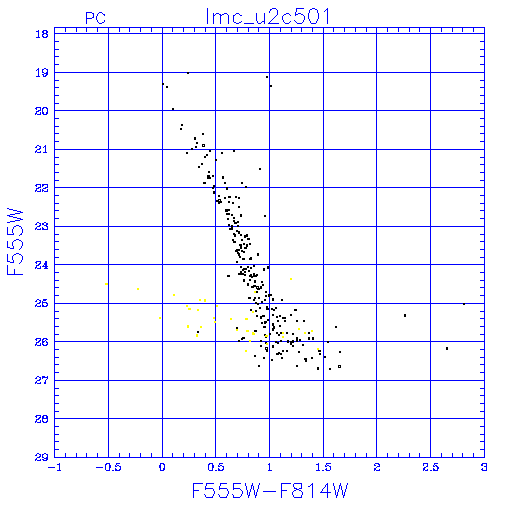

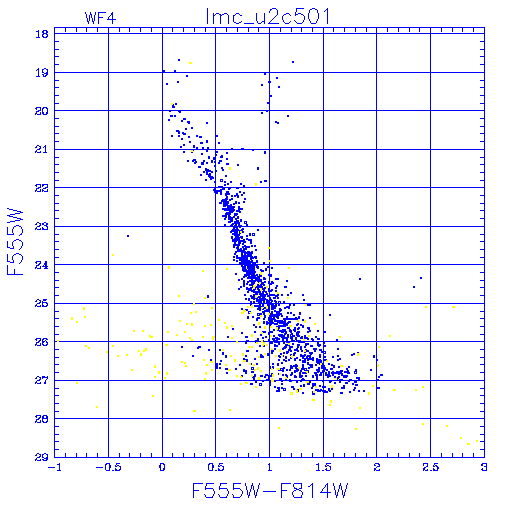

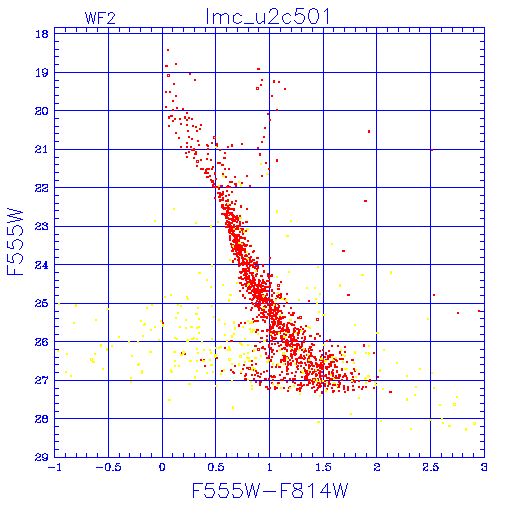

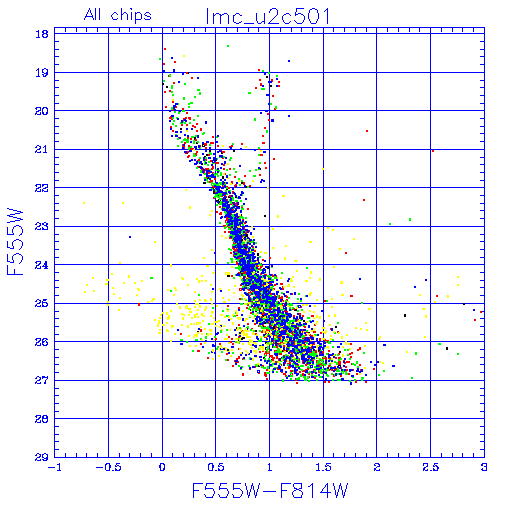

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4

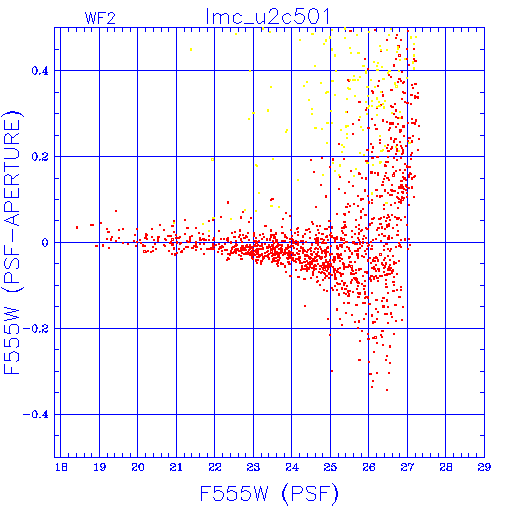

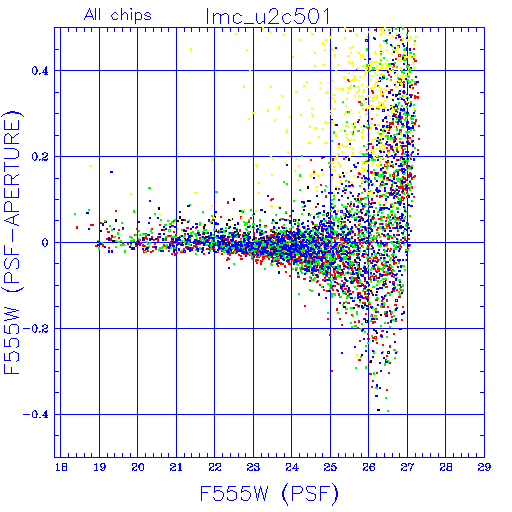

PSF
Aperture

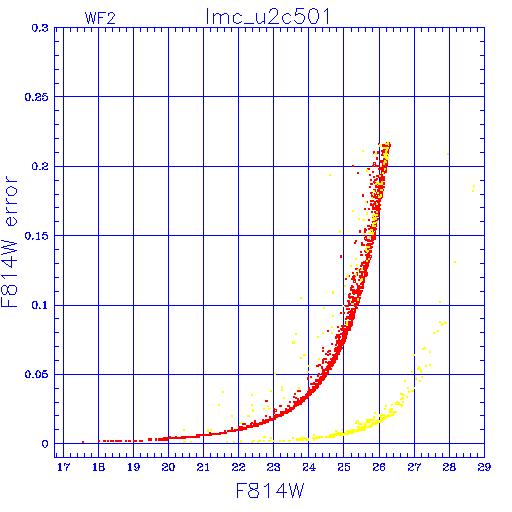

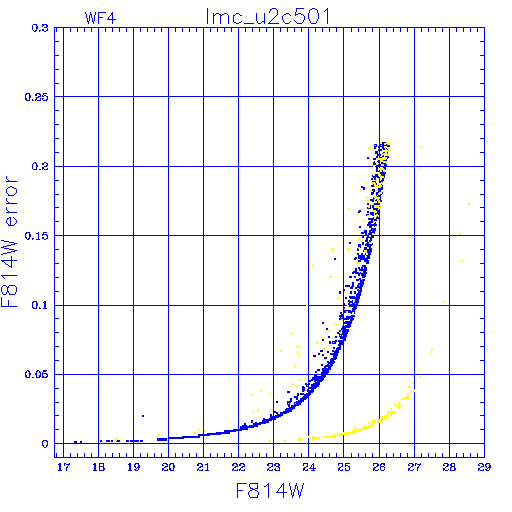

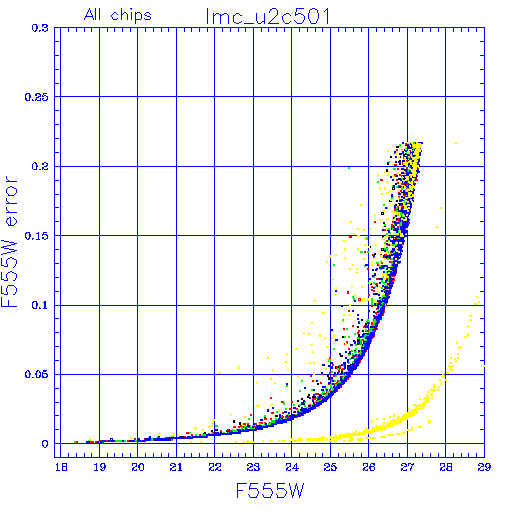

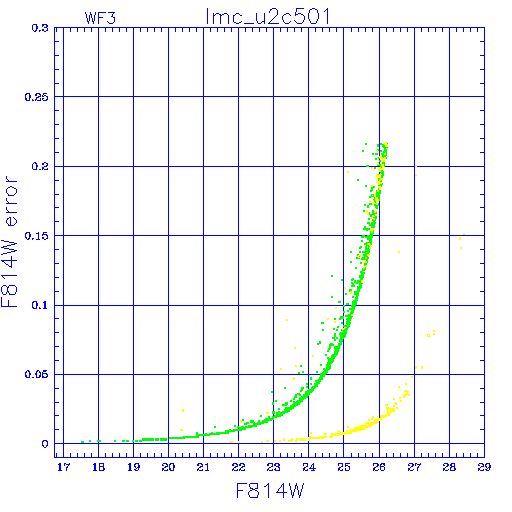

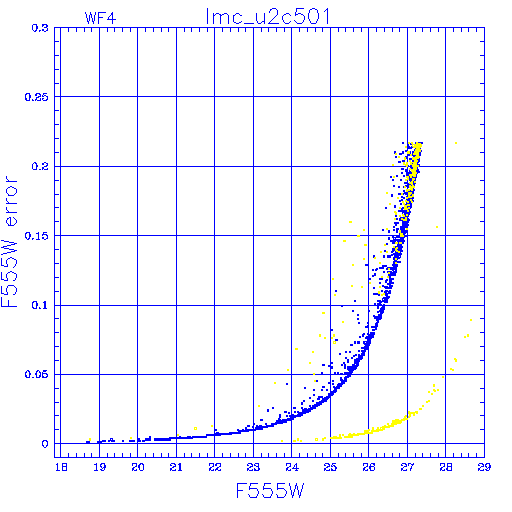

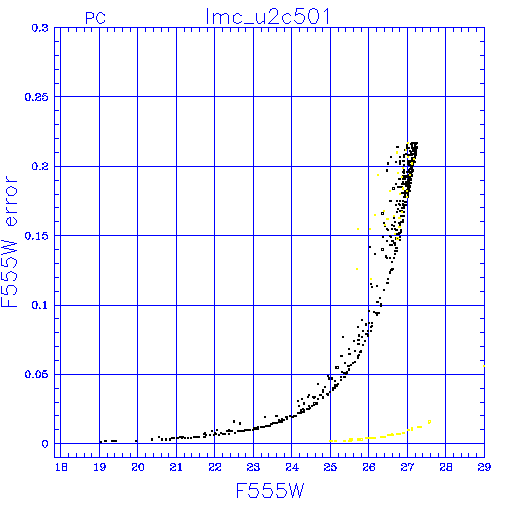

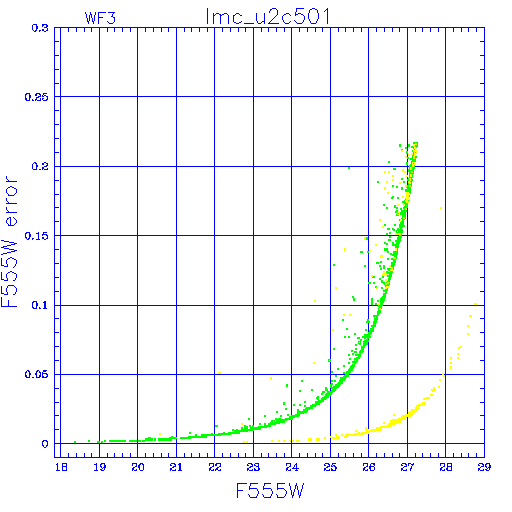

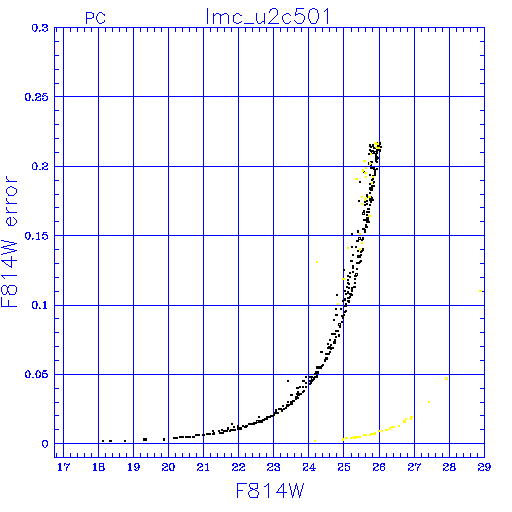

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

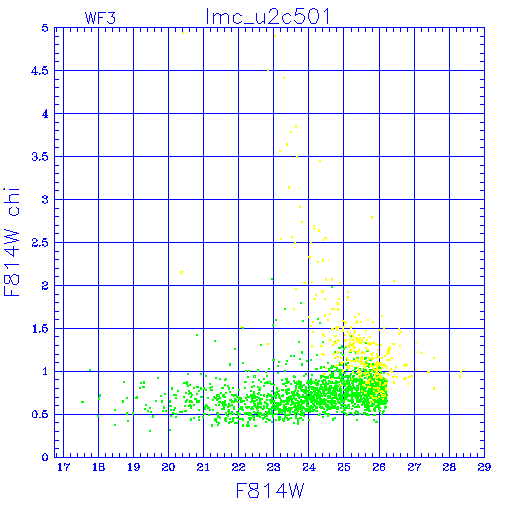

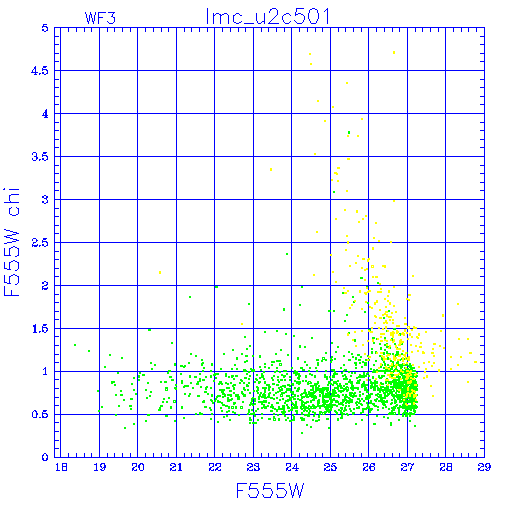

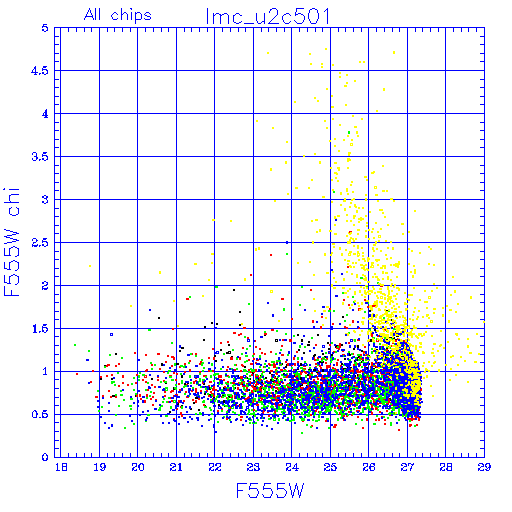

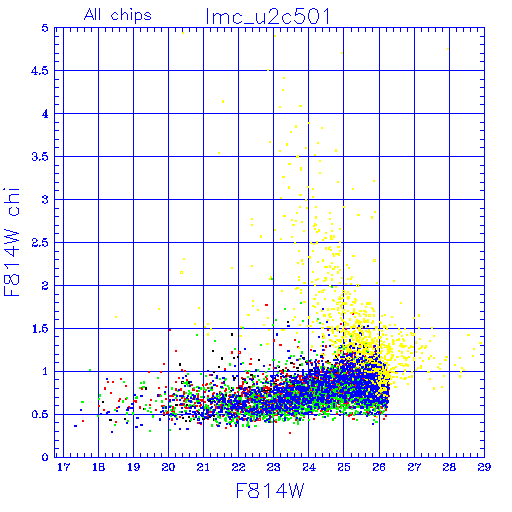

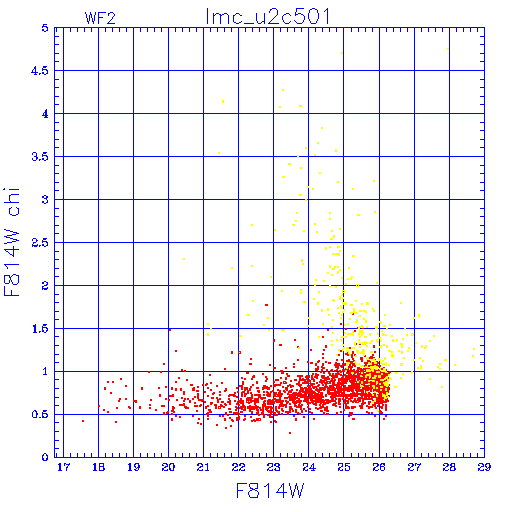

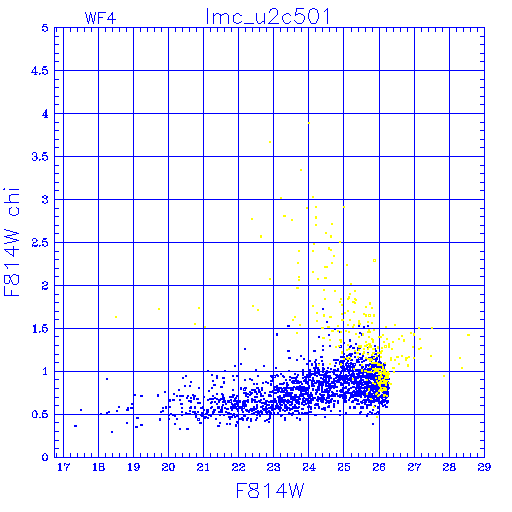

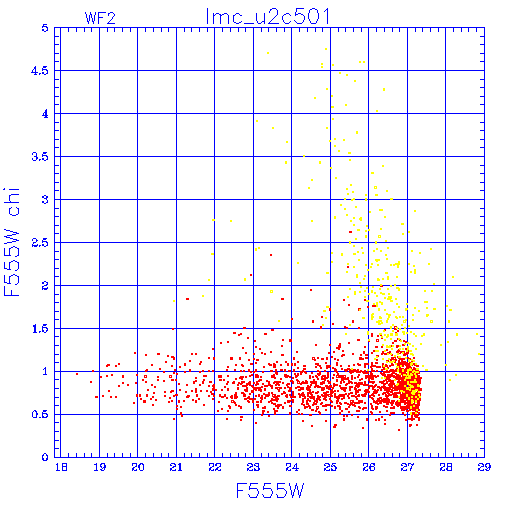

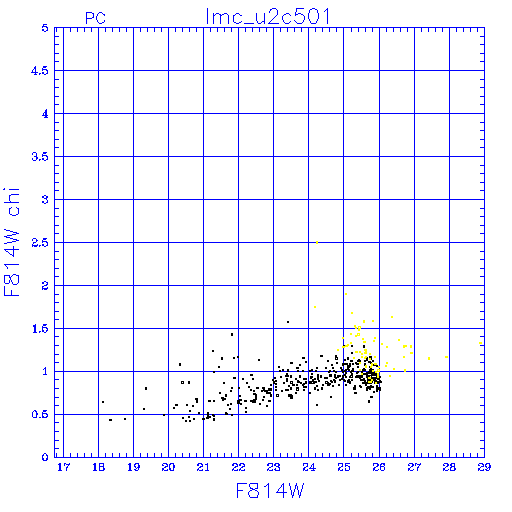

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

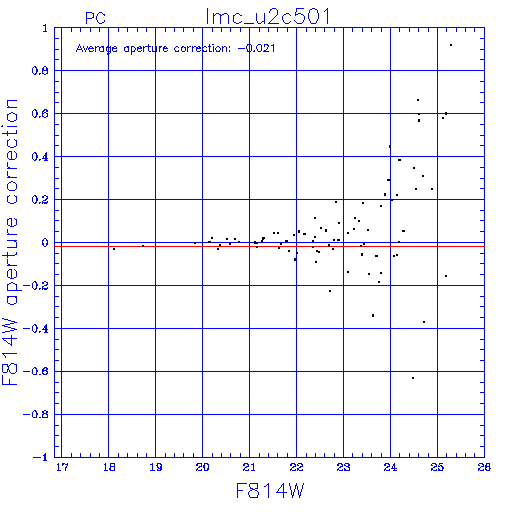

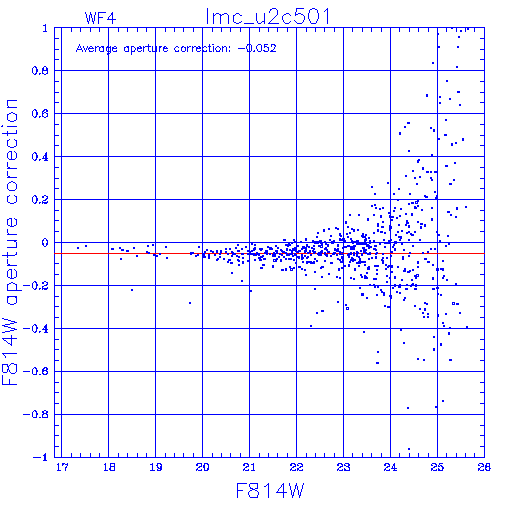

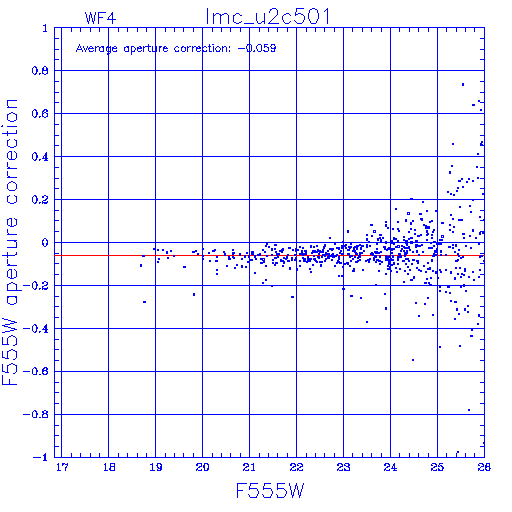

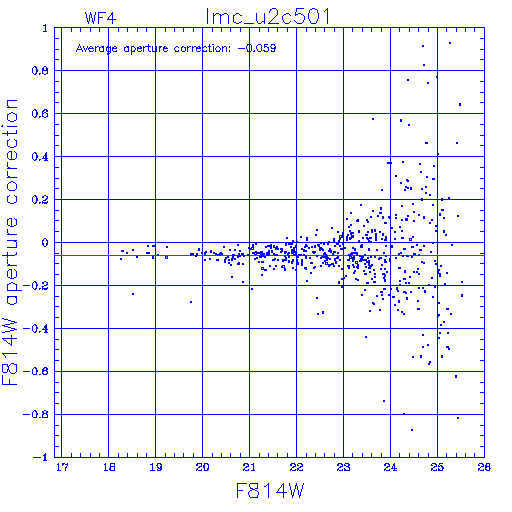

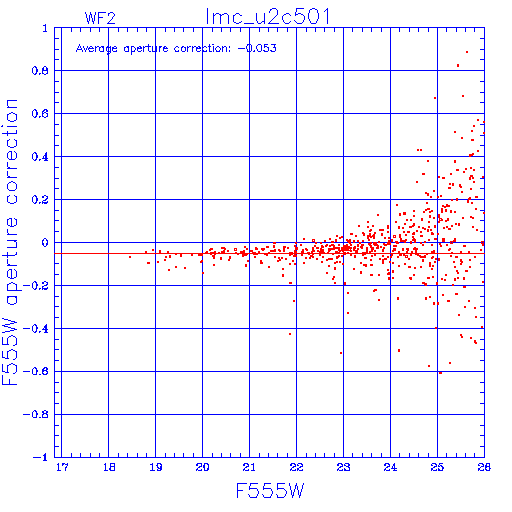

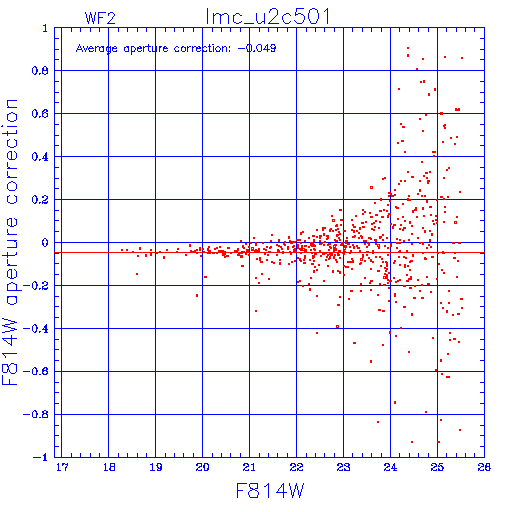

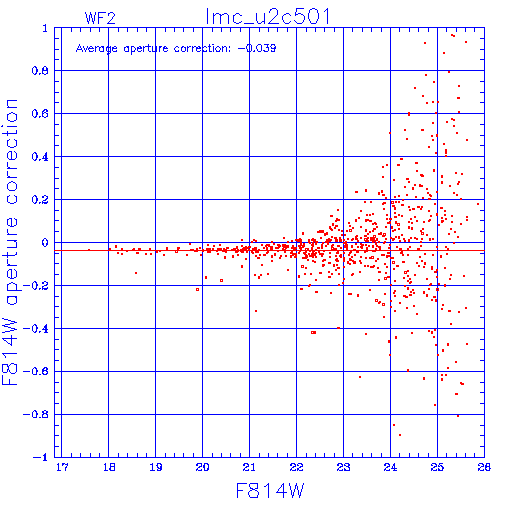

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
