Photometry Diagnostics for lmc_u23z05

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u23z050dt	F555W	60.00	0.00	0.00	0.00	0.00	0.00	0.00
u23z050et	F555W	60.00	0.00	0.00	0.00	0.00	0.00	0.00
u23z0509t	F814W	60.00	0.00	0.00	0.00	0.00	0.00	0.00
u23z050at	F814W	1.00	0.00	0.00	0.00	0.00	0.00	0.00
u23z0507t	F547M	1.00	-0.04	0.00	0.00	0.00	-0.04	0.00
u23z0508t	F547M	30.00	-0.04	0.00	0.00	0.00	-0.04	0.00
u23z0505t	F656N	30.00	0.00	0.00	0.00	0.00	0.00	0.00
u23z0506t	F656N	60.00	0.00	0.00	0.00	0.00	0.00	0.00
u23z0503t	F502N	60.00	0.00	0.00	0.00	0.00	0.00	0.00
u23z0504t	F502N	40.00	0.00	0.00	0.00	0.00	0.00	0.00

Mosaic images

F555W	F814W	F547M	F656N	F502N

HSTPHOT command log

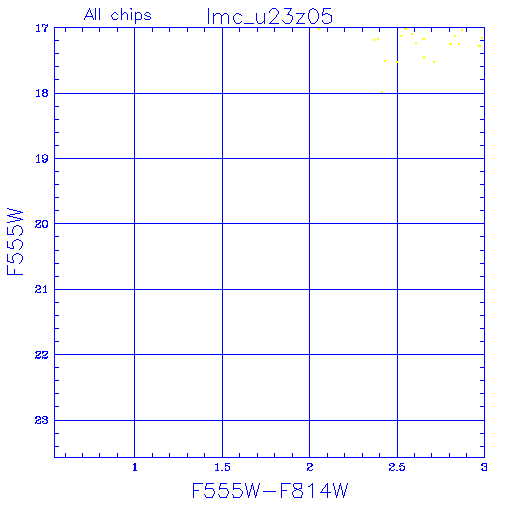

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4
PSF
Aperture

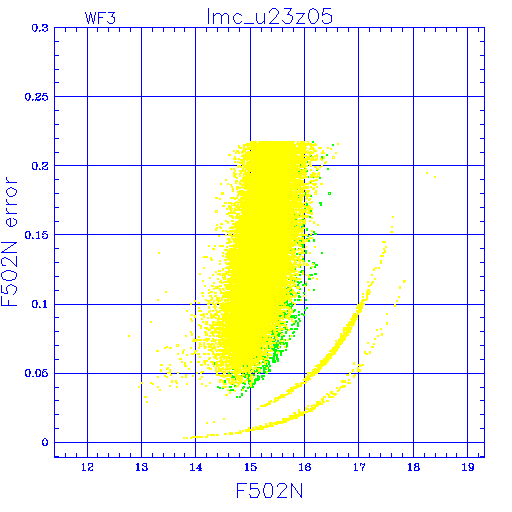

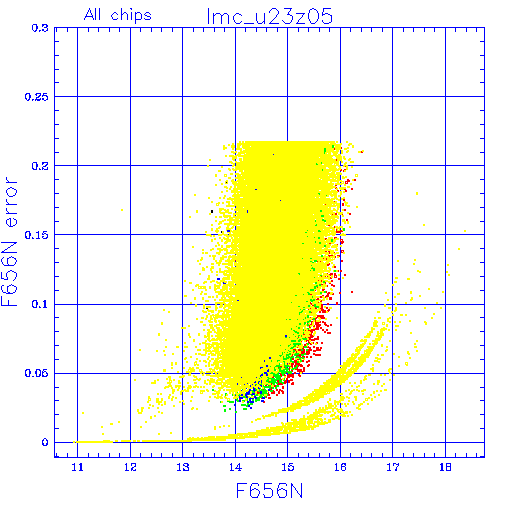

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w
f547m
f656n
f502n

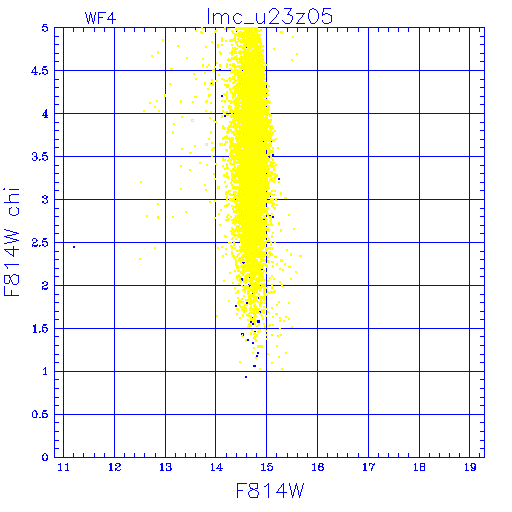

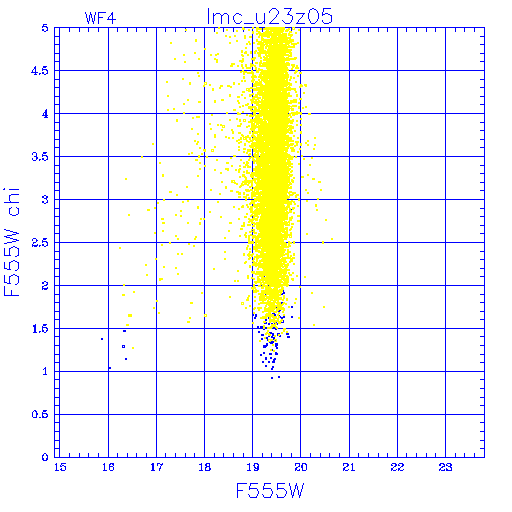

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w
f547m
f656n
f502n

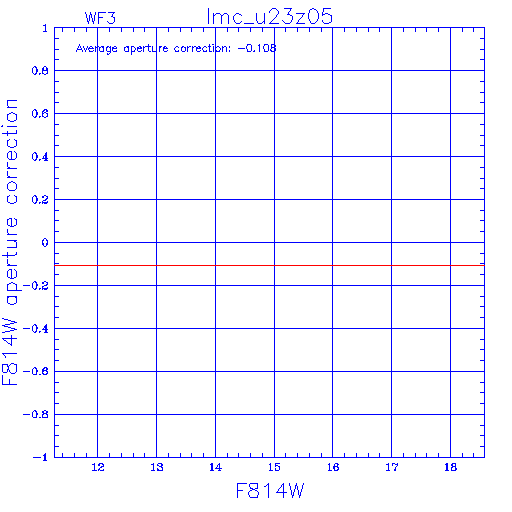

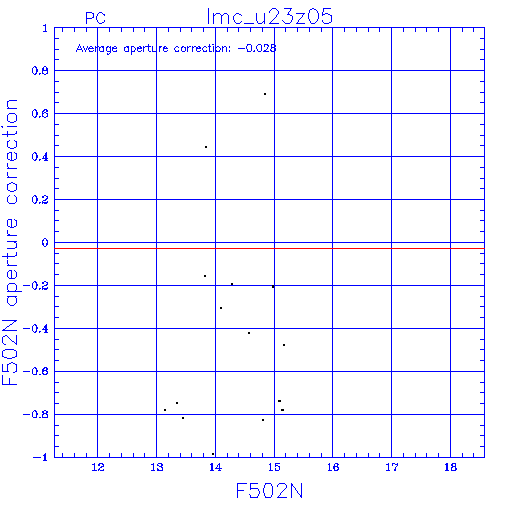

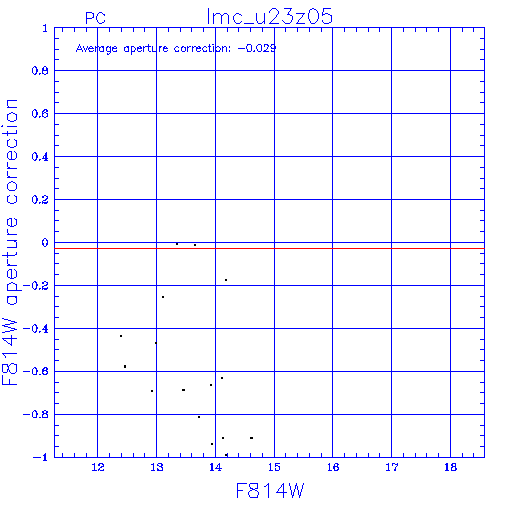

Aperture corrections

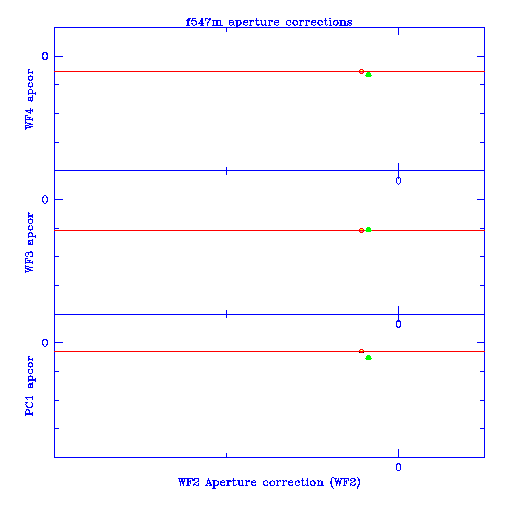

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
