Photometry Diagnostics for leo_t_u9x716

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u9x71601m	F606W	1200.00	0.00	0.00	0.00	0.00	0.00	0.00
u9x71602m	F606W	1200.00	-0.07	-0.05	0.00	0.00	-0.07	-0.05
u9x71603m	F606W	1200.00	10.78	5.14	11.00	5.45	-0.22	-0.31
u9x71604m	F606W	1200.00	10.83	5.22	11.00	5.45	-0.17	-0.23
u9x71605m	F606W	1200.00	16.65	16.64	16.53	16.42	0.12	0.22
u9x71606m	F606W	1200.00	16.42	16.49	16.53	16.42	-0.11	0.07
u9x71607m	F606W	1200.00	5.56	10.99	5.53	10.97	0.03	0.02
u9x71608m	F606W	1200.00	5.39	10.95	5.53	10.97	-0.14	-0.02
u9x71701m	F606W	1200.00	-8.79	-8.59	-8.27	-8.21	-0.52	-0.38
u9x71702m	F606W	1200.00	-8.87	-8.66	-8.27	-8.21	-0.60	-0.45
u9x71703m	F606W	1200.00	2.25	-2.87	2.74	-2.76	-0.49	-0.11
u9x71704m	F606W	1200.00	2.15	-2.99	2.74	-2.76	-0.59	-0.23
u9x71705m	F606W	1200.00	7.81	7.96	8.27	8.21	-0.46	-0.25
u9x71706m	F606W	1200.00	7.86	8.02	8.27	8.21	-0.41	-0.19
u9x71707m	F606W	1200.00	-3.17	2.52	-2.74	2.76	-0.43	-0.24
u9x71708m	F606W	1200.00	-3.32	2.40	-2.74	2.76	-0.58	-0.36
u9x71801m	F814W	1200.00	-0.67	0.13	0.00	0.00	-0.67	0.13
u9x71802m	F814W	1200.00	-0.82	0.04	0.00	0.00	-0.82	0.04
u9x71803m	F814W	1200.00	10.25	5.61	11.00	5.45	-0.75	0.16
u9x71804m	F814W	1200.00	10.05	5.51	11.00	5.45	-0.95	0.06
u9x71805m	F814W	1200.00	15.90	16.92	16.53	16.42	-0.63	0.50
u9x71806m	F814W	1200.00	15.81	16.86	16.53	16.42	-0.72	0.44
u9x71807m	F814W	1200.00	4.69	11.11	5.53	10.97	-0.84	0.14
u9x71808m	F814W	1200.00	4.61	11.08	5.53	10.97	-0.92	0.11
u9x71901m	F814W	1200.00	-8.81	-8.11	-8.27	-8.21	-0.54	0.10
u9x71902m	F814W	1200.00	-8.90	-8.21	-8.27	-8.21	-0.63	0.00
u9x71903m	F814W	1200.00	2.11	-2.39	2.74	-2.76	-0.63	0.37
u9x71904m	F814W	1200.00	2.02	-2.49	2.74	-2.76	-0.72	0.27
u9x71905m	F814W	1200.00	7.74	8.51	8.27	8.21	-0.53	0.30
u9x71906m	F814W	1200.00	7.61	8.44	8.27	8.21	-0.66	0.23
u9x71907m	F814W	1200.00	-3.22	3.04	-2.74	2.76	-0.48	0.28
u9x71908m	F814W	1200.00	-3.37	2.89	-2.74	2.76	-0.63	0.13
u9x72001m	F814W	1200.00	-3.54	-2.48	-2.78	-2.76	-0.76	0.28
u9x72002m	F814W	1200.00	-3.61	-2.56	-2.78	-2.76	-0.83	0.20
u9x72003m	F814W	1200.00	7.61	2.99	8.22	2.70	-0.61	0.29
u9x72004m	F814W	1200.00	7.48	2.87	8.22	2.70	-0.74	0.17
u9x72005m	F814W	1200.00	13.19	13.79	13.76	13.66	-0.57	0.13
u9x72006m	F814W	1200.00	13.10	13.74	13.76	13.66	-0.66	0.08
u9x72007m	F814W	1200.00	2.09	8.49	2.75	8.21	-0.66	0.28
u9x72008m	F814W	1200.00	2.03	8.45	2.75	8.21	-0.72	0.24
u9x72009m	F814W	1200.00	4.87	5.65	5.49	5.45	-0.62	0.20
u9x7200am	F814W	1200.00	4.76	5.57	5.49	5.45	-0.73	0.12

Mosaic images

F606W	F814W

HSTPHOT command log

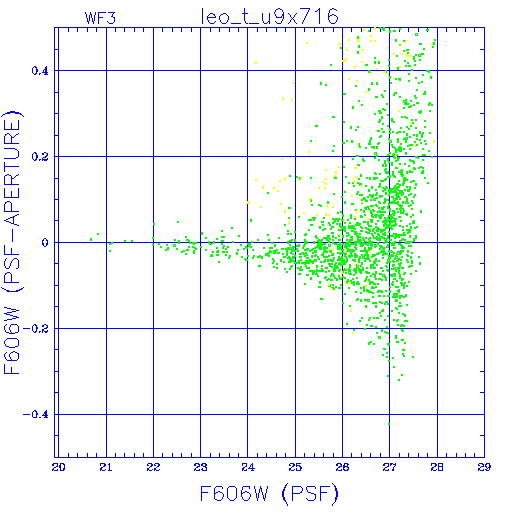

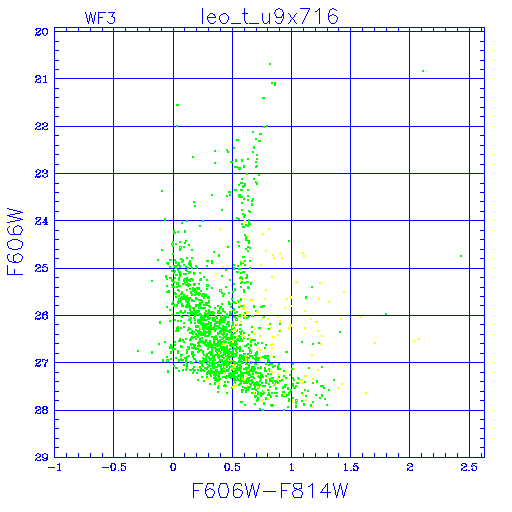

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4

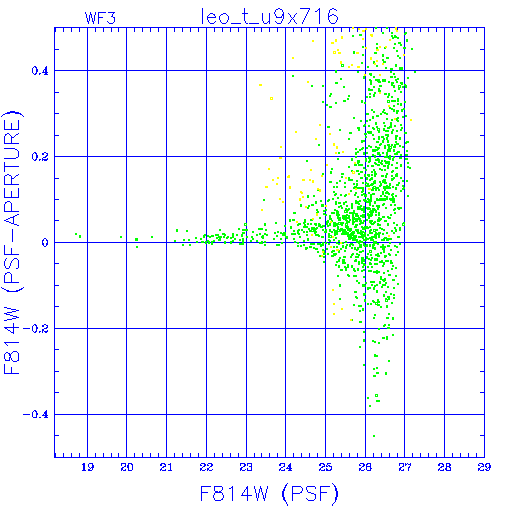

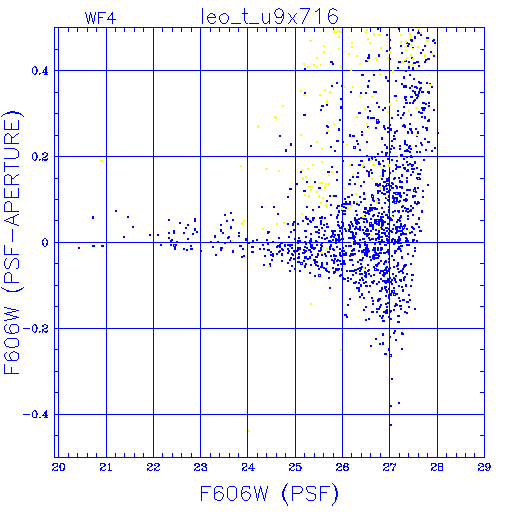

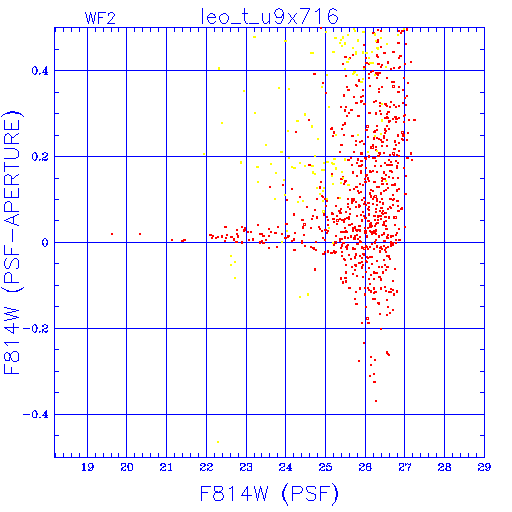

PSF
Aperture

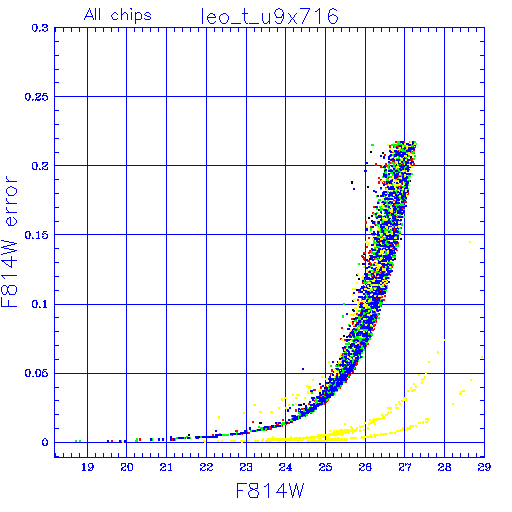

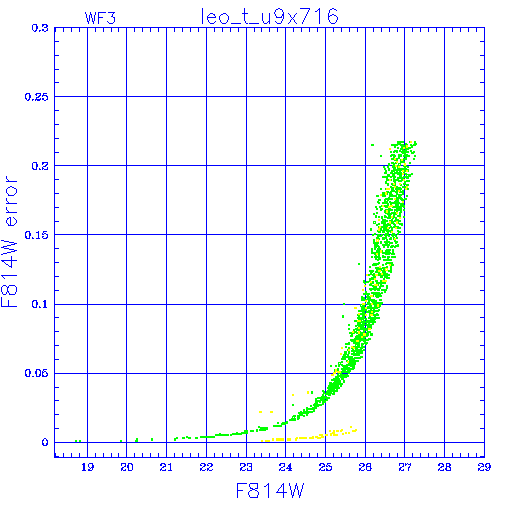

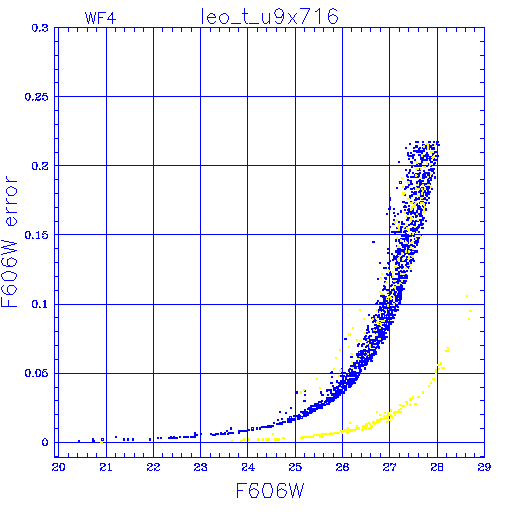

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f606w
f814w

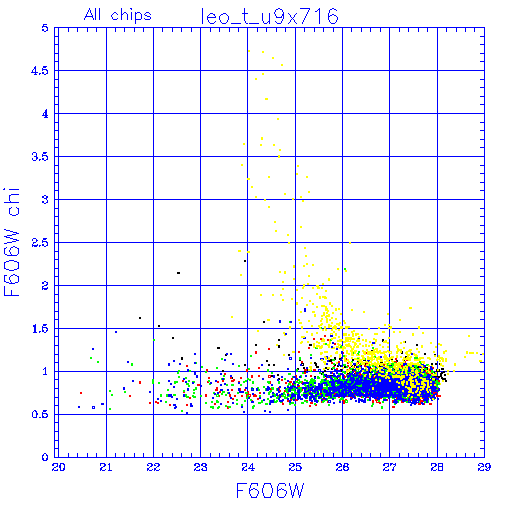

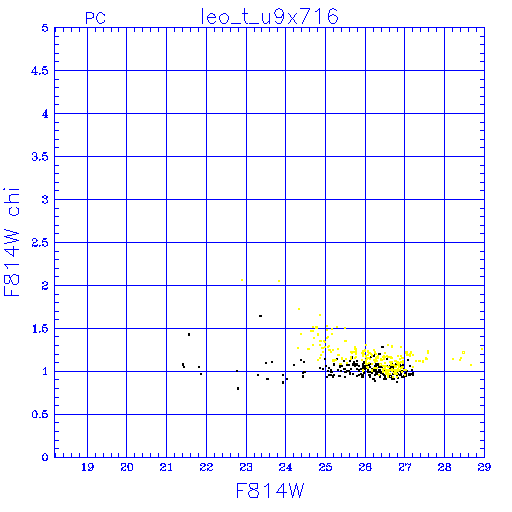

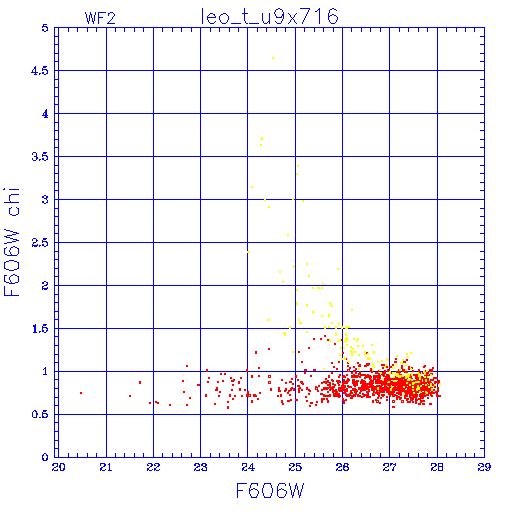

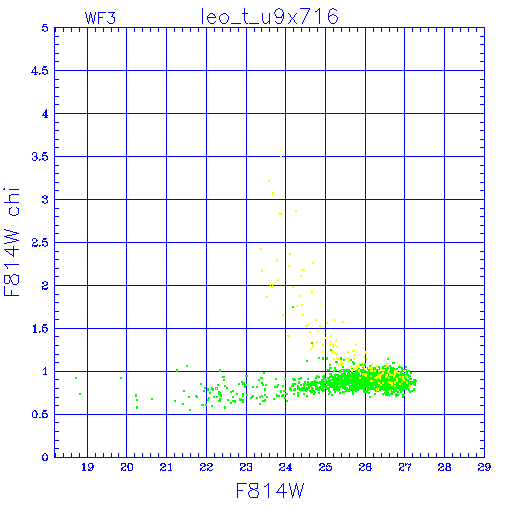

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f606w
f814w

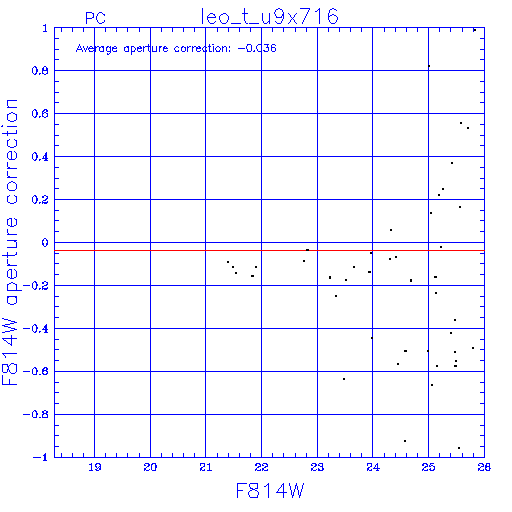

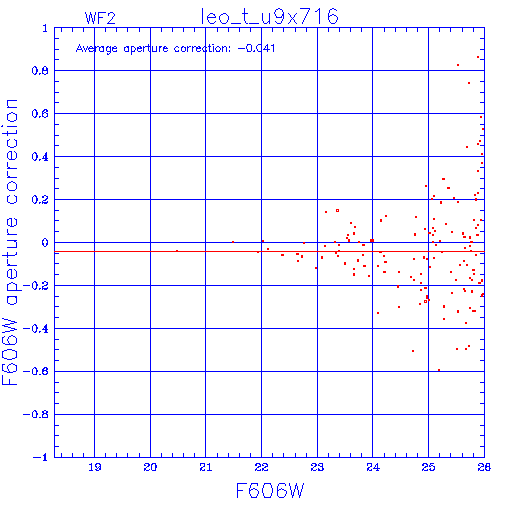

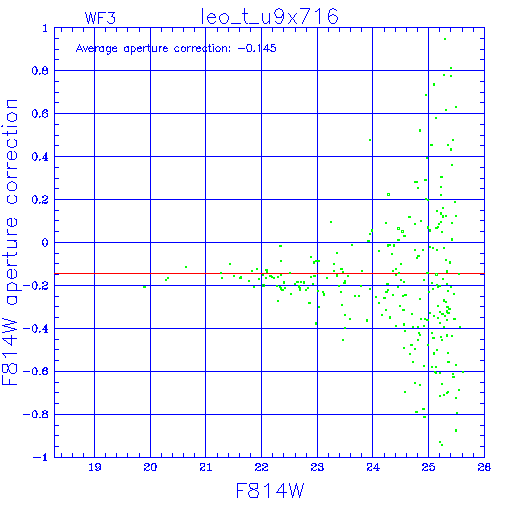

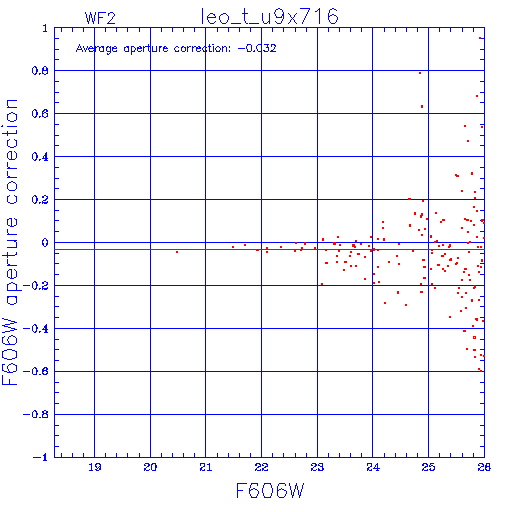

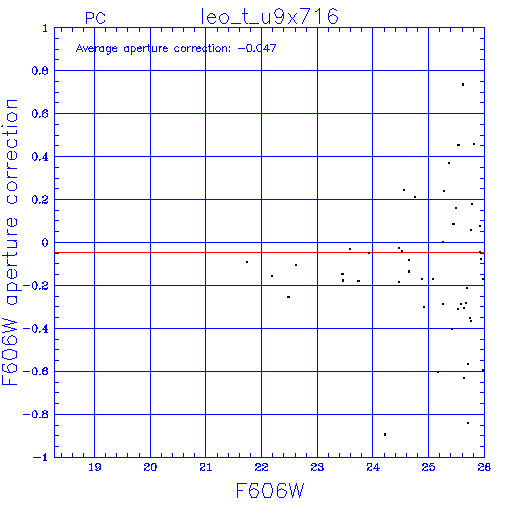

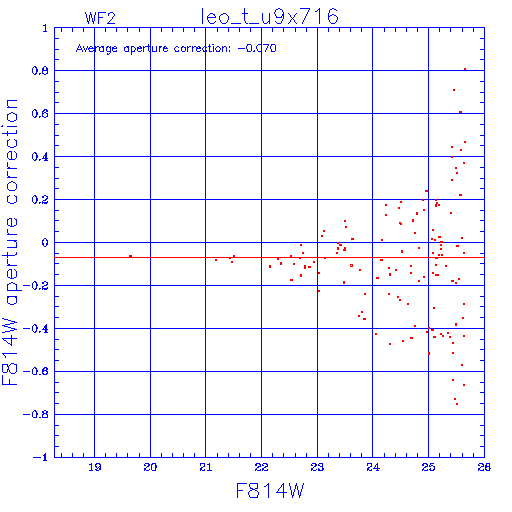

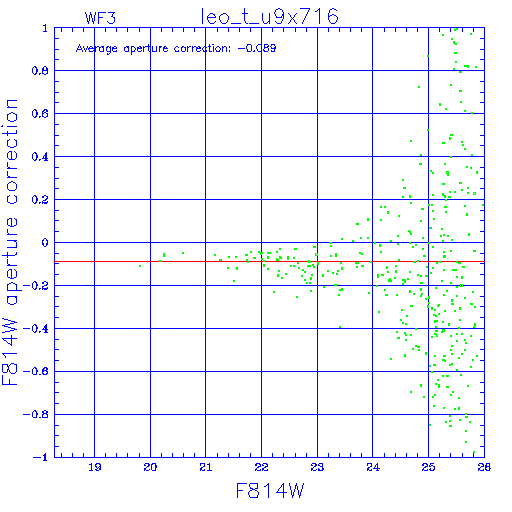

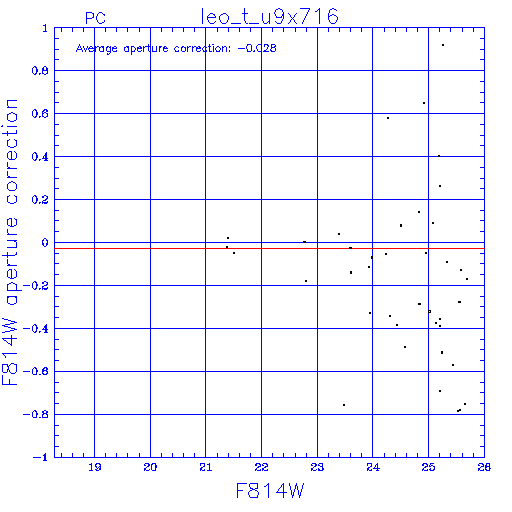

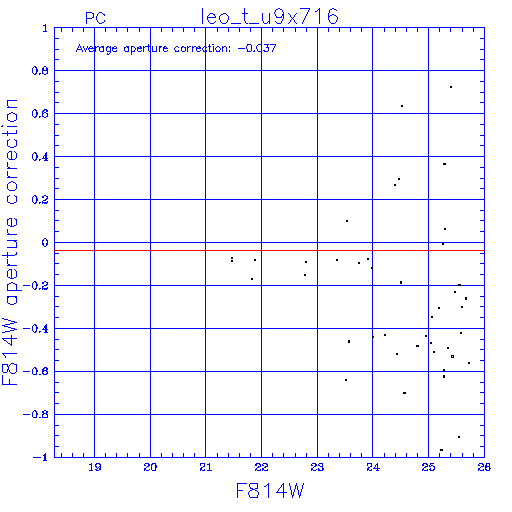

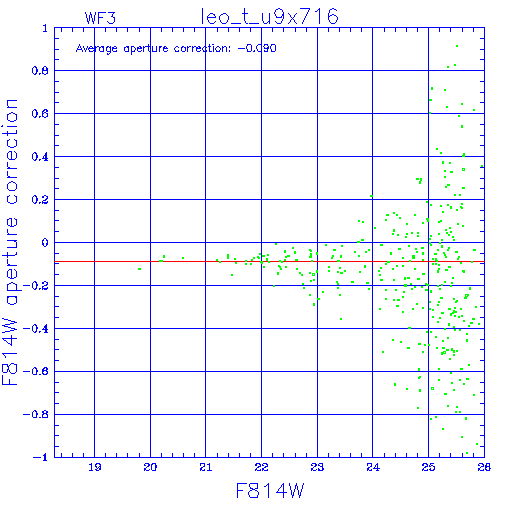

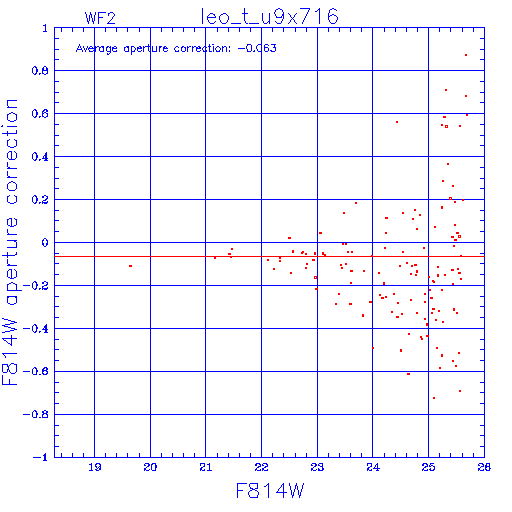

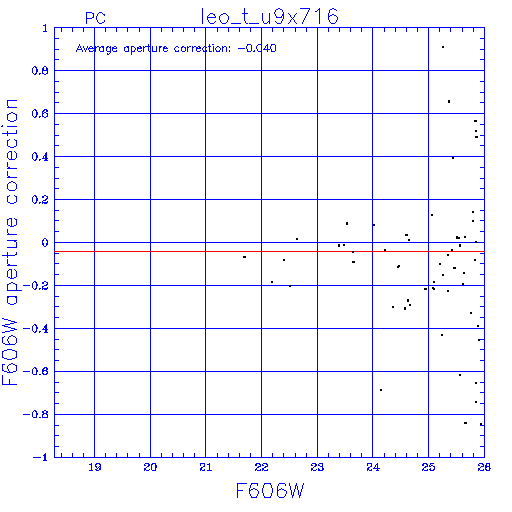

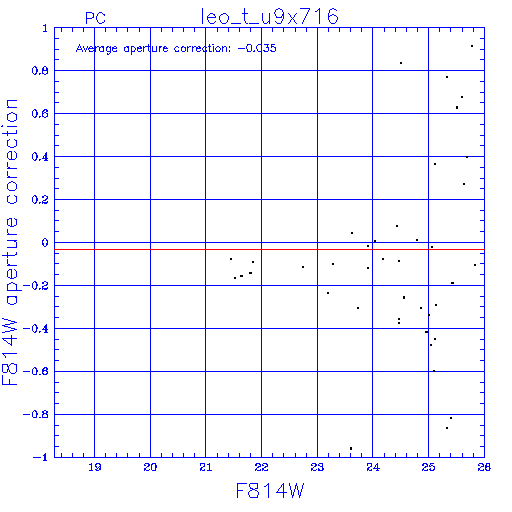

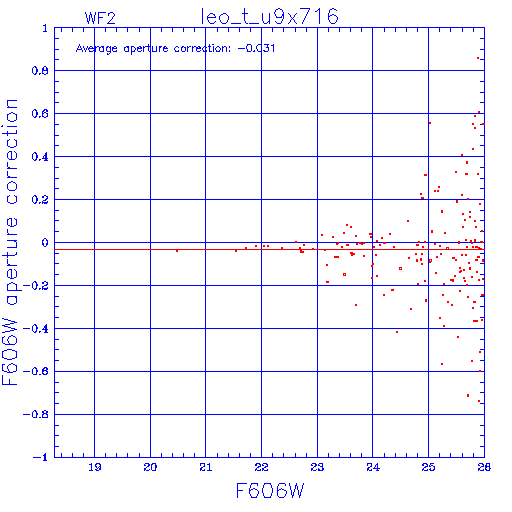

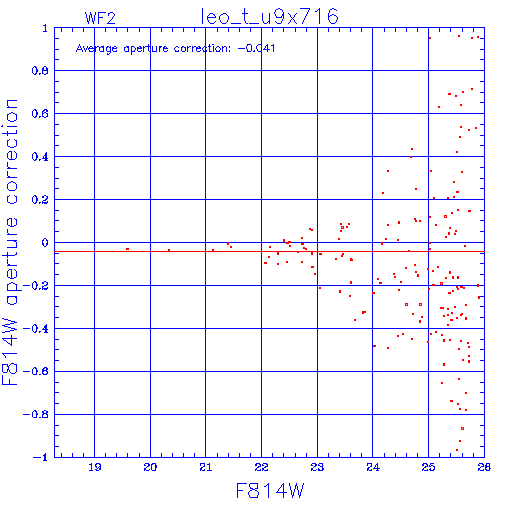

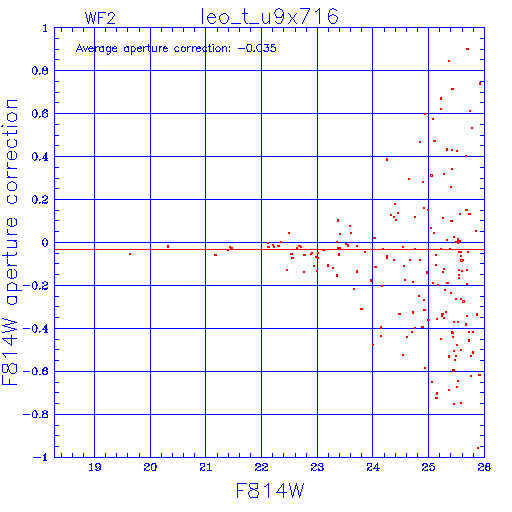

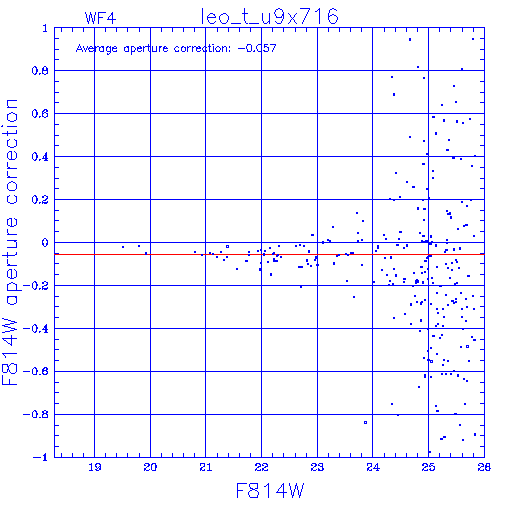

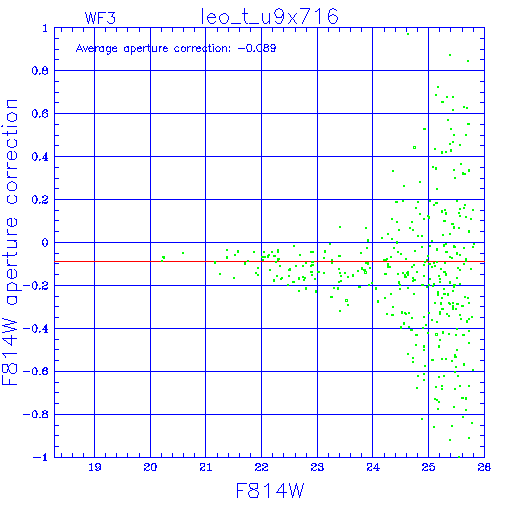

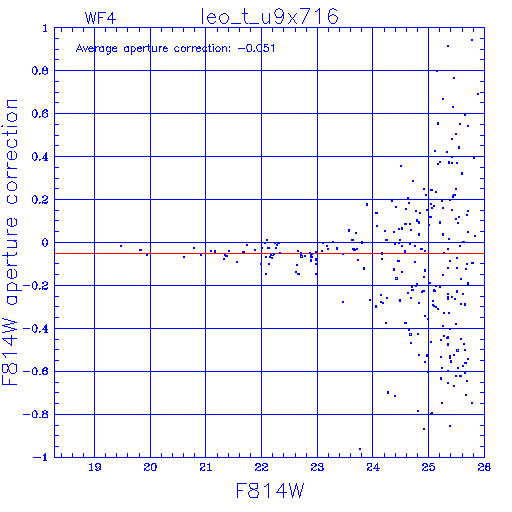

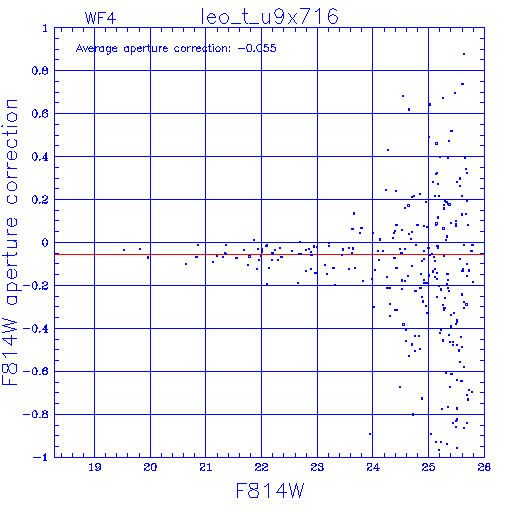

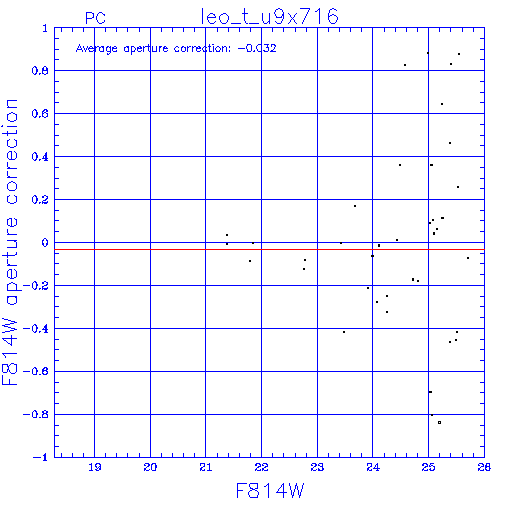

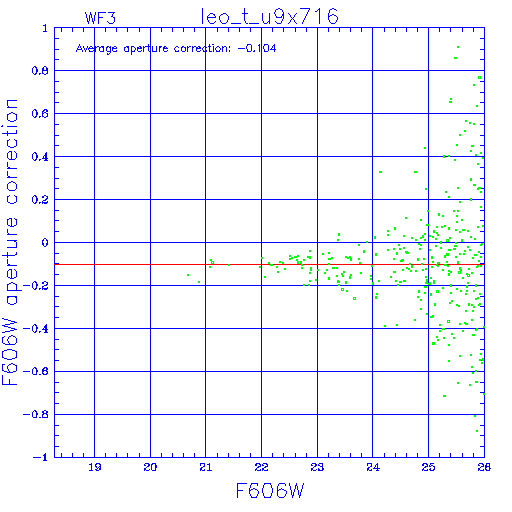

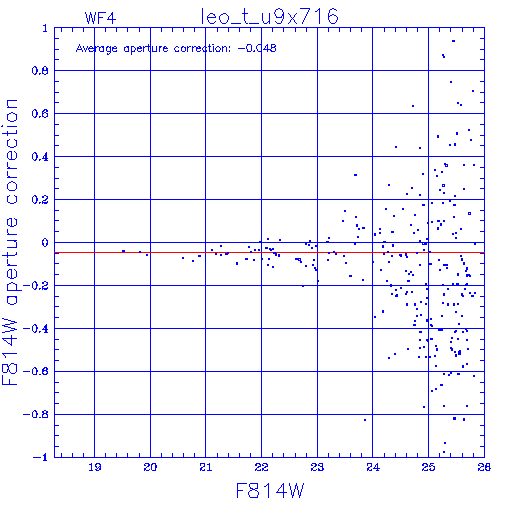

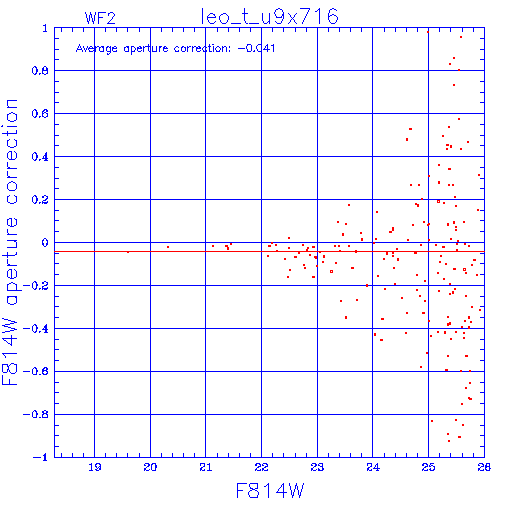

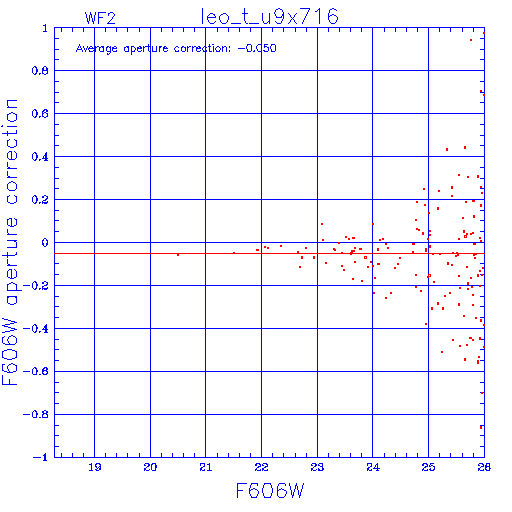

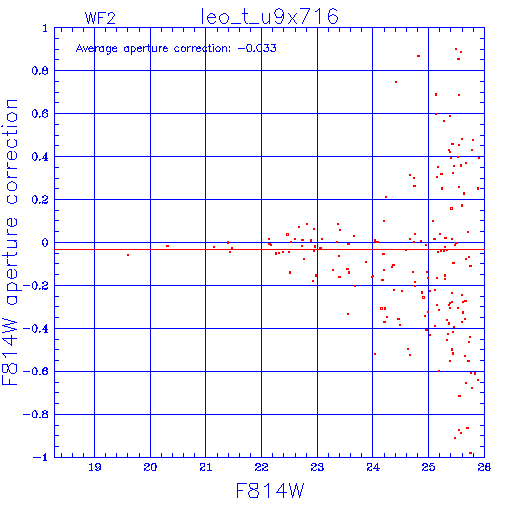

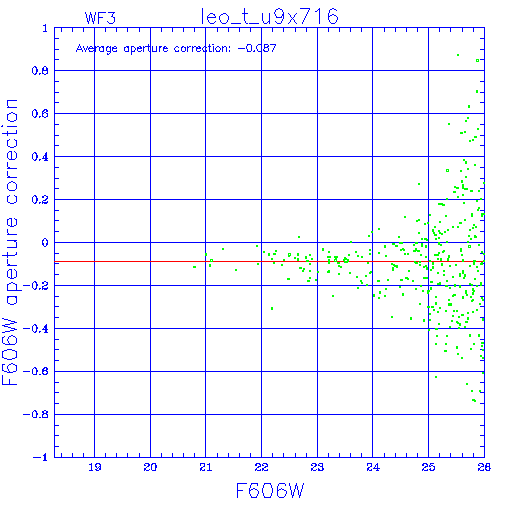

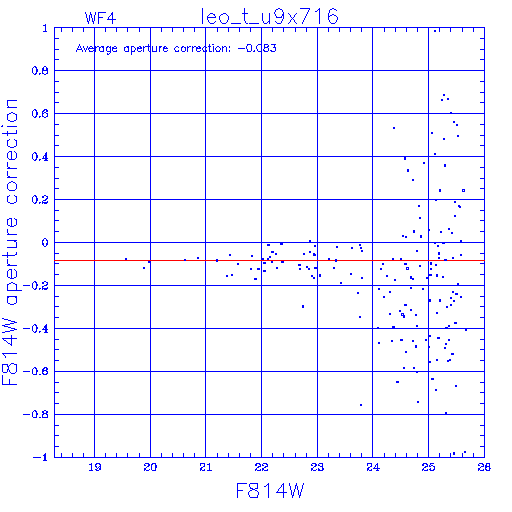

Aperture corrections

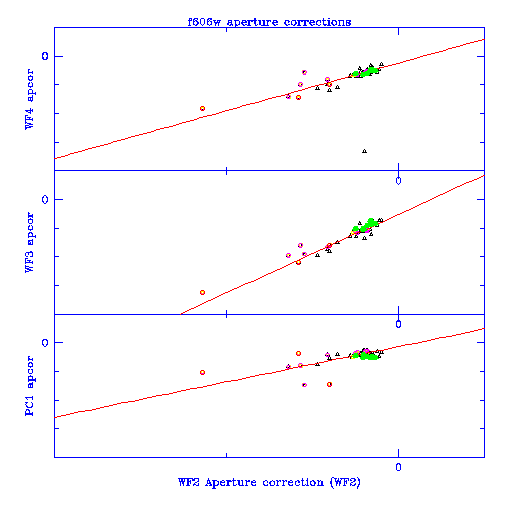

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
