Photometry Diagnostics for leo_i_u27k01

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u27k0101t	F555W	1600.00	0.00	0.00	0.00	0.00	0.00	0.00
u27k0102t	F555W	1900.00	-0.01	0.04	0.00	0.00	-0.01	0.04
u27k0103t	F555W	1900.00	0.04	0.14	0.00	0.00	0.04	0.14
u27k0105t	F555W	1900.00	0.11	0.26	0.00	0.00	0.11	0.26
u27k0104t	F814W	350.00	0.15	0.26	0.00	0.00	0.15	0.26
u27k0106t	F814W	1600.00	0.17	0.33	0.00	0.00	0.17	0.33
u27k0107t	F814W	1600.00	0.18	0.38	0.00	0.00	0.18	0.38
u27k0108t	F814W	300.00	0.20	0.41	0.00	0.00	0.20	0.41

Mosaic images

F555W	F814W

HSTPHOT command log

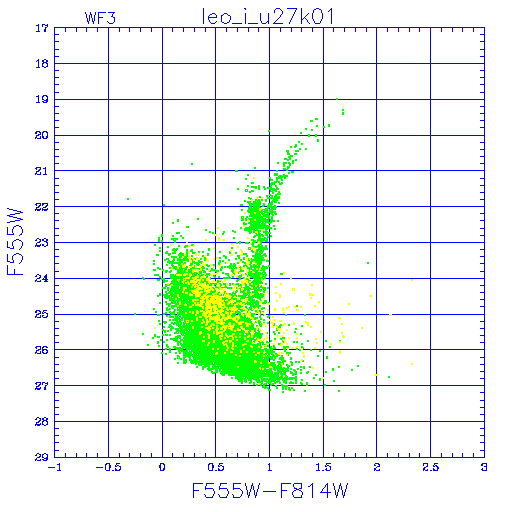

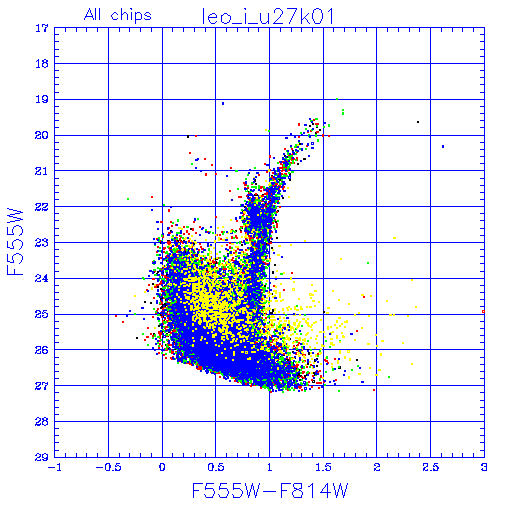

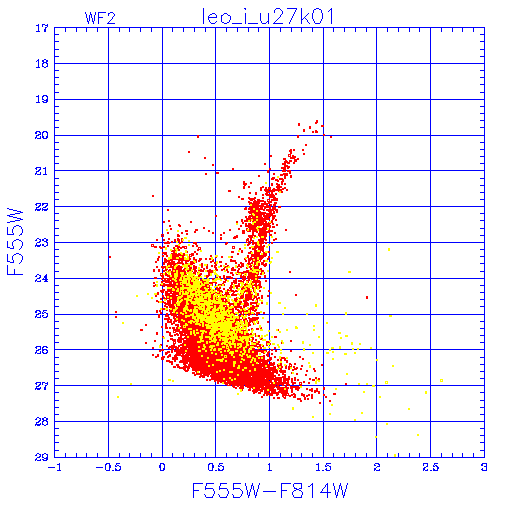

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4
PSF
Aperture

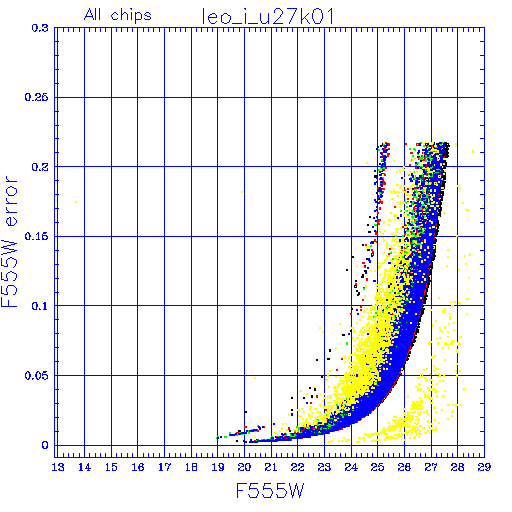

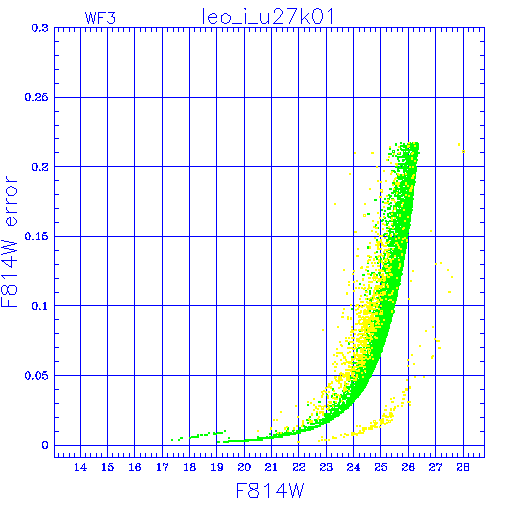

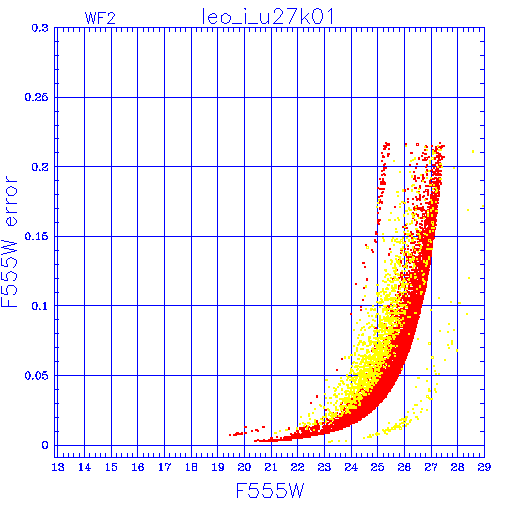

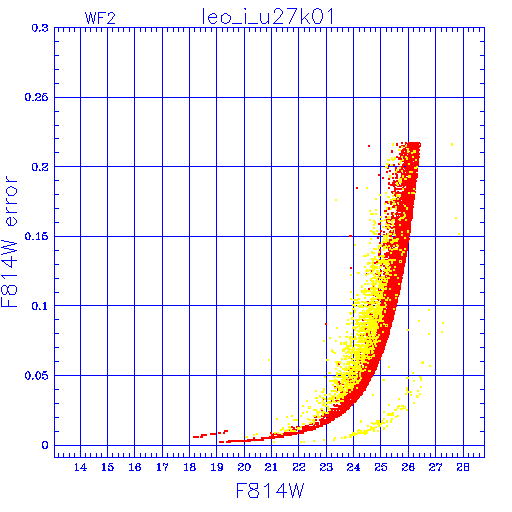

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

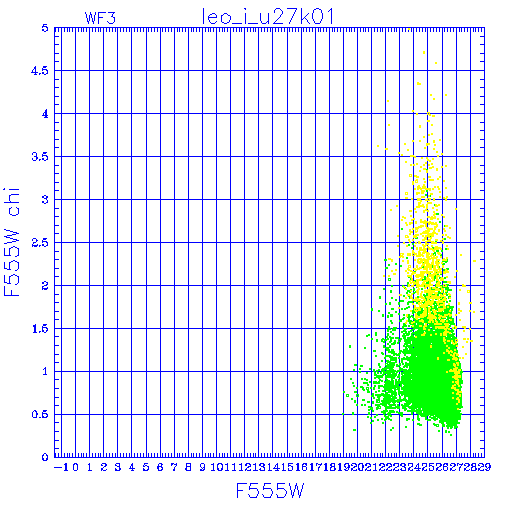

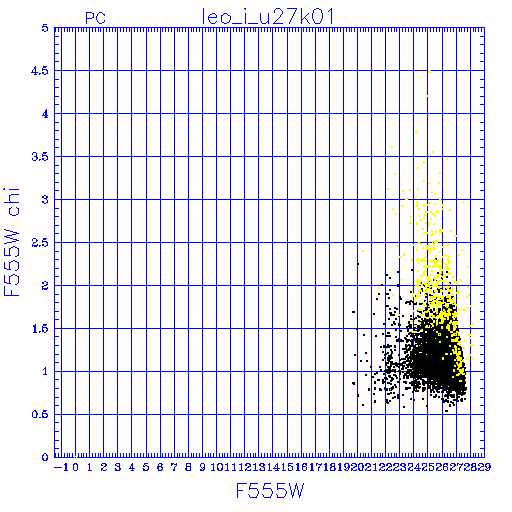

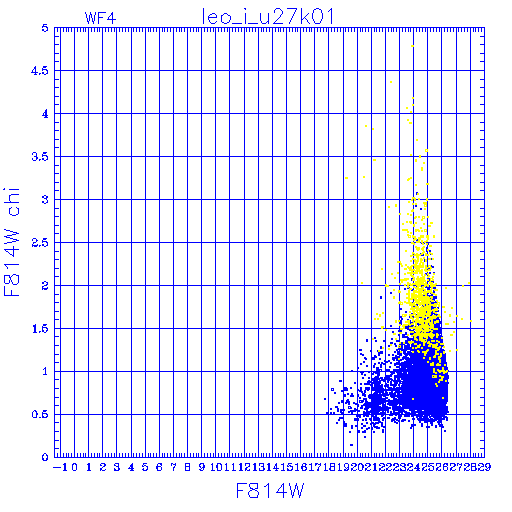

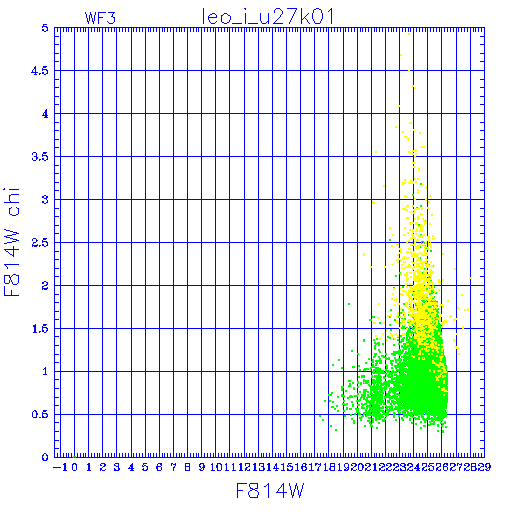

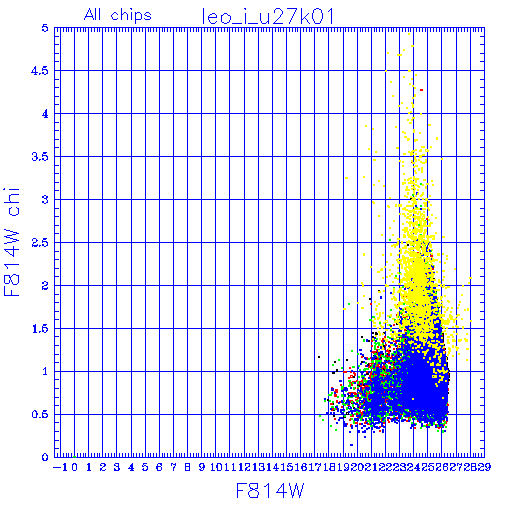

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

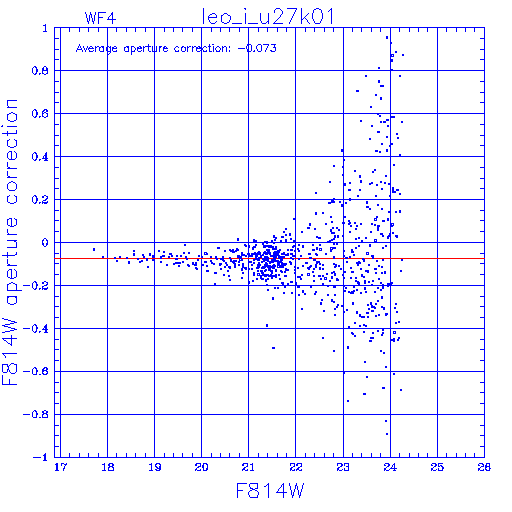

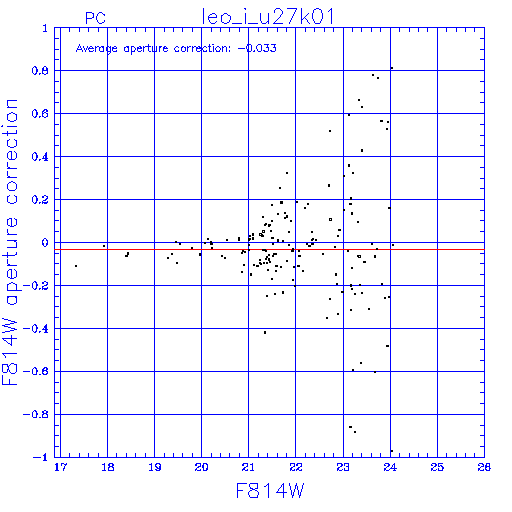

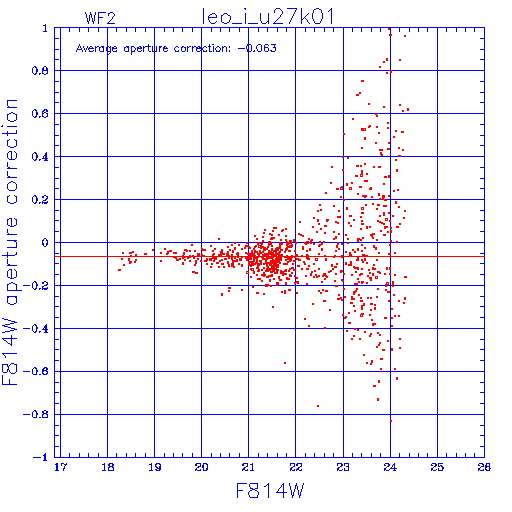

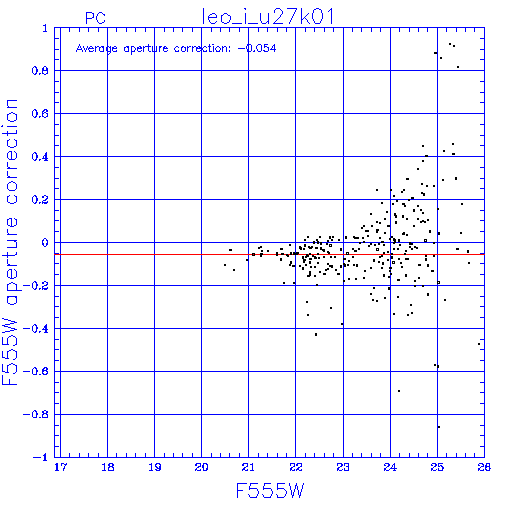

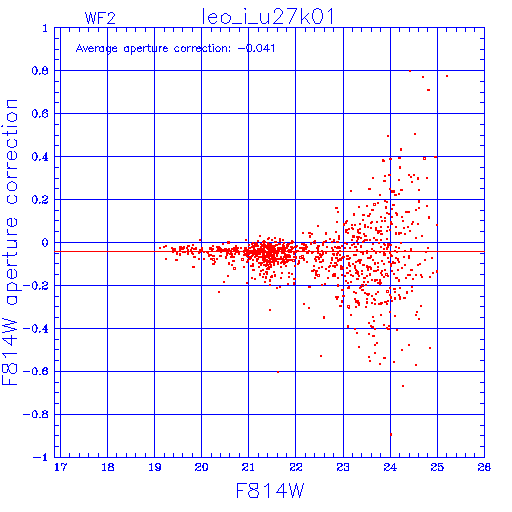

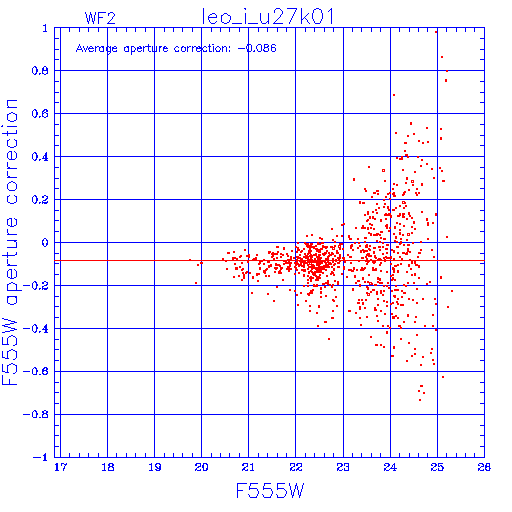

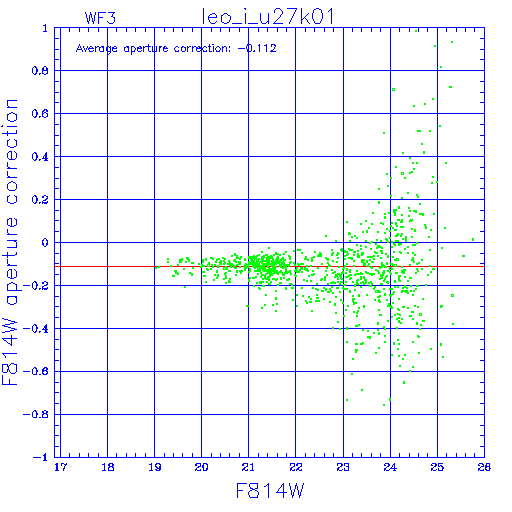

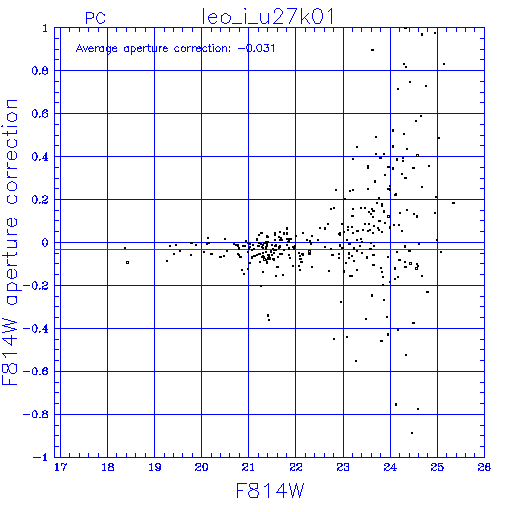

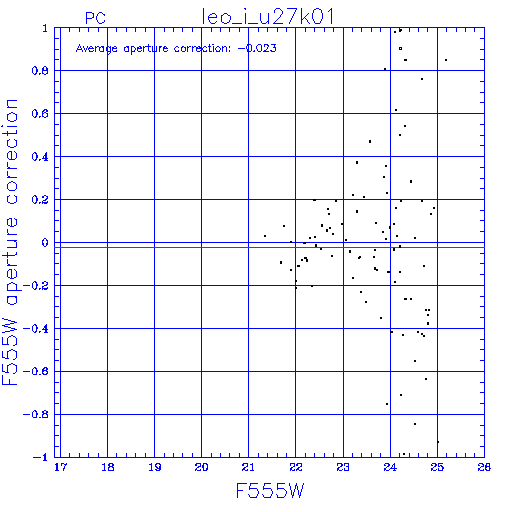

Aperture corrections

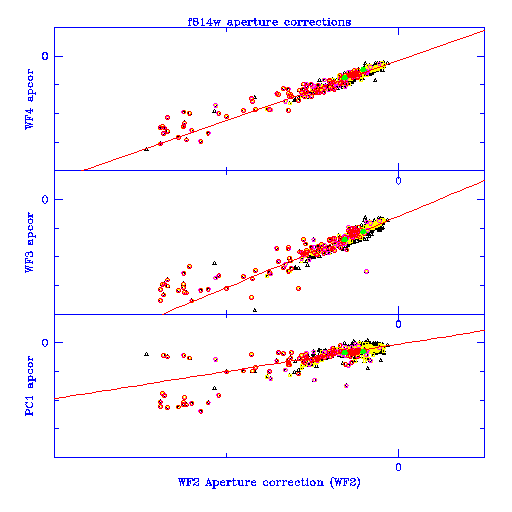

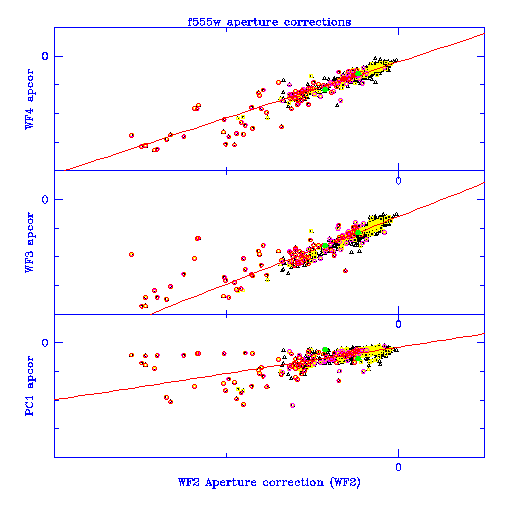

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
