Photometry Diagnostics for leo_a_u2x501

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u2x50105t	F555W	600.00	0.00	0.00	0.00	0.00	0.00	0.00
u2x50106t	F555W	600.00	4.96	1.66	5.12	1.46	-0.16	0.20
u2x50107t	F555W	600.00	1.87	4.84	1.49	5.11	0.38	-0.27
u2x50108t	F814W	600.00	0.14	0.00	0.00	0.00	0.14	0.00
u2x50109t	F814W	600.00	5.21	1.67	5.12	1.46	0.09	0.21
u2x5010at	F814W	600.00	1.96	4.99	1.49	5.11	0.47	-0.12
u2x50101t	F439W	600.00	-0.33	-0.13	0.00	0.00	-0.33	-0.13
u2x50102t	F439W	900.00	4.18	4.18	4.41	4.38	-0.23	-0.20
u2x50103t	F439W	900.00	3.03	0.53	3.30	1.09	-0.27	-0.56
u2x50104t	F439W	1100.00	7.55	4.91	7.70	5.47	-0.15	-0.56

Mosaic images

F555W	F814W	F439W

HSTPHOT command log

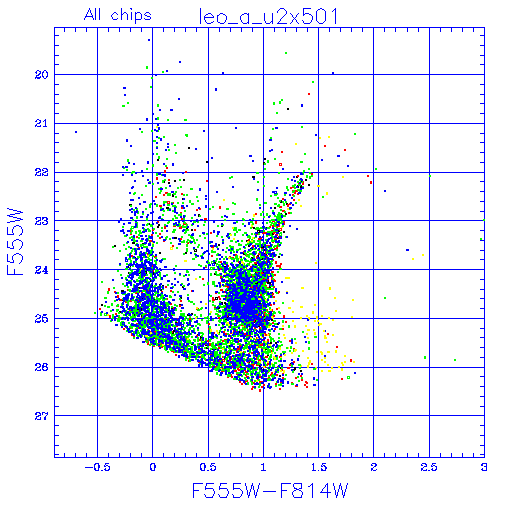

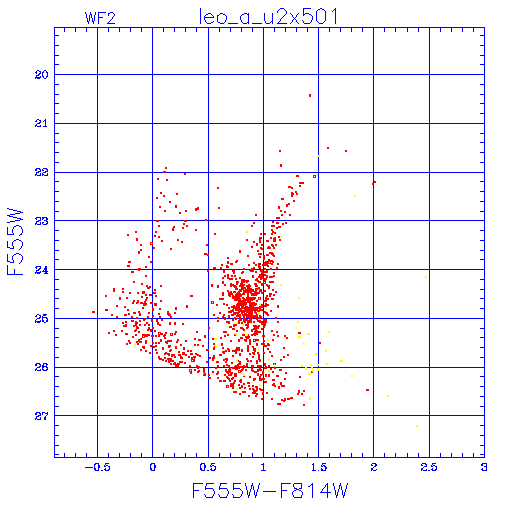

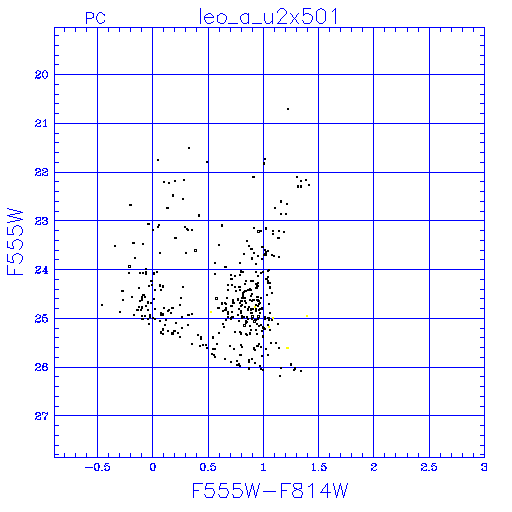

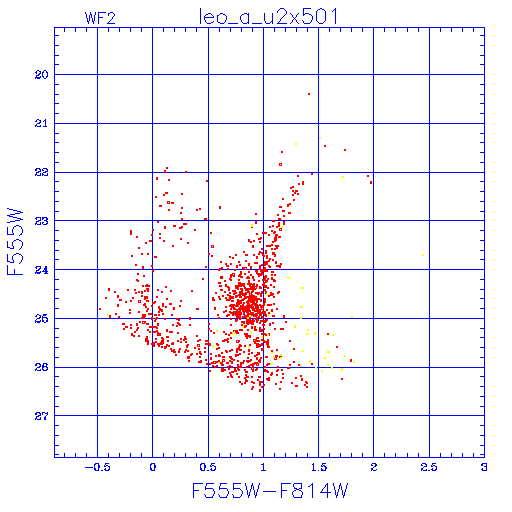

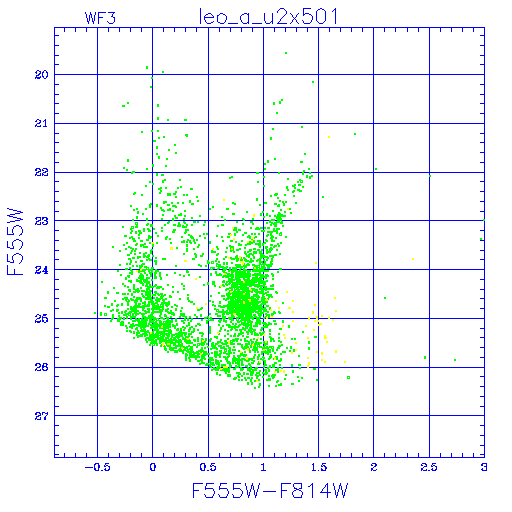

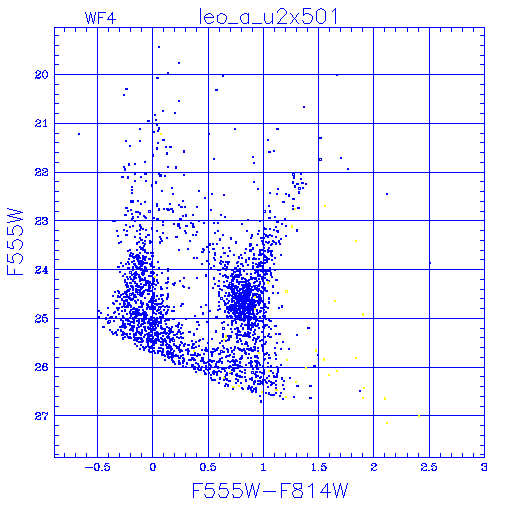

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4

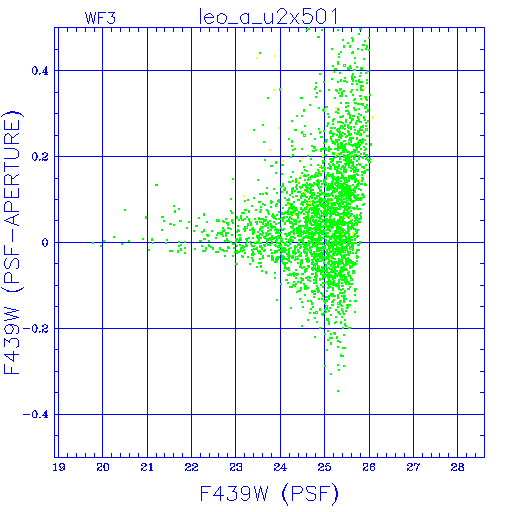

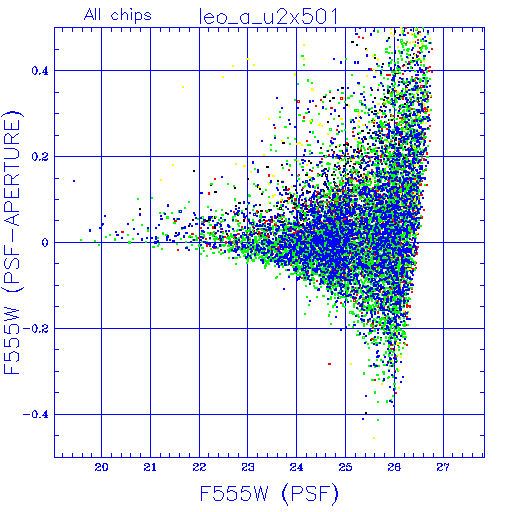

PSF
Aperture

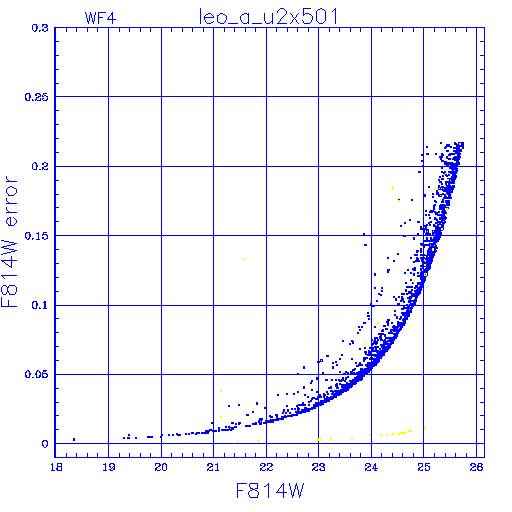

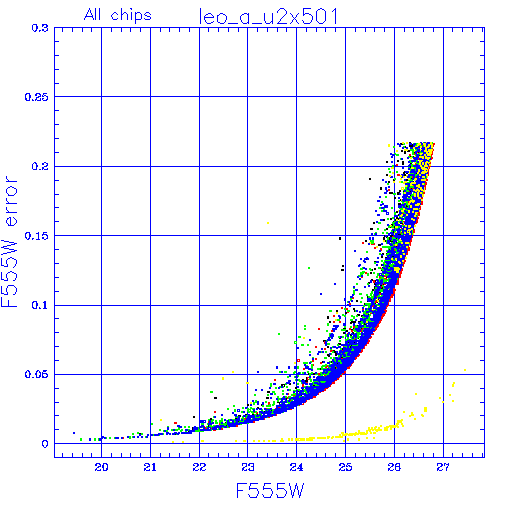

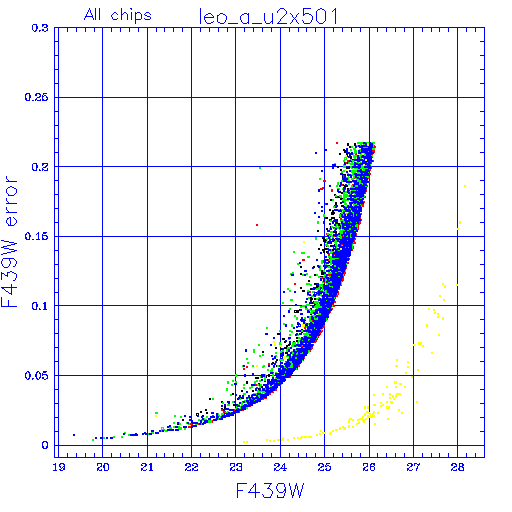

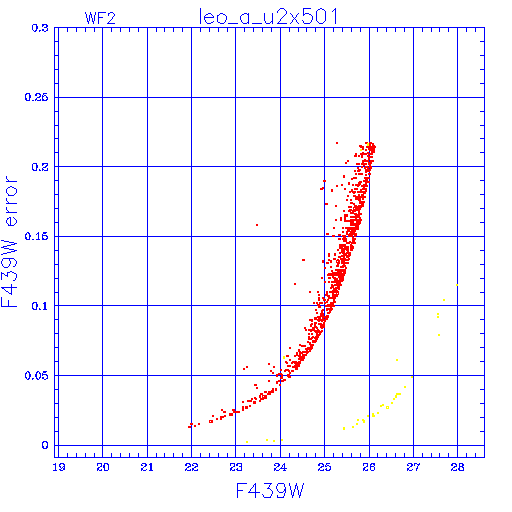

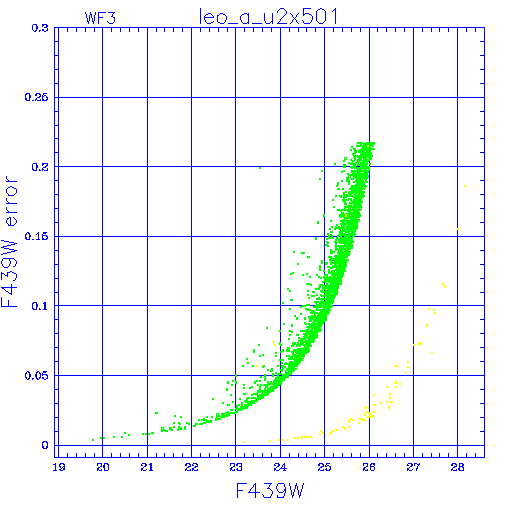

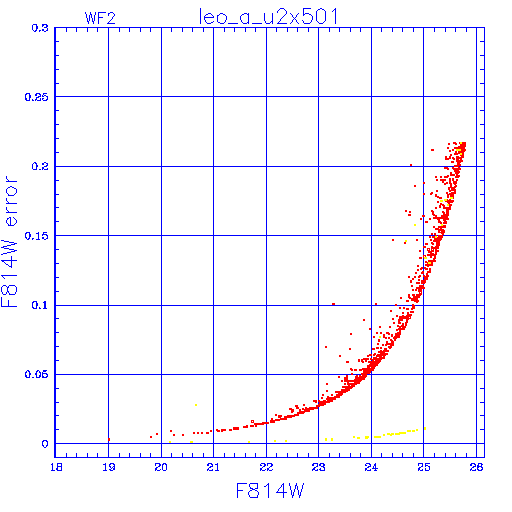

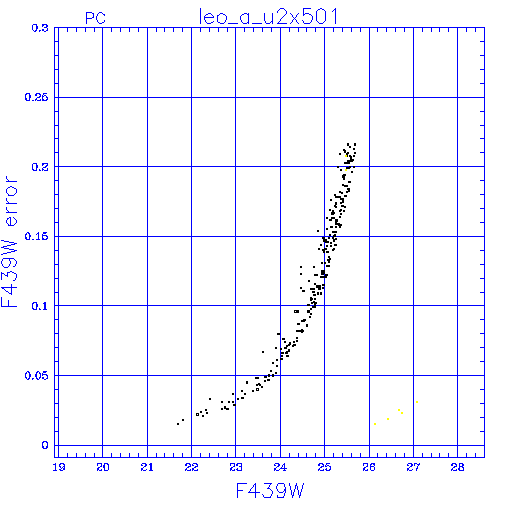

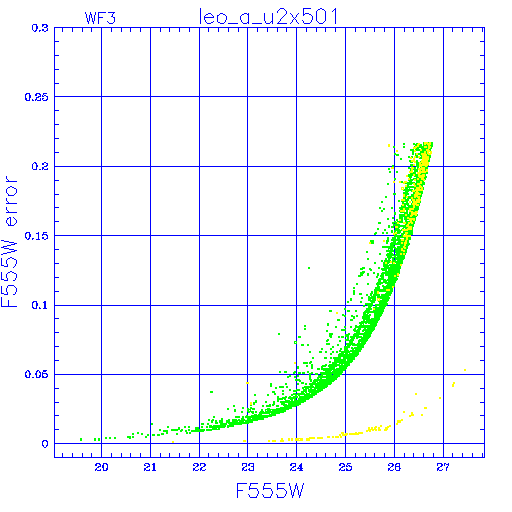

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w
f439w

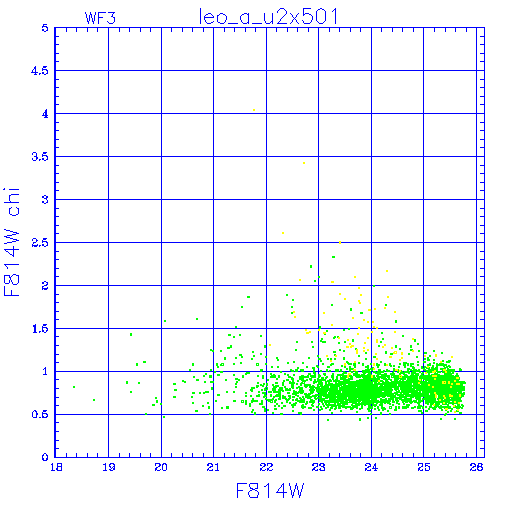

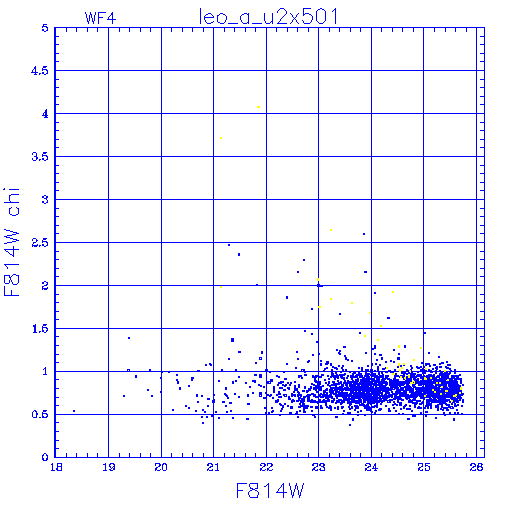

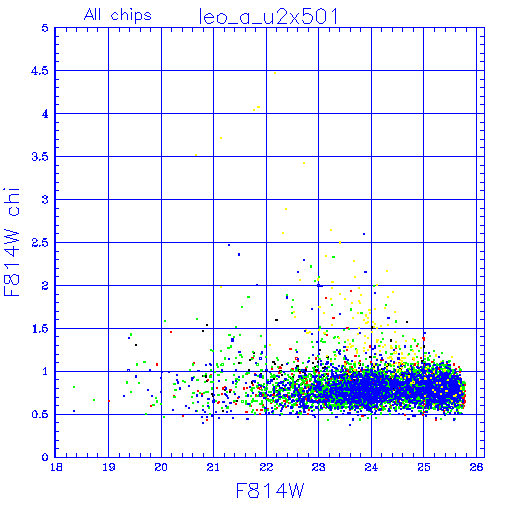

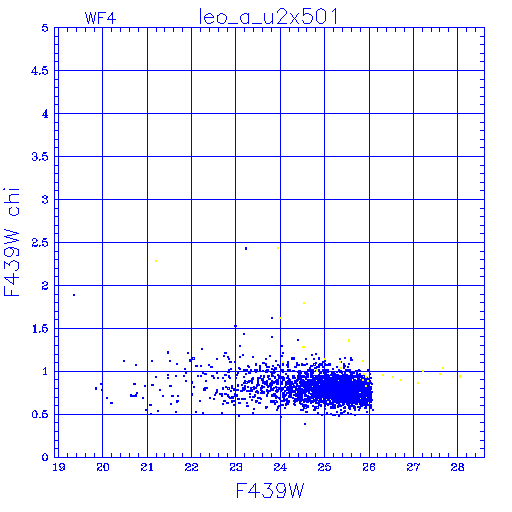

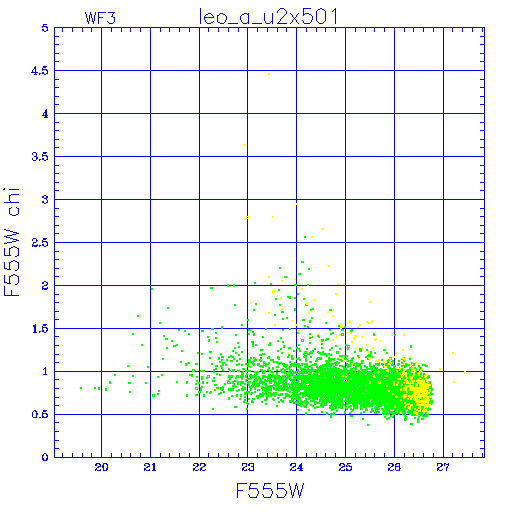

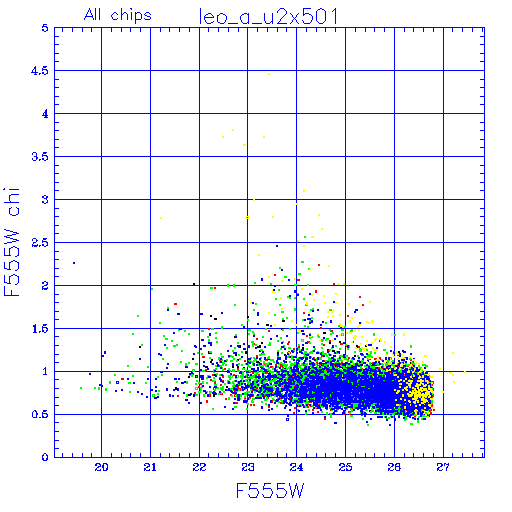

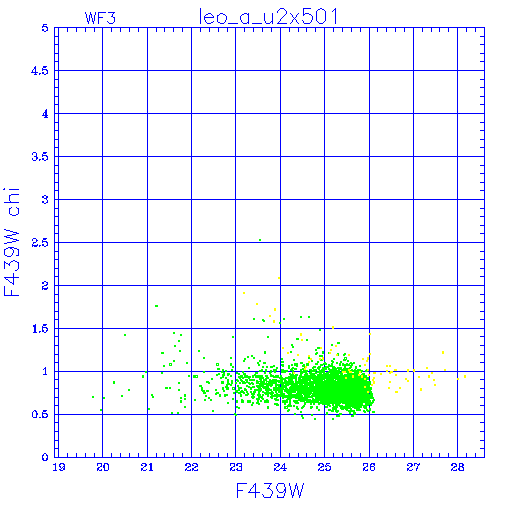

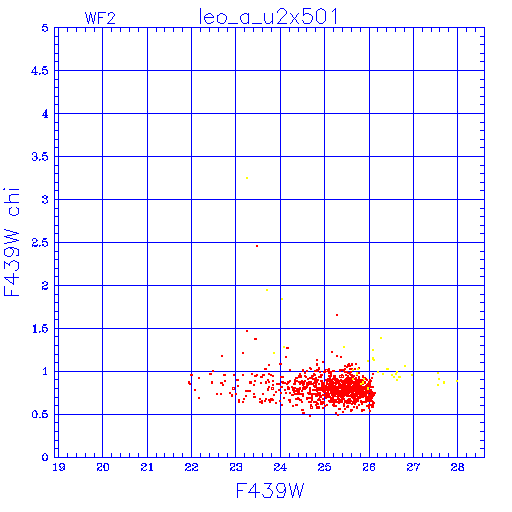

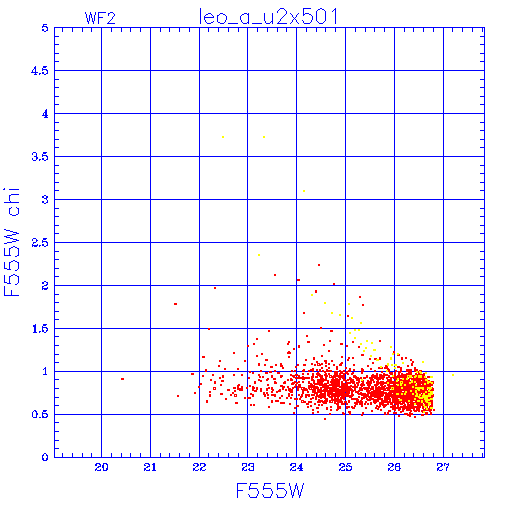

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w
f439w

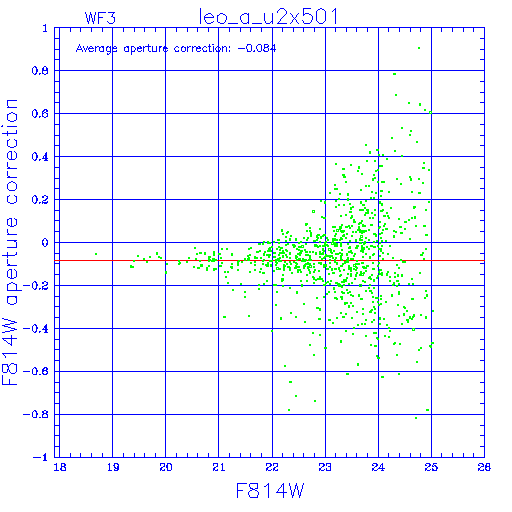

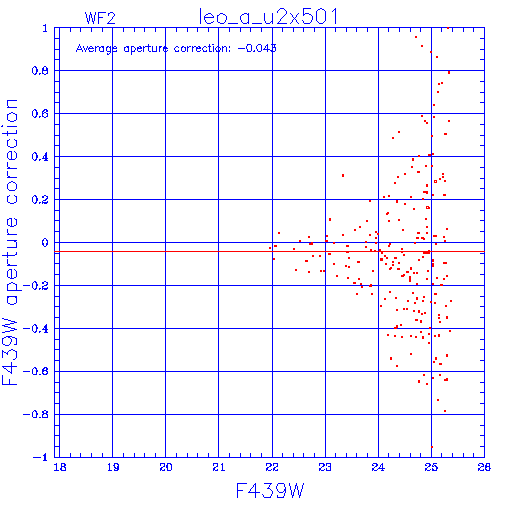

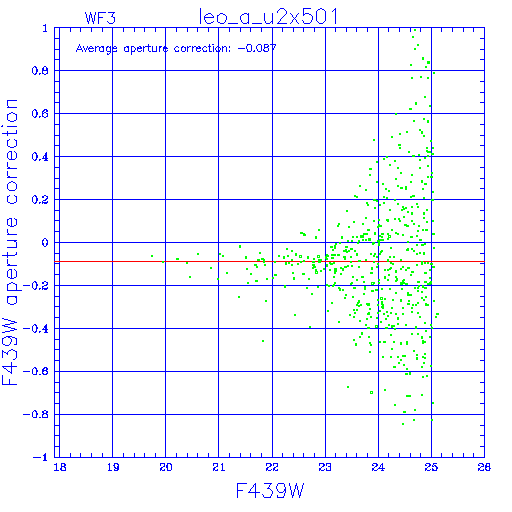

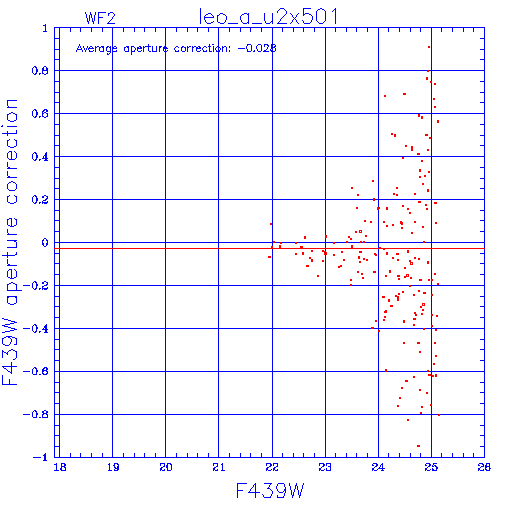

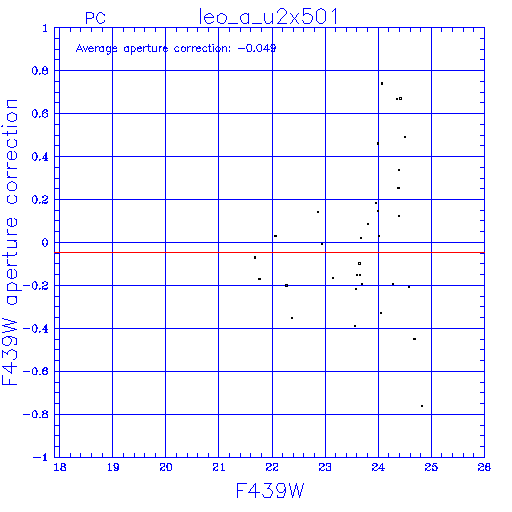

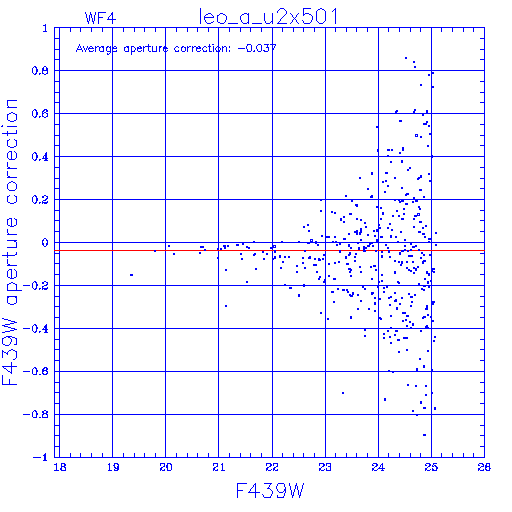

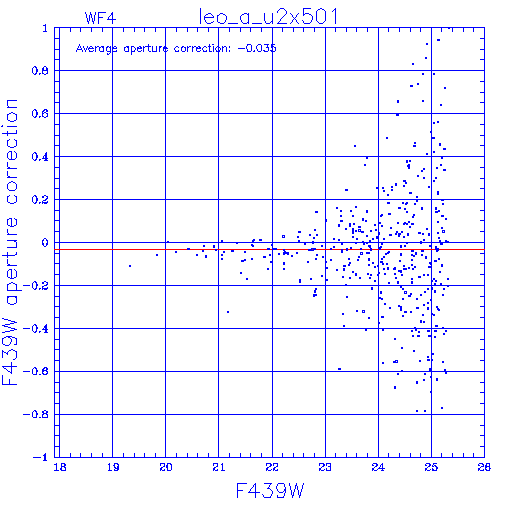

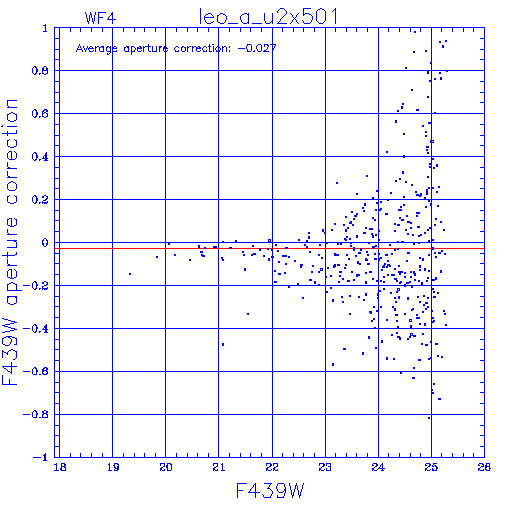

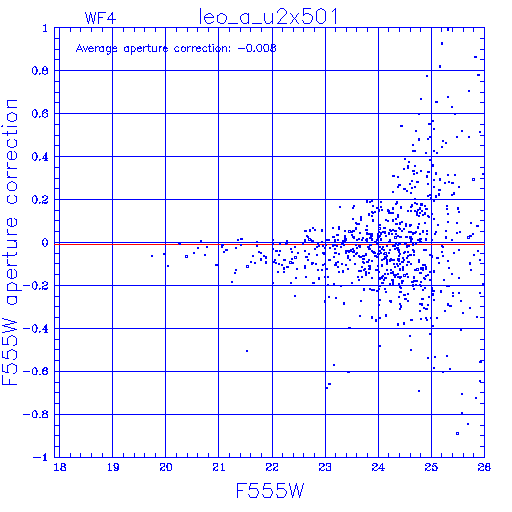

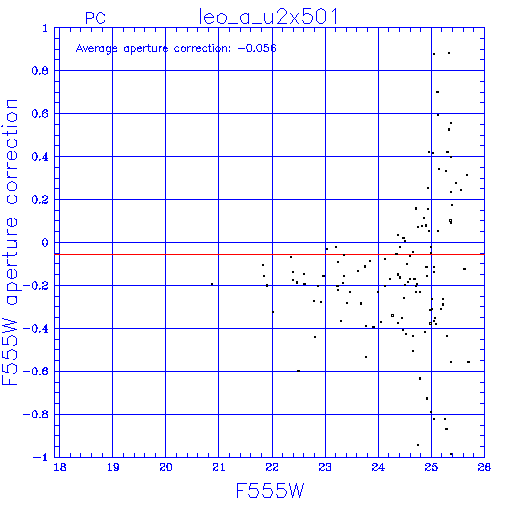

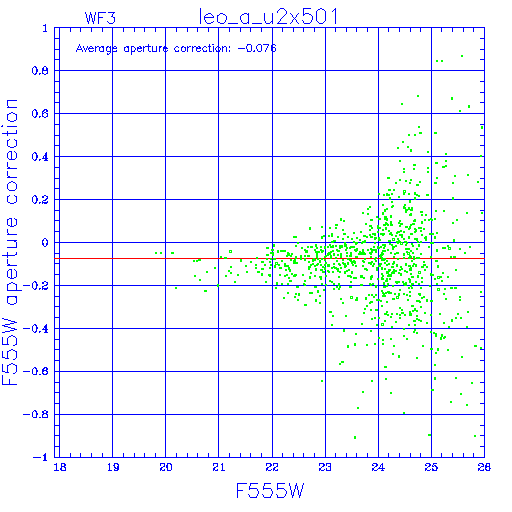

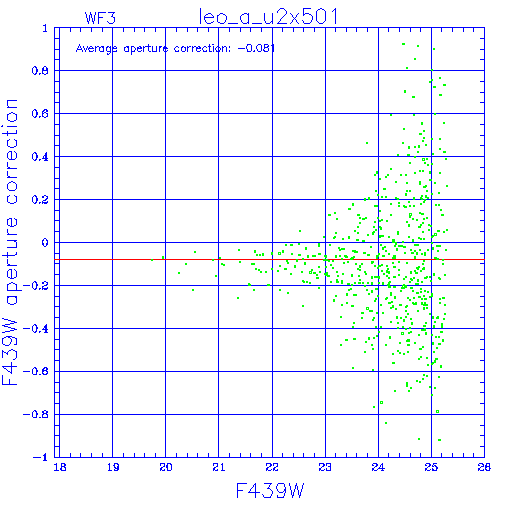

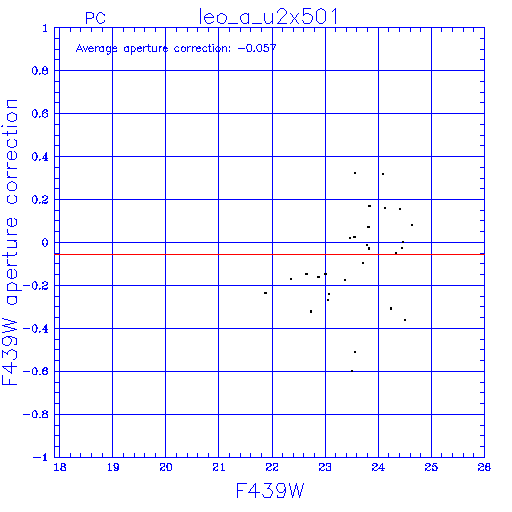

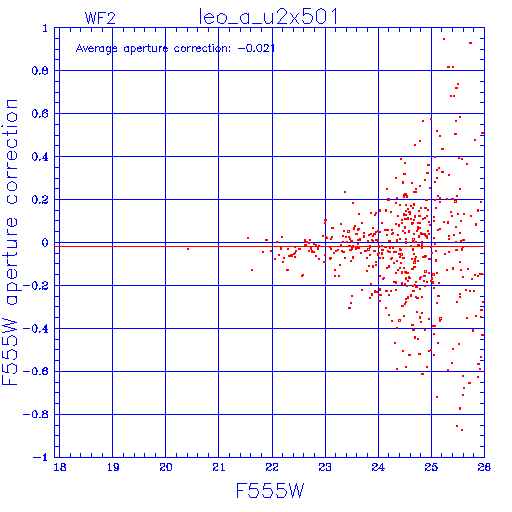

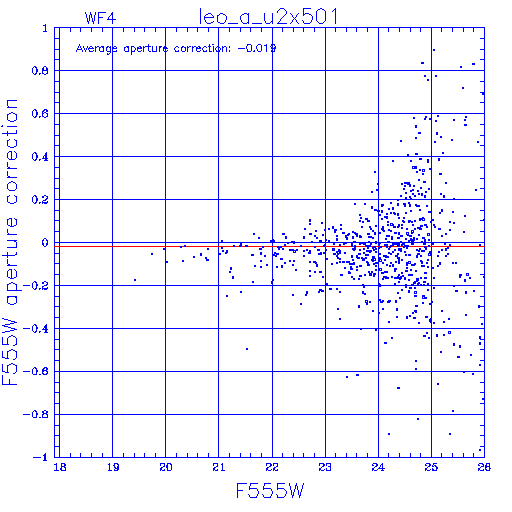

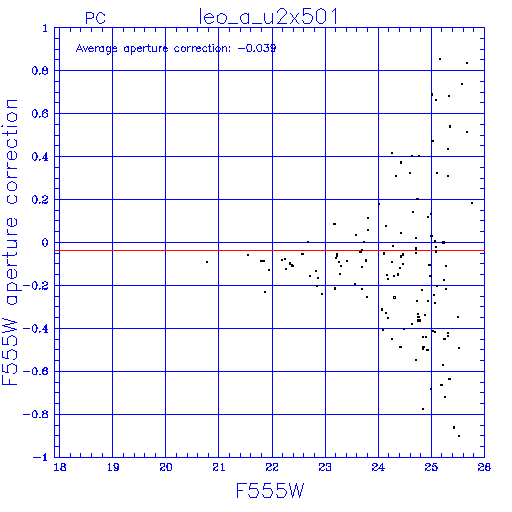

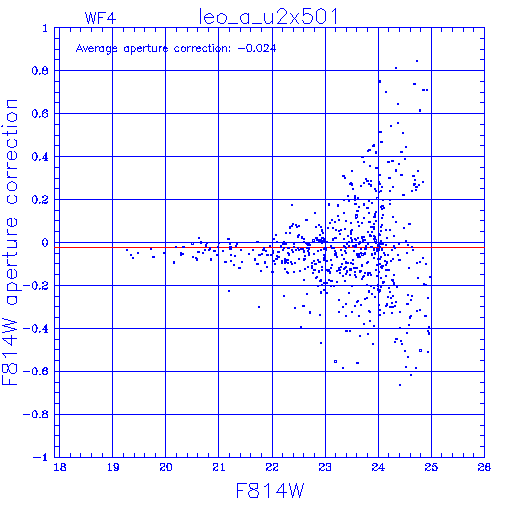

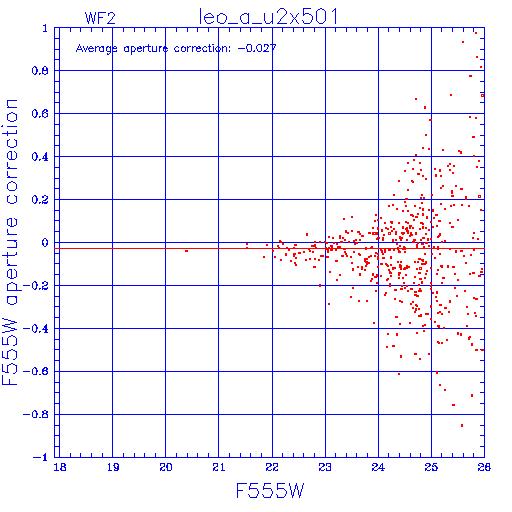

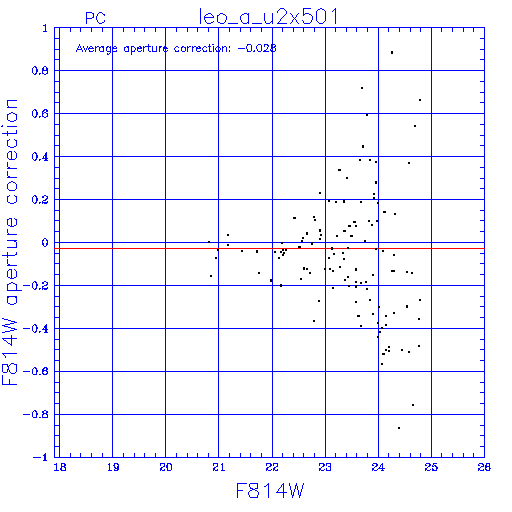

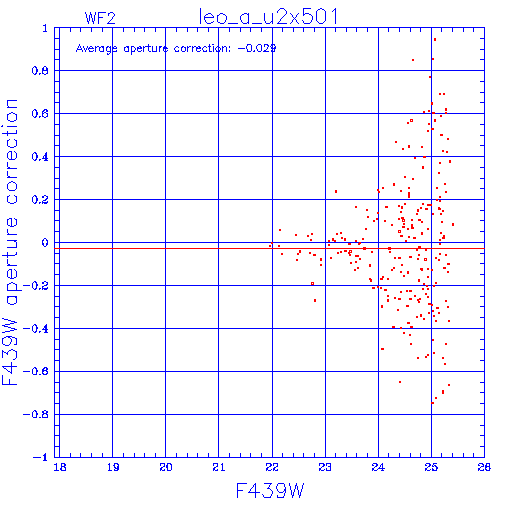

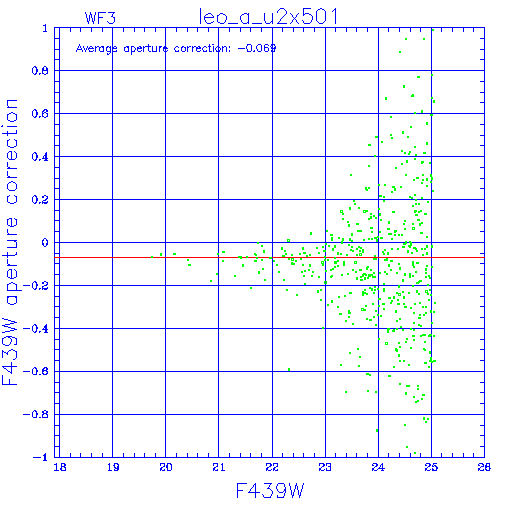

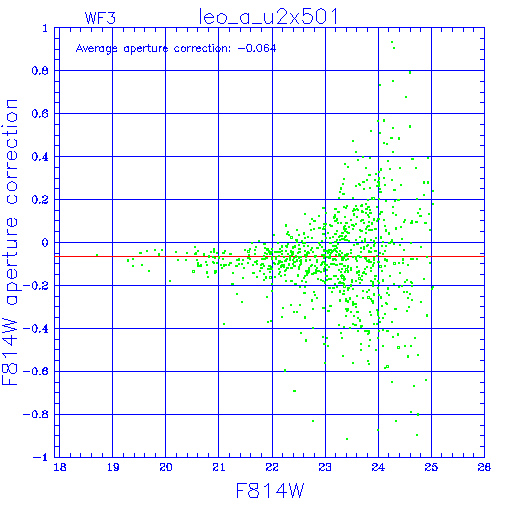

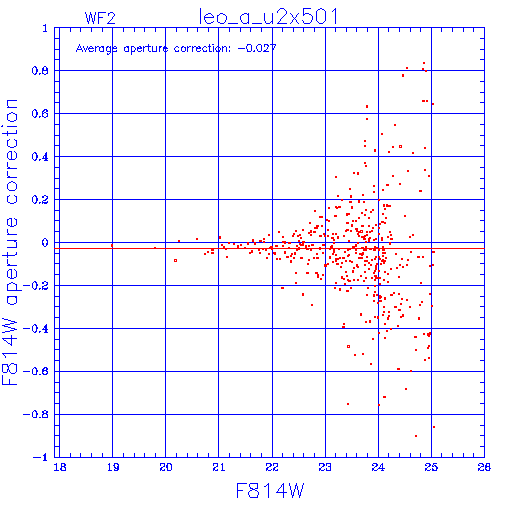

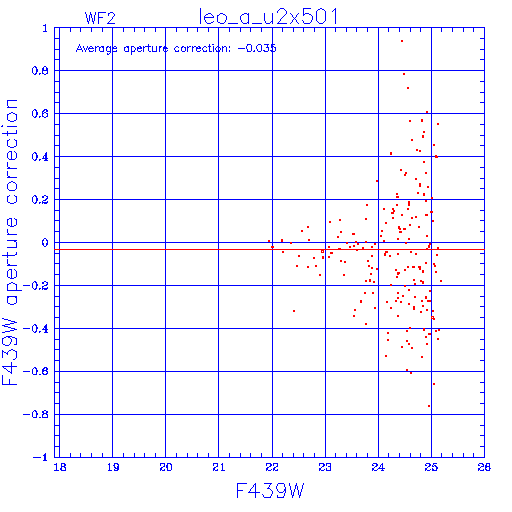

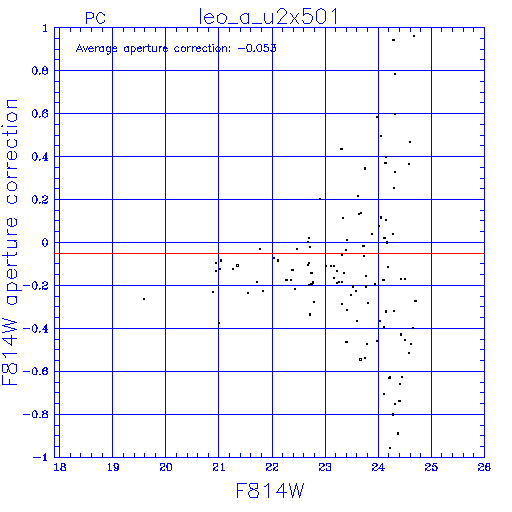

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
