Photometry Diagnostics for draco_u6dm90

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u6dm9001m	F555W	230.00	0.00	0.00	0.00	0.00	0.00	0.00
u6dm9002m	F555W	40.00	-0.07	0.07	0.00	0.00	-0.07	0.07
u6dm9003m	F555W	40.00	-0.09	0.08	0.00	0.00	-0.09	0.08
u6dm9004m	F555W	40.00	-0.09	0.09	0.00	0.00	-0.09	0.09
u6dm9005m	F555W	40.00	-0.11	0.08	0.00	0.00	-0.11	0.08
u6dm9006m	F555W	260.00	-0.09	0.05	0.00	0.00	-0.09	0.05
u6dm9007m	F814W	260.00	0.04	-0.10	0.00	0.00	0.04	-0.10
u6dm9008m	F814W	40.00	0.06	-0.11	0.00	0.00	0.06	-0.11
u6dm9009m	F814W	40.00	0.08	-0.13	0.00	0.00	0.08	-0.13
u6dm900am	F814W	40.00	0.07	-0.13	0.00	0.00	0.07	-0.13
u6dm900bm	F814W	40.00	-0.03	-0.03	0.00	0.00	-0.03	-0.03
u6dm900cm	F814W	260.00	-0.03	-0.01	0.00	0.00	-0.03	-0.01
u6dm900dm	F814W	230.00	-0.01	-0.03	0.00	0.00	-0.01	-0.03

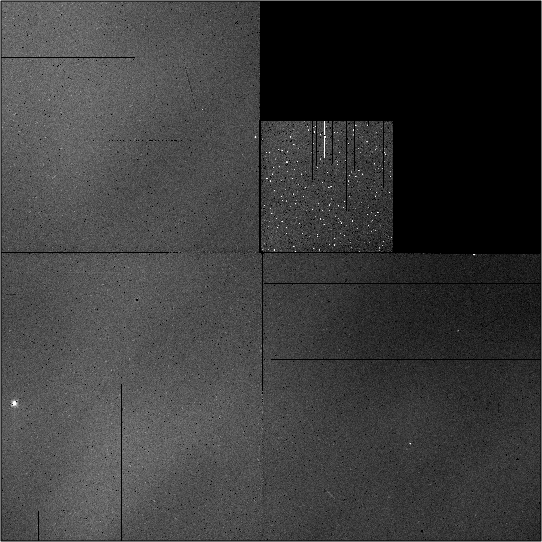

Mosaic images

F555W	F814W

HSTPHOT command log

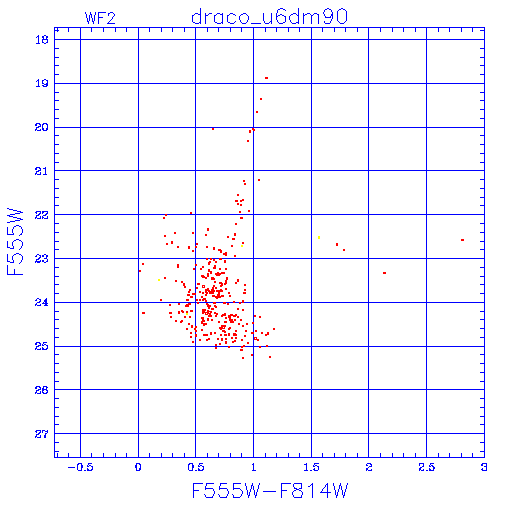

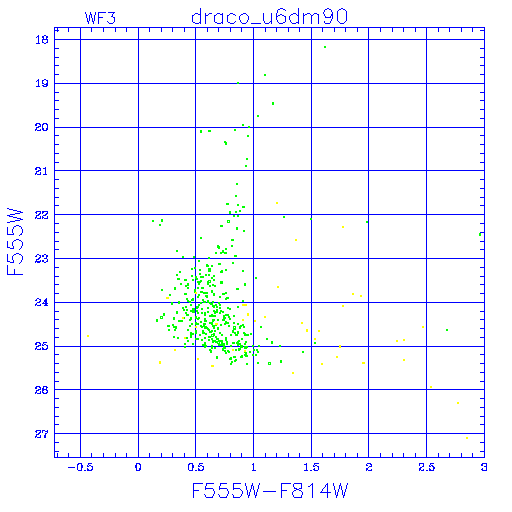

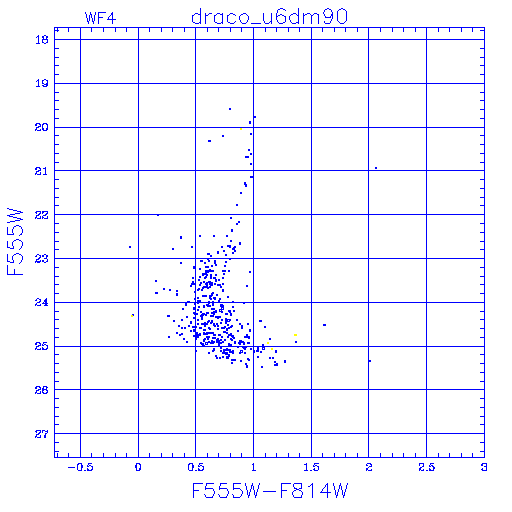

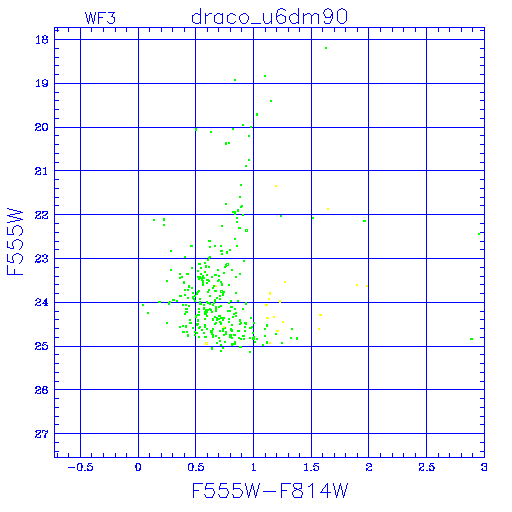

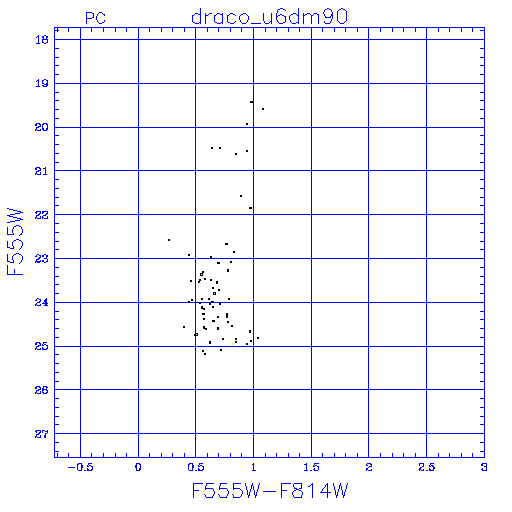

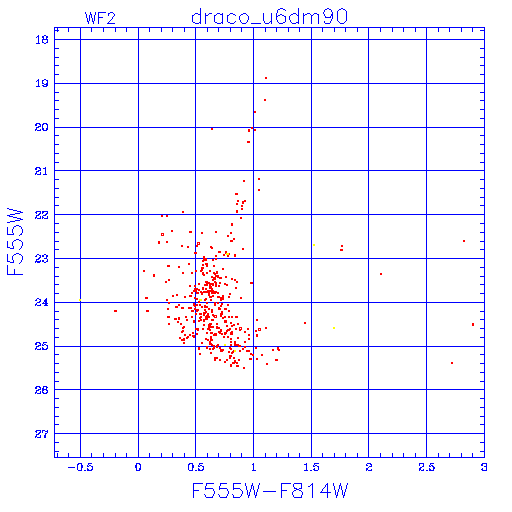

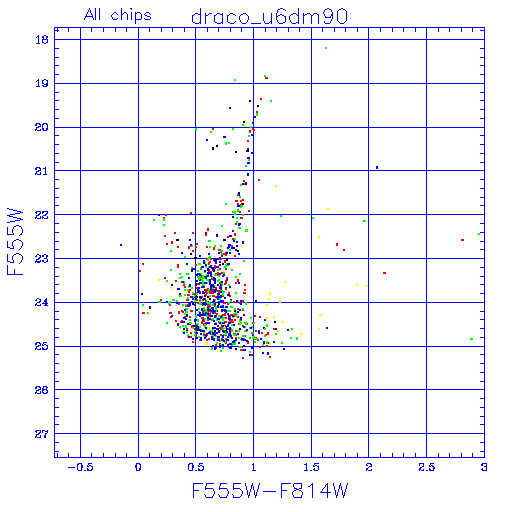

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4
PSF

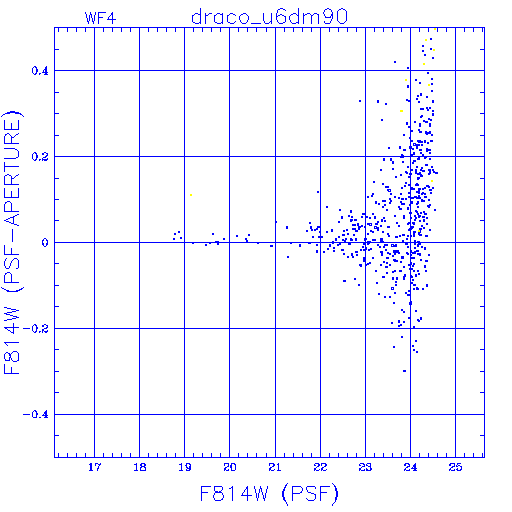

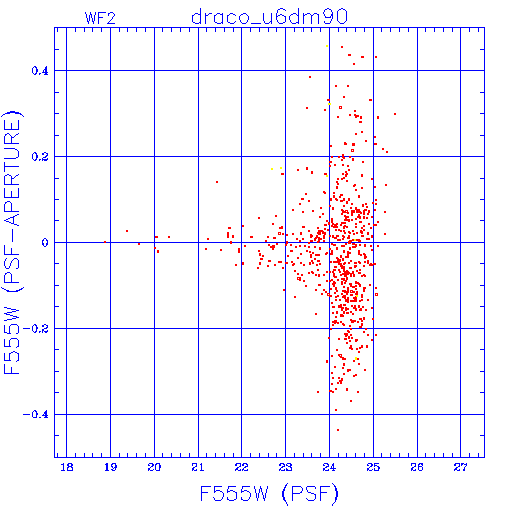

Aperture

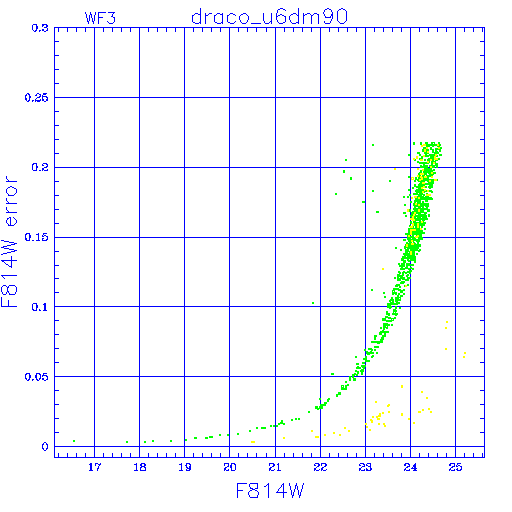

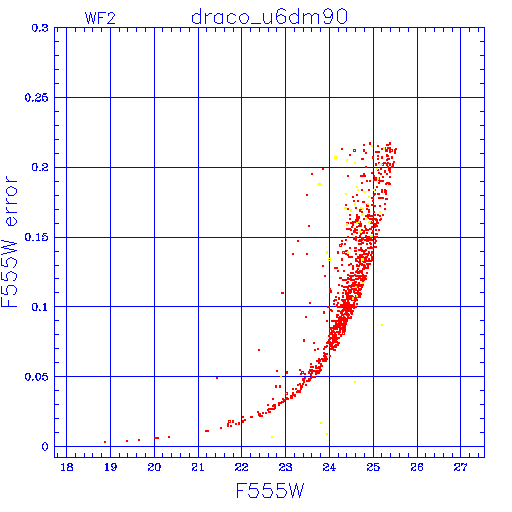

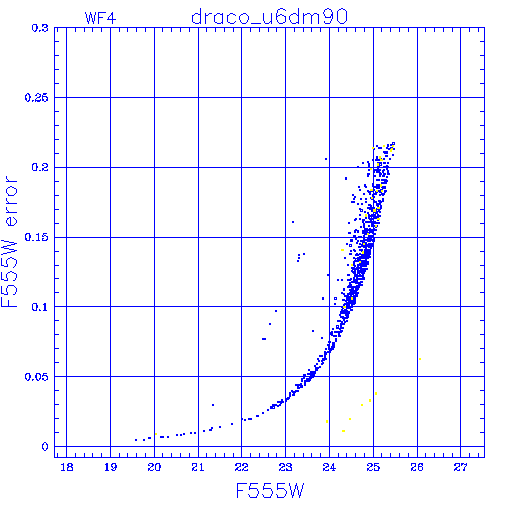

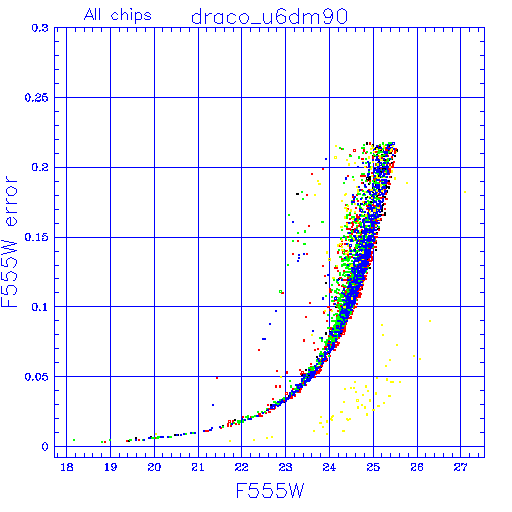

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

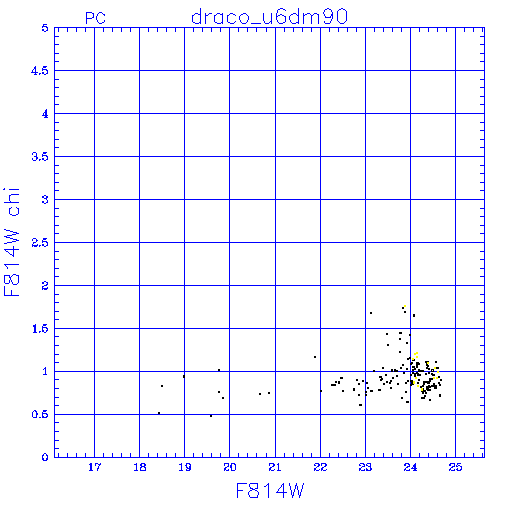

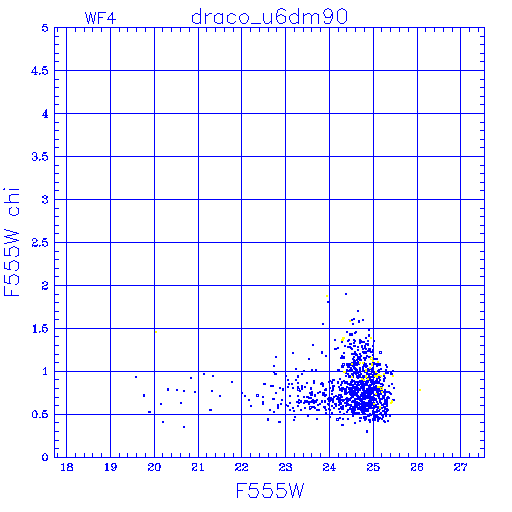

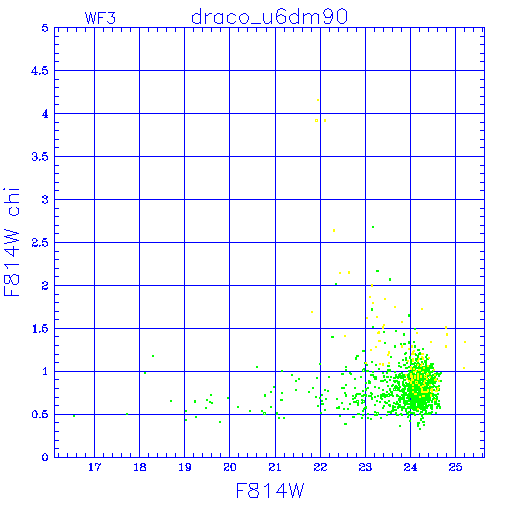

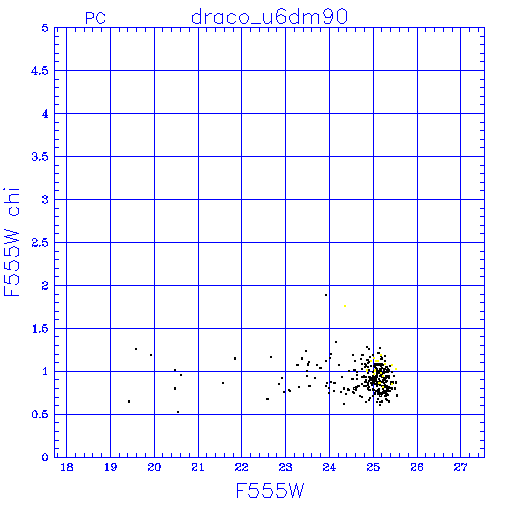

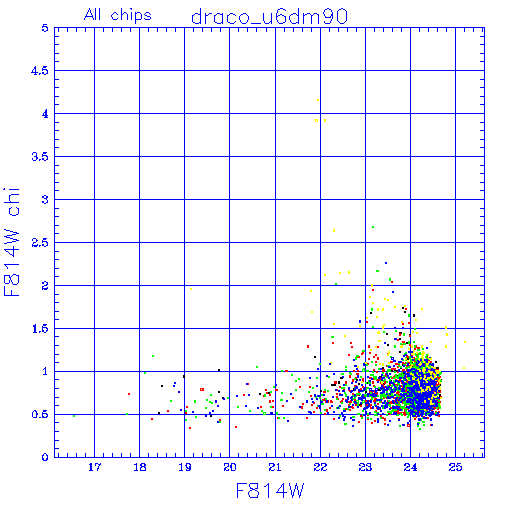

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

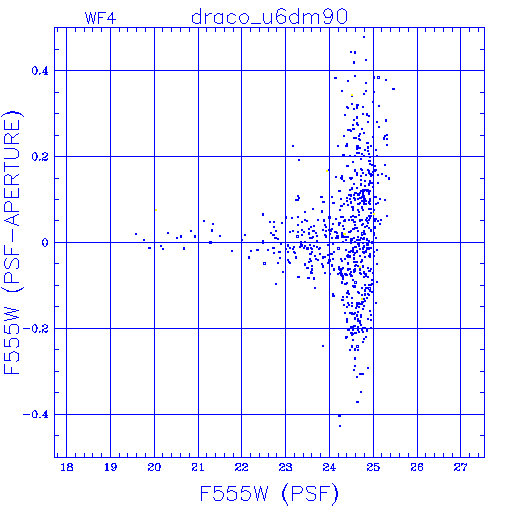

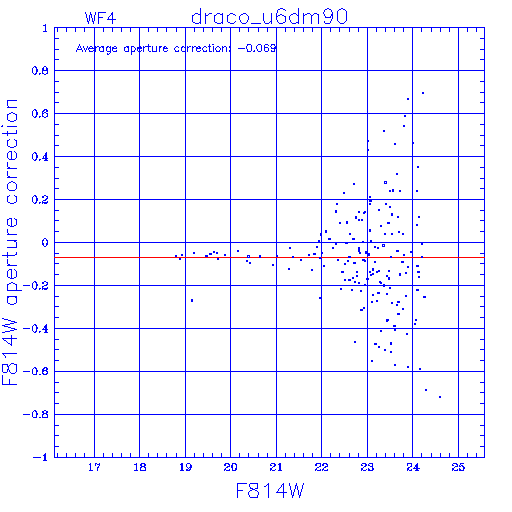

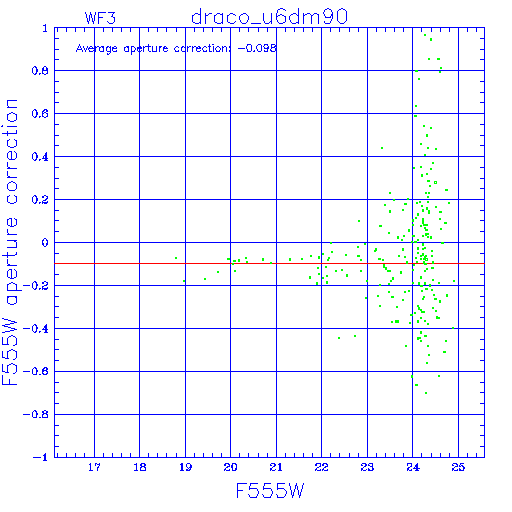

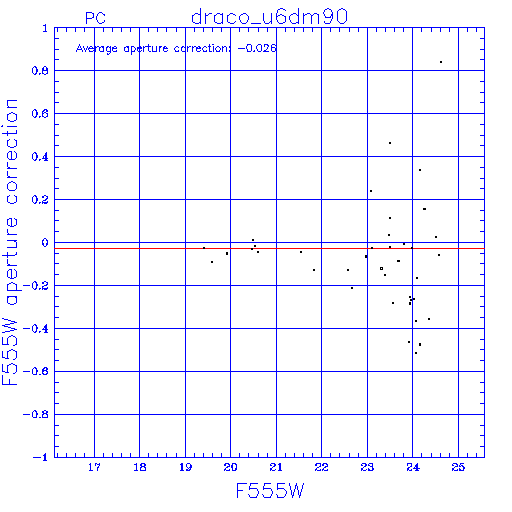

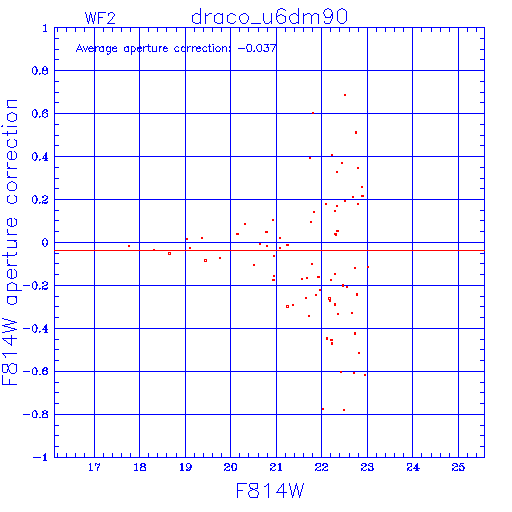

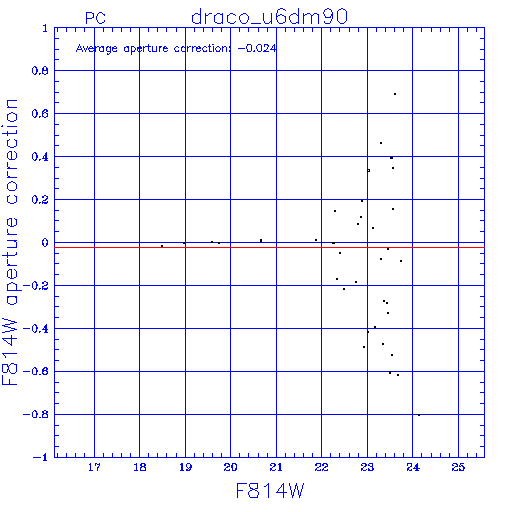

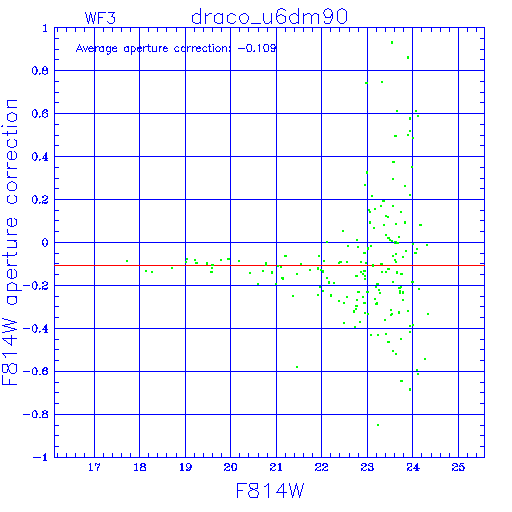

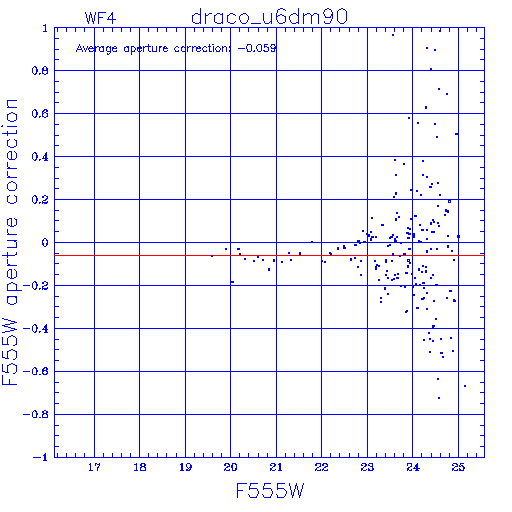

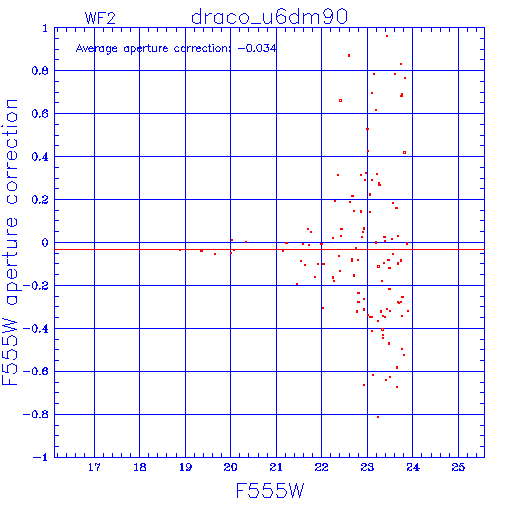

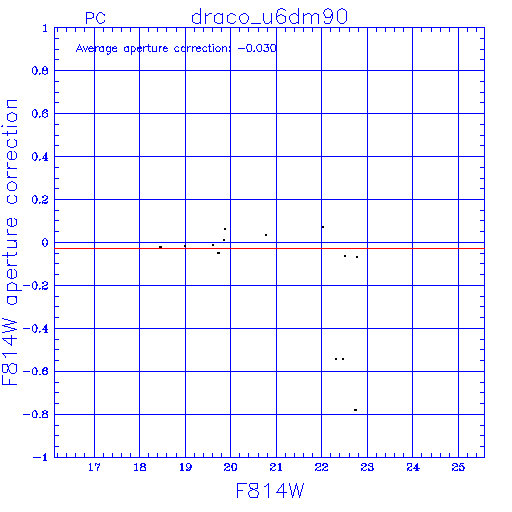

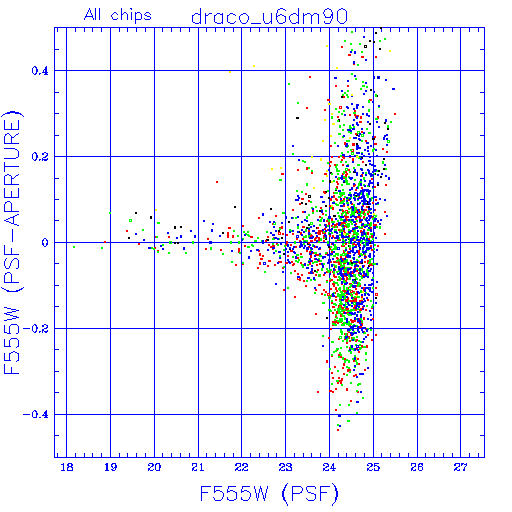

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
