Photometry Diagnostics for and_xi_u9x701

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u9x70101m	F606W	1200.00	0.00	0.00	0.00	0.00	0.00	0.00
u9x70102m	F606W	1200.00	-0.05	0.04	0.00	0.00	-0.05	0.04
u9x70103m	F606W	1200.00	10.85	5.90	11.00	5.45	-0.15	0.45
u9x70104m	F606W	1200.00	10.86	5.75	11.00	5.45	-0.14	0.30
u9x70105m	F606W	1200.00	16.57	17.03	16.53	16.42	0.04	0.61
u9x70106m	F606W	1200.00	16.55	16.93	16.53	16.42	0.02	0.51
u9x70107m	F606W	1200.00	5.31	11.18	5.53	10.97	-0.22	0.21
u9x70108m	F606W	1200.00	5.27	11.18	5.53	10.97	-0.26	0.21
u9x70201m	F606W	1200.00	-8.46	-8.34	-8.27	-8.21	-0.19	-0.13
u9x70202m	F606W	1200.00	-8.54	-8.36	-8.27	-8.21	-0.27	-0.15
u9x70203m	F606W	1200.00	2.50	-2.38	2.74	-2.76	-0.24	0.38
u9x70204m	F606W	1200.00	2.53	-2.45	2.74	-2.76	-0.21	0.31
u9x70205m	F606W	1200.00	8.35	8.66	8.27	8.21	0.08	0.45
u9x70206m	F606W	1200.00	8.31	8.66	8.27	8.21	0.04	0.45
u9x70207m	F606W	1200.00	-2.79	2.90	-2.74	2.76	-0.05	0.14
u9x70208m	F606W	1200.00	-2.80	2.84	-2.74	2.76	-0.06	0.08
u9x70301n	F814W	1200.00	-0.21	0.13	0.00	0.00	-0.21	0.13
u9x70302n	F814W	1200.00	-0.20	0.17	0.00	0.00	-0.20	0.17
u9x70303n	F814W	1200.00	10.83	6.09	11.00	5.45	-0.17	0.64
u9x70304n	F814W	1200.00	10.84	6.03	11.00	5.45	-0.16	0.58
u9x70305n	F814W	1200.00	16.24	17.04	16.53	16.42	-0.29	0.62
u9x70306n	F814W	1200.00	16.27	16.95	16.53	16.42	-0.26	0.53
u9x70307m	F814W	1200.00	5.17	11.28	5.53	10.97	-0.36	0.31
u9x70308m	F814W	1200.00	5.20	11.28	5.53	10.97	-0.33	0.31
u9x70401m	F814W	0.50	-8.45	-6.97	-8.27	-8.21	-0.18	1.24
u9x70402m	F814W	0.50	-10.81	-6.70	-8.27	-8.21	-2.54	1.51
u9x70403m	F814W	1200.00	2.25	-2.24	2.74	-2.76	-0.49	0.52
u9x70404m	F814W	1200.00	2.27	-2.26	2.74	-2.76	-0.47	0.50
u9x70405m	F814W	0.50	5.90	6.71	8.27	8.21	-2.37	-1.50
u9x70406m	F814W	0.50	9.31	8.57	8.27	8.21	1.04	0.36
u9x70407m	F814W	1200.00	-3.22	3.16	-2.74	2.76	-0.48	0.40
u9x70408m	F814W	1200.00	-3.15	3.11	-2.74	2.76	-0.41	0.35
u9x70501m	F814W	1200.00	-3.15	-2.32	-2.78	-2.76	-0.37	0.44
u9x70502m	F814W	1200.00	-3.06	-2.35	-2.78	-2.76	-0.28	0.41
u9x70503m	F814W	1200.00	7.88	3.12	8.22	2.69	-0.34	0.43
u9x70504m	F814W	1200.00	7.96	3.09	8.22	2.69	-0.26	0.40
u9x70505m	F814W	1200.00	13.47	14.25	13.76	13.66	-0.29	0.59
u9x70506m	F814W	1200.00	13.50	14.24	13.76	13.66	-0.26	0.58
u9x70507m	F814W	1200.00	2.30	8.68	2.75	8.21	-0.45	0.47
u9x70508m	F814W	1200.00	2.40	8.64	2.75	8.21	-0.35	0.43
u9x70509m	F814W	1200.00	5.15	5.92	5.49	5.45	-0.34	0.47
u9x7050am	F814W	1200.00	5.09	5.95	5.49	5.45	-0.40	0.50

Mosaic images

F606W	F814W

HSTPHOT command log

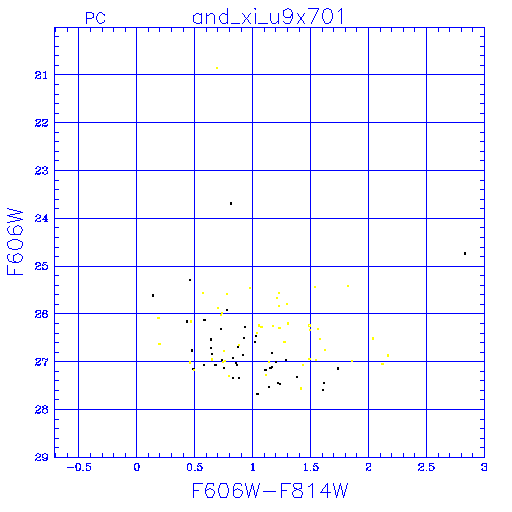

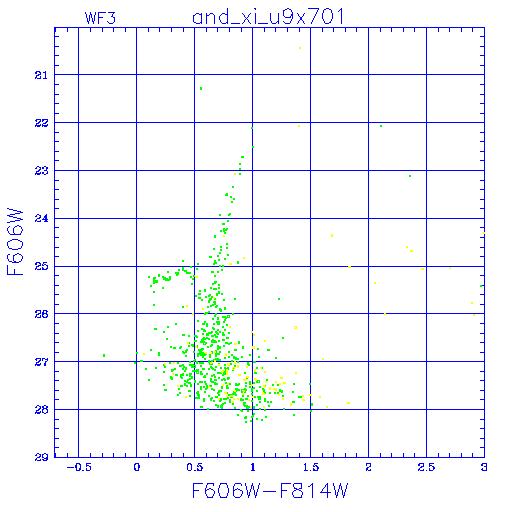

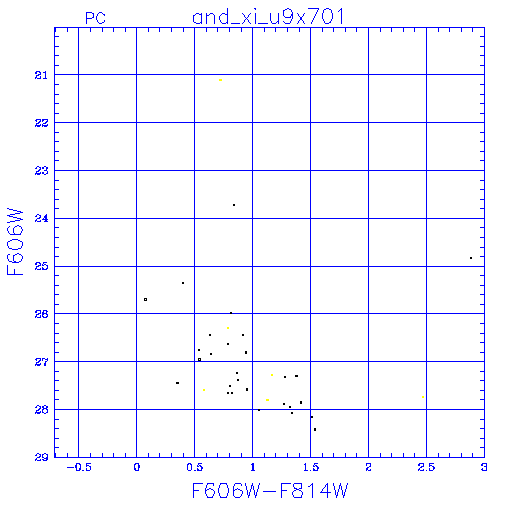

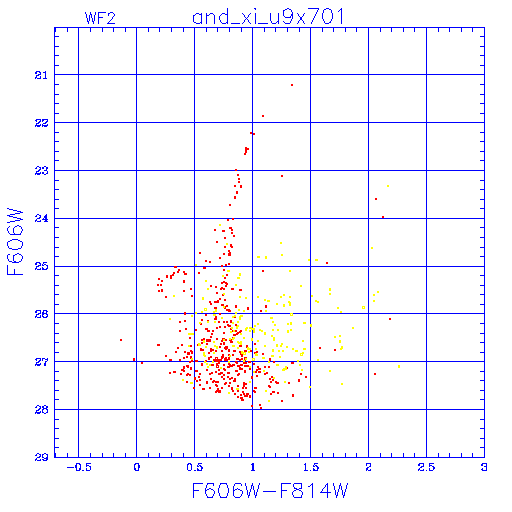

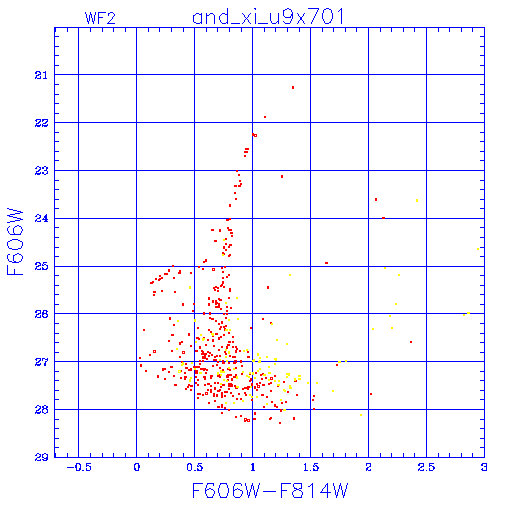

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4

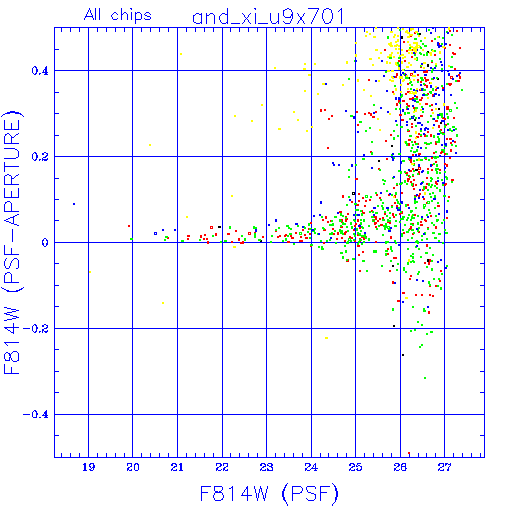

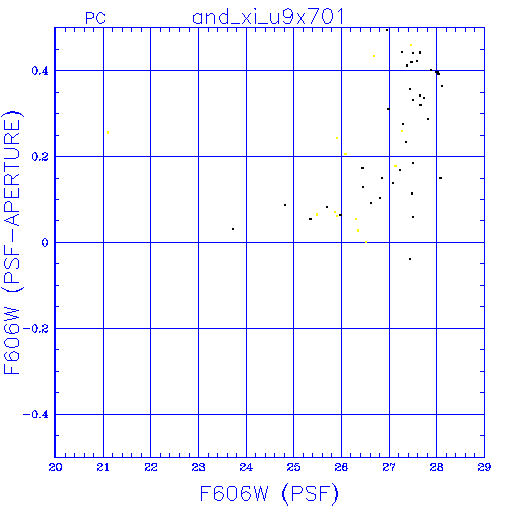

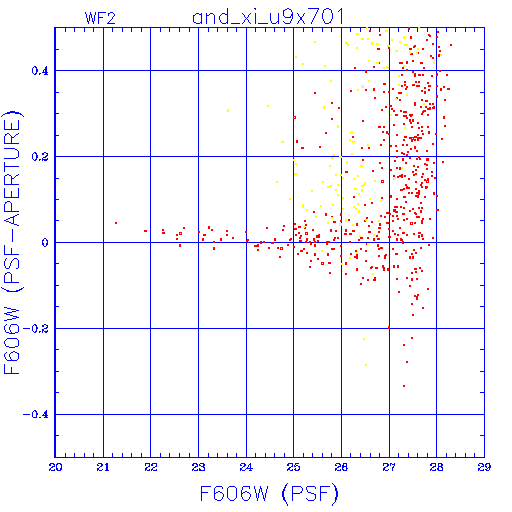

PSF
Aperture

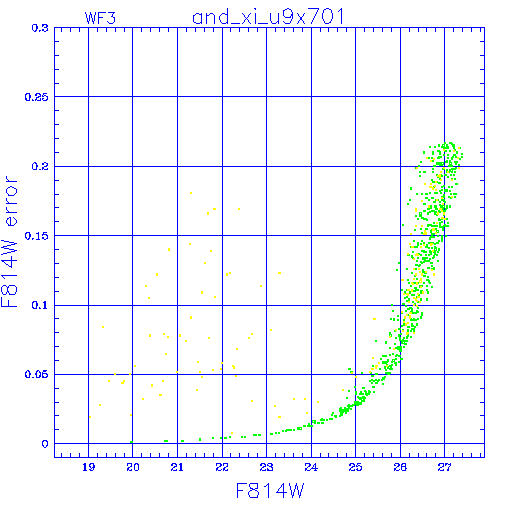

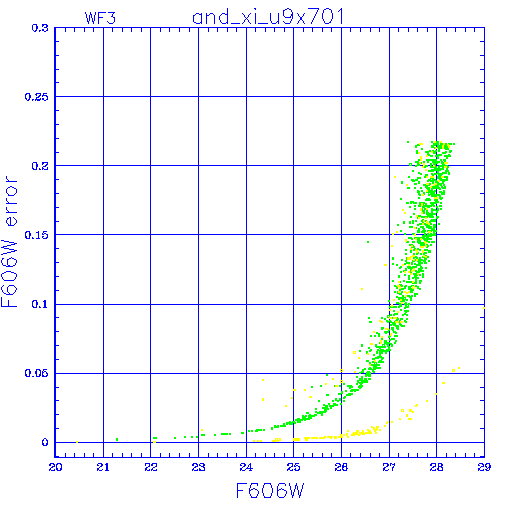

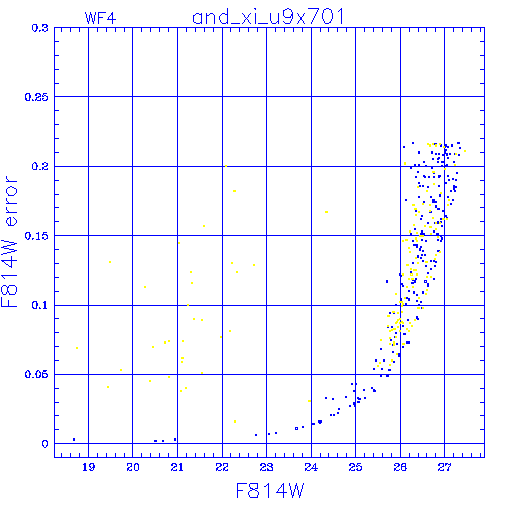

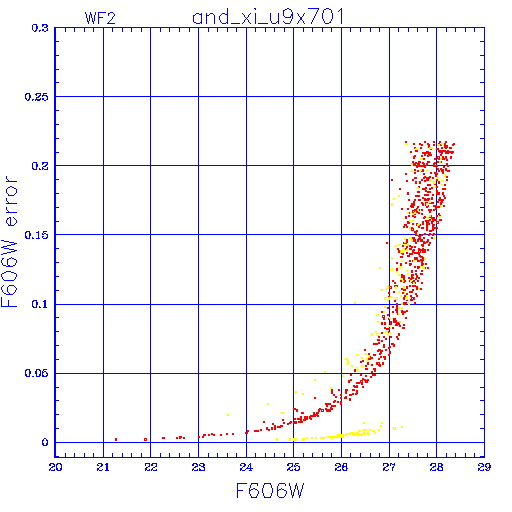

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f606w
f814w

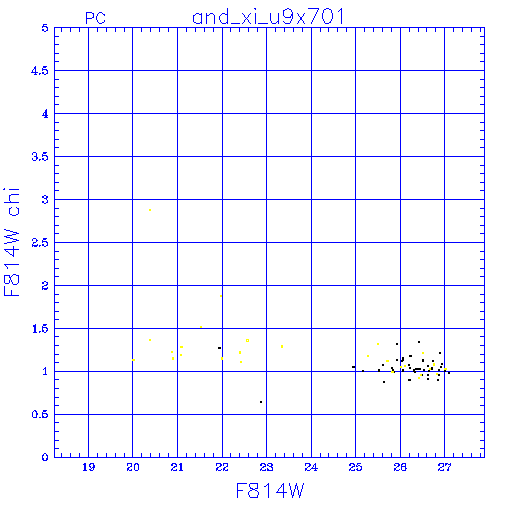

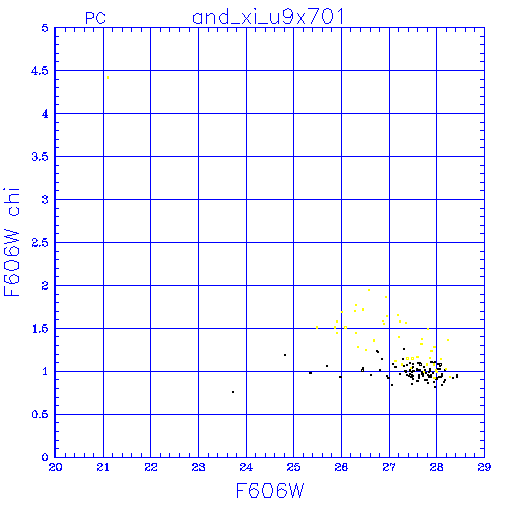

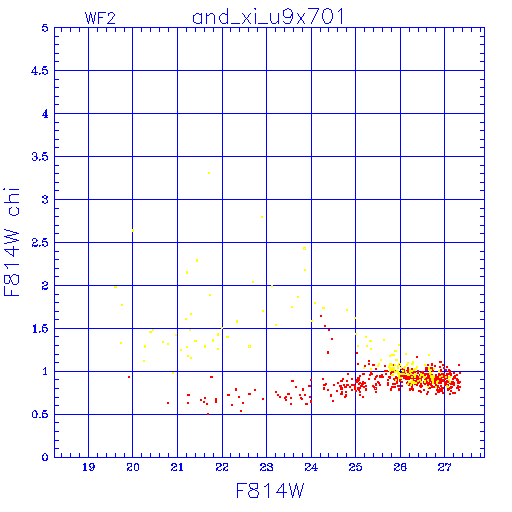

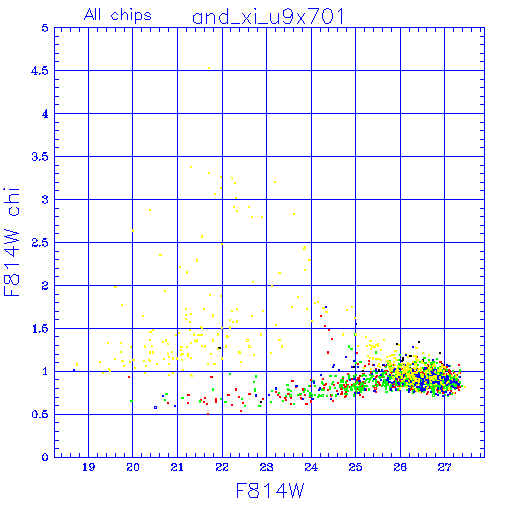

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f606w
f814w

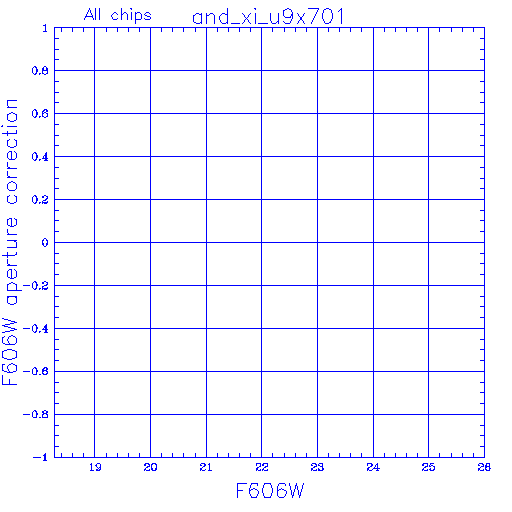

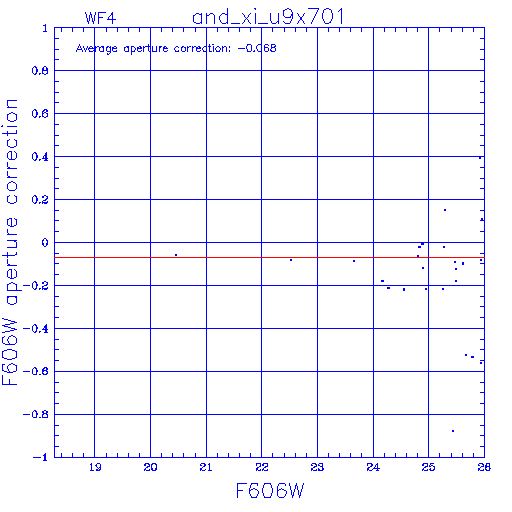

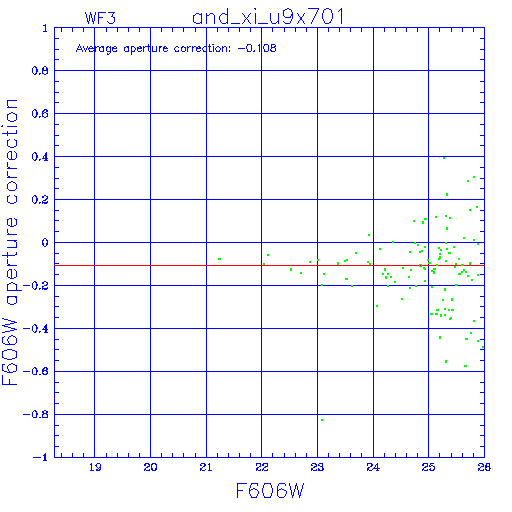

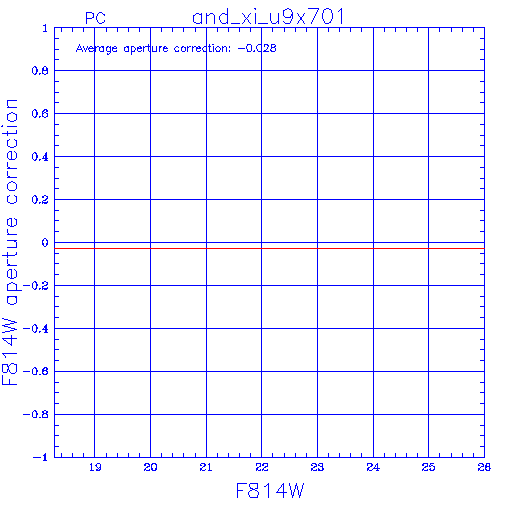

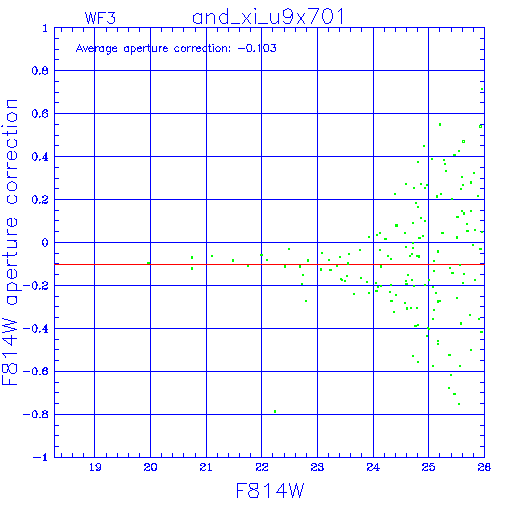

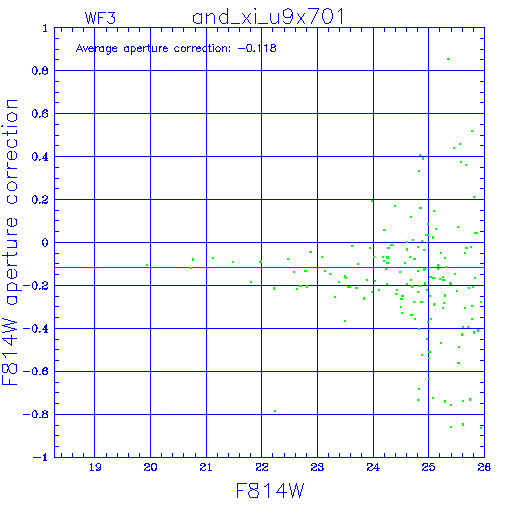

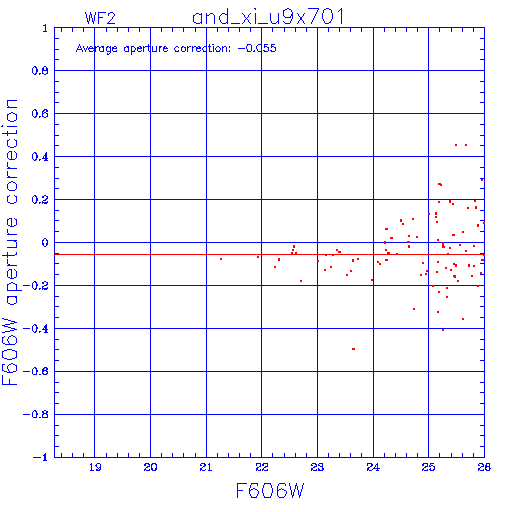

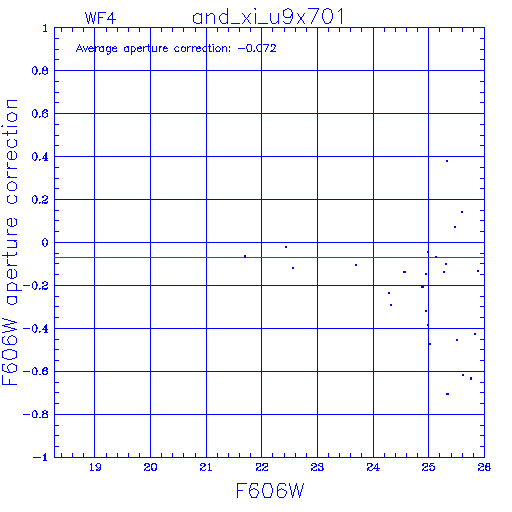

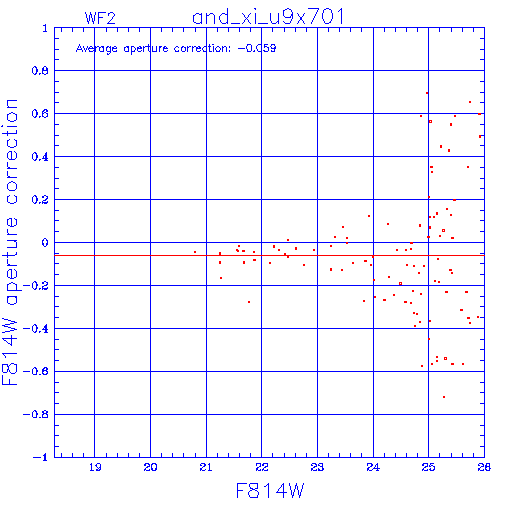

Aperture corrections

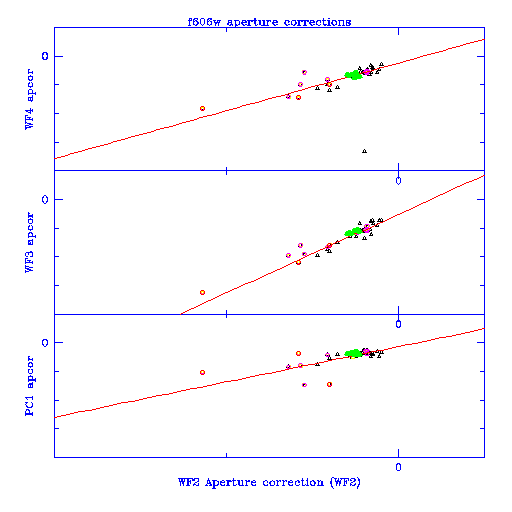

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
