Photometry Diagnostics for and_vi_u5c703

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u5c70301r	F555W	1300.00	0.00	0.00	0.00	0.00	0.00	0.00
u5c70302r	F555W	1100.00	0.02	0.05	0.00	0.00	0.02	0.05
u5c70303r	F555W	1100.00	0.04	0.00	0.00	0.00	0.04	0.00
u5c70304r	F555W	1100.00	0.08	0.01	0.00	0.00	0.08	0.01
u5c70401r	F555W	1100.00	-21.27	21.18	-20.79	20.95	-0.48	0.23
u5c70402r	F555W	1100.00	-21.21	21.06	-20.79	20.95	-0.42	0.11
u5c70403r	F555W	1100.00	-21.34	21.18	-20.79	20.95	-0.55	0.23
u5c70404r	F555W	1100.00	-21.27	21.28	-20.79	20.95	-0.48	0.33
u5c70305r	F450W	1100.00	-0.31	-0.22	0.00	0.00	-0.31	-0.22
u5c70306r	F450W	1300.00	-0.24	-0.09	0.00	0.00	-0.24	-0.09
u5c70307r	F450W	1300.00	-0.25	-0.05	0.00	0.00	-0.25	-0.05
u5c70308r	F450W	1300.00	-0.16	-0.09	0.00	0.00	-0.16	-0.09
u5c70309r	F450W	1300.00	-0.26	-0.21	0.00	0.00	-0.26	-0.21
u5c7030ar	F450W	1300.00	-0.18	-0.10	0.00	0.00	-0.18	-0.10
u5c7030br	F450W	1300.00	-0.23	-0.05	0.00	0.00	-0.23	-0.05
u5c7030cr	F450W	1300.00	-0.21	-0.01	0.00	0.00	-0.21	-0.01
u5c70405r	F450W	1300.00	-21.67	20.94	-20.79	20.95	-0.88	-0.01
u5c70406r	F450W	1300.00	-21.55	20.94	-20.79	20.95	-0.76	-0.01
u5c70407r	F450W	1300.00	-21.60	20.93	-20.79	20.95	-0.81	-0.02
u5c70408r	F450W	1300.00	-21.54	20.95	-20.79	20.95	-0.75	0.00
u5c70409r	F450W	1300.00	-21.62	21.01	-20.79	20.95	-0.83	0.06
u5c7040ar	F450W	1300.00	-21.51	21.01	-20.79	20.95	-0.72	0.06
u5c7040br	F450W	1300.00	-21.53	20.99	-20.79	20.95	-0.74	0.04
u5c7040cr	F450W	1300.00	-21.48	20.96	-20.79	20.95	-0.69	0.01

Mosaic images

F555W	F450W

HSTPHOT command log

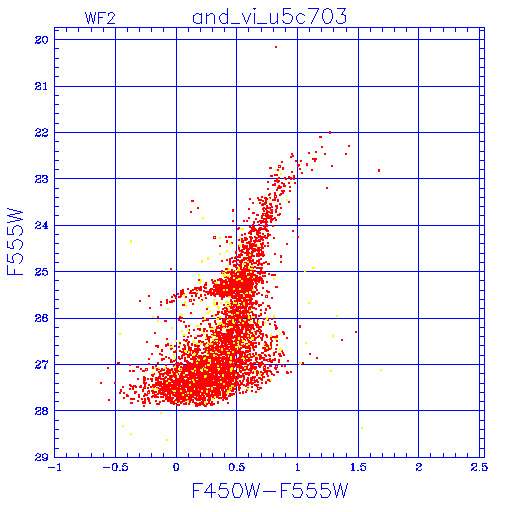

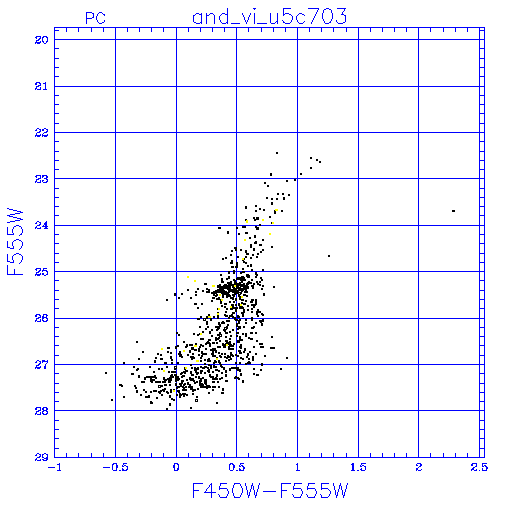

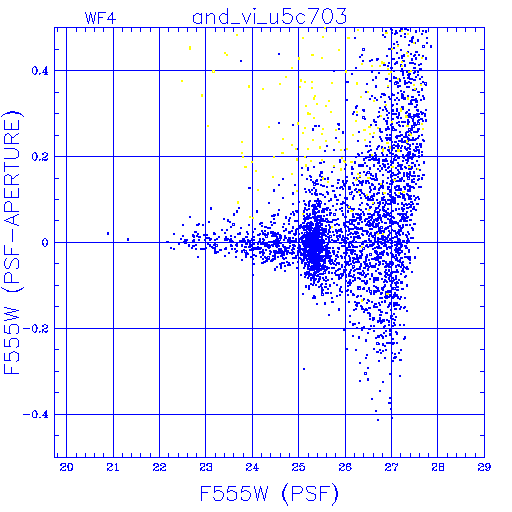

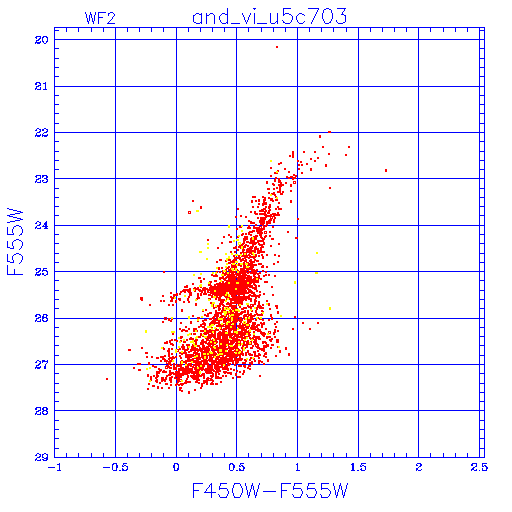

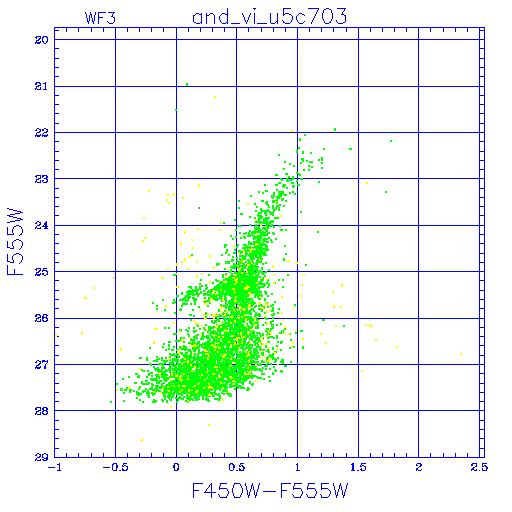

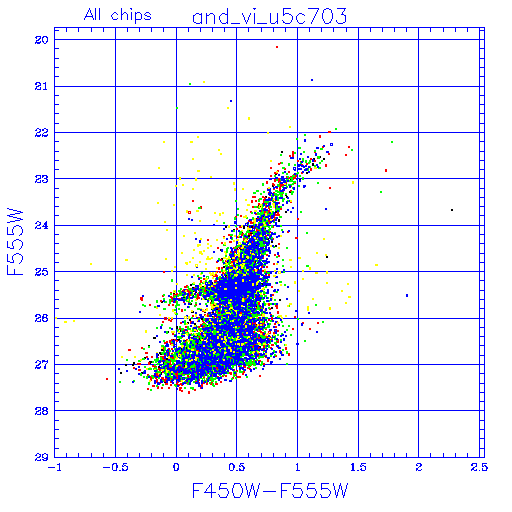

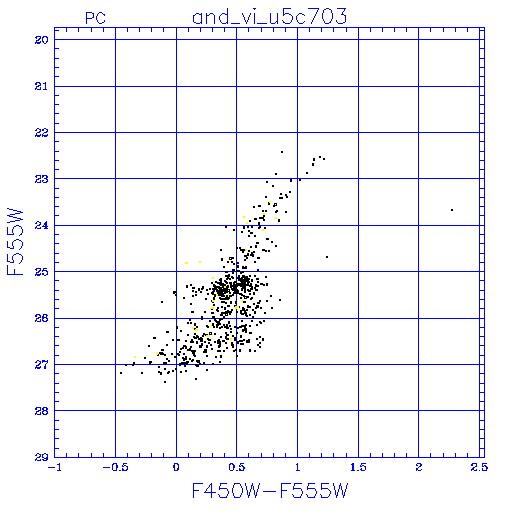

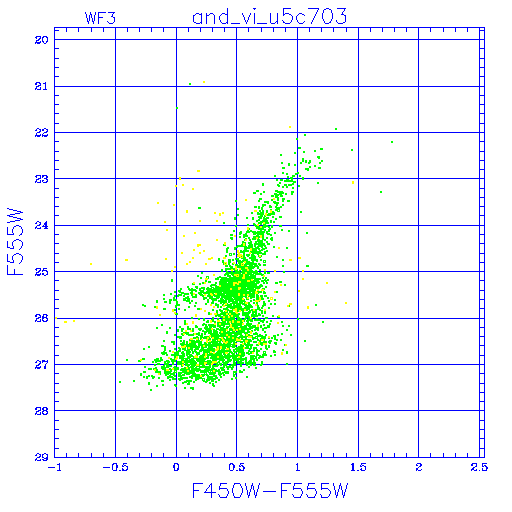

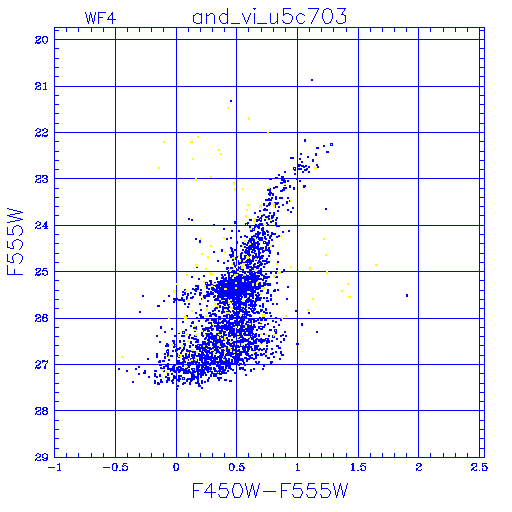

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4
PSF
Aperture

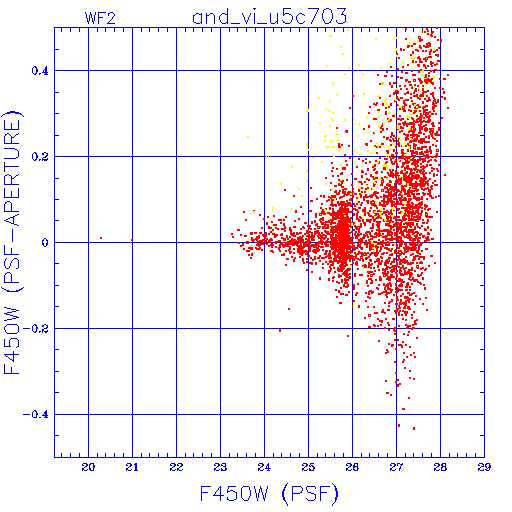

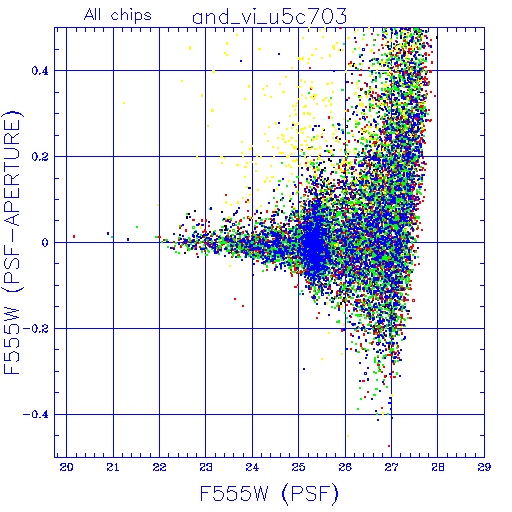

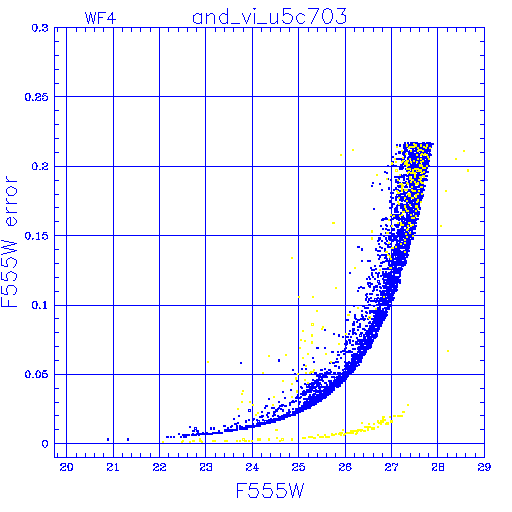

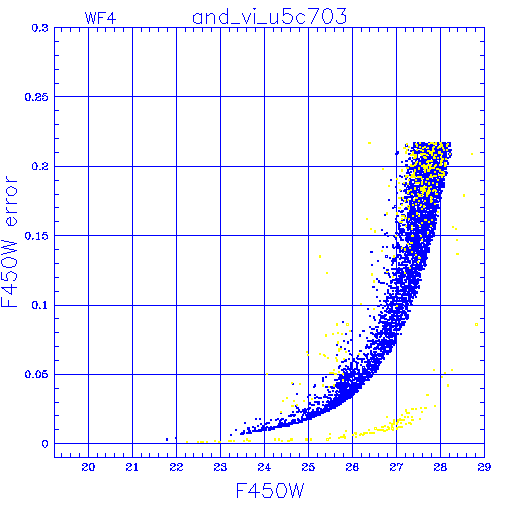

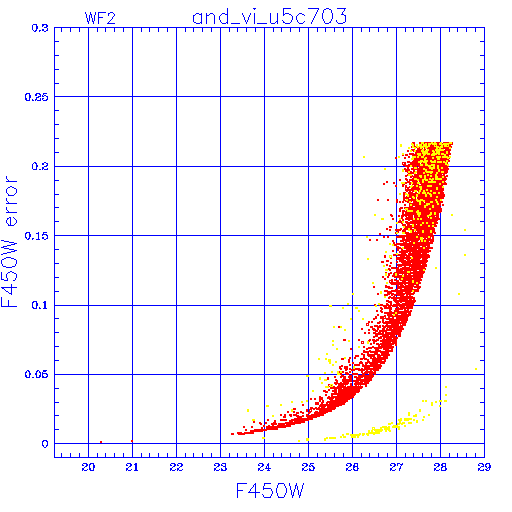

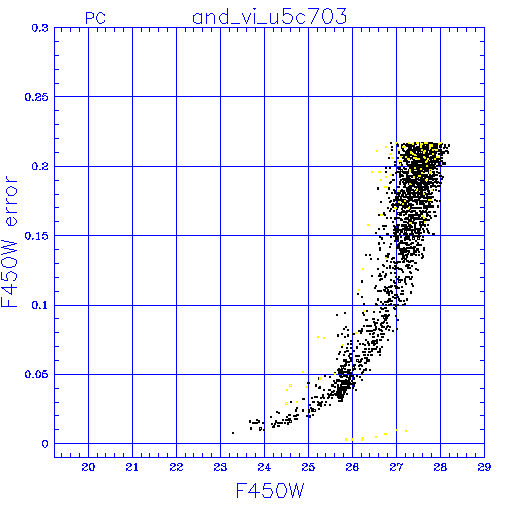

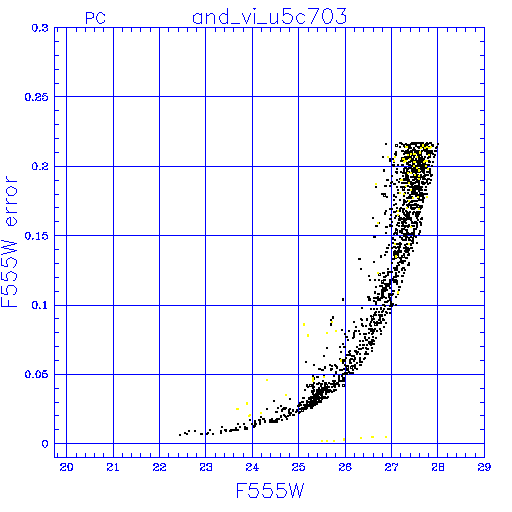

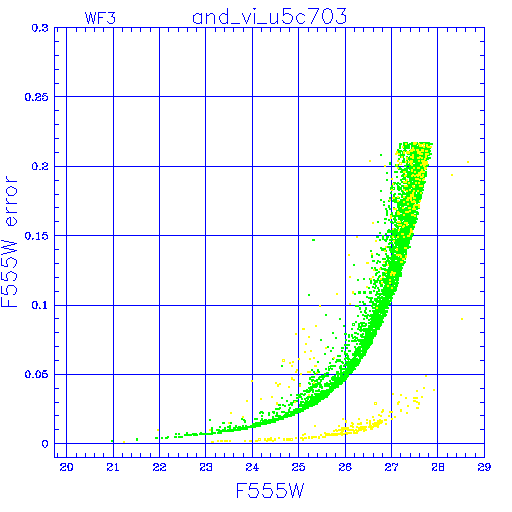

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f450w

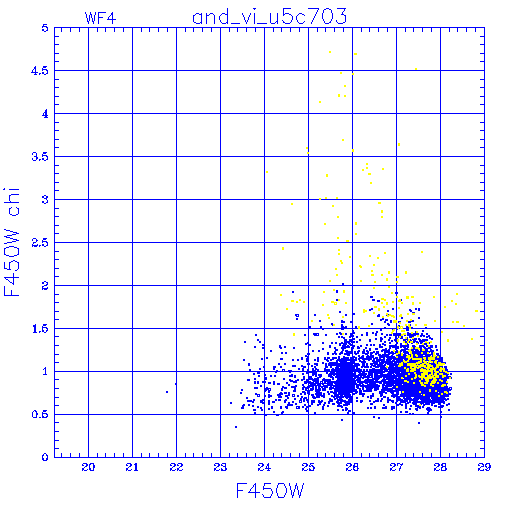

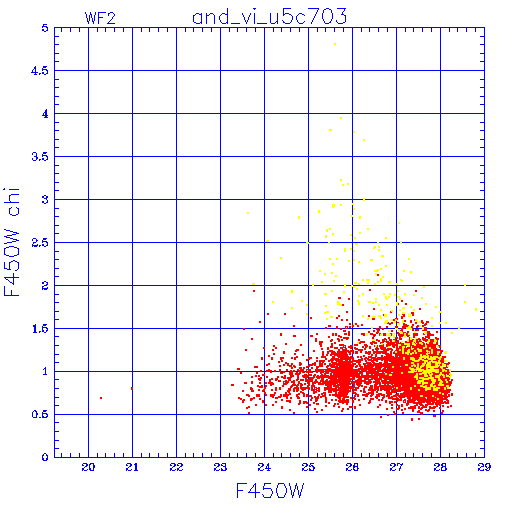

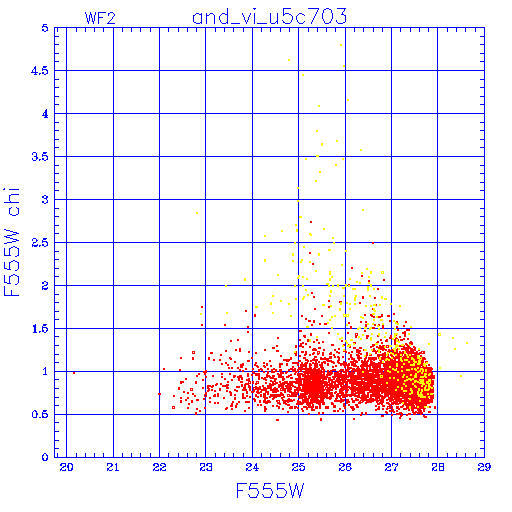

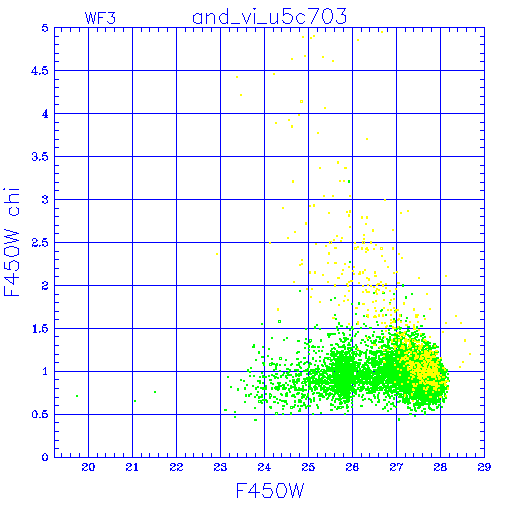

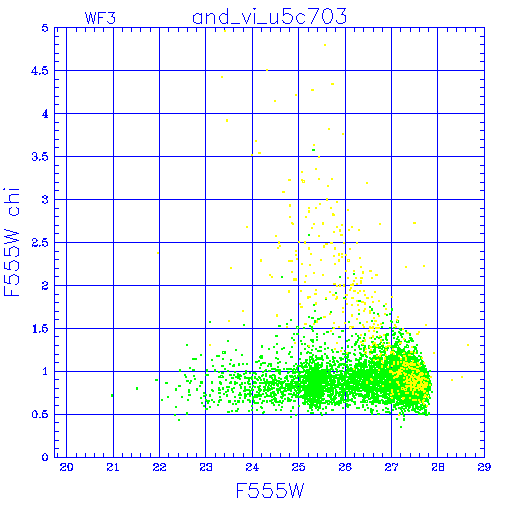

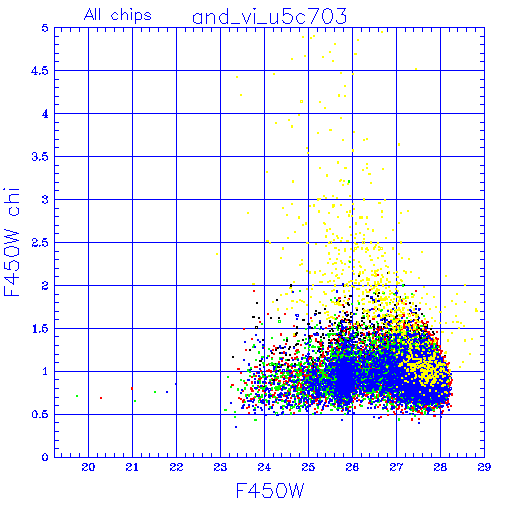

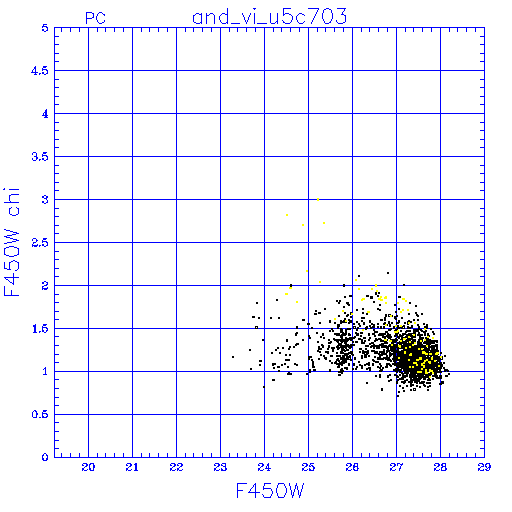

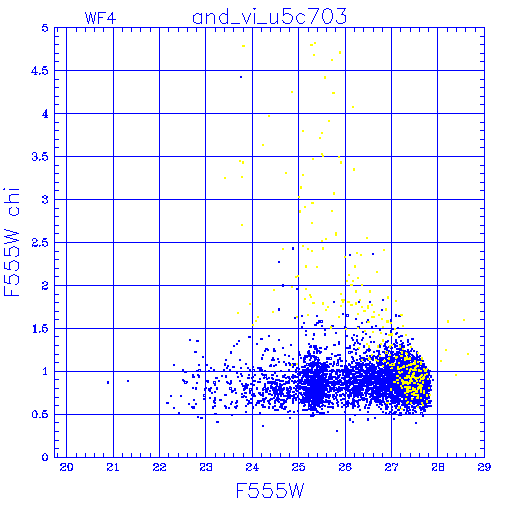

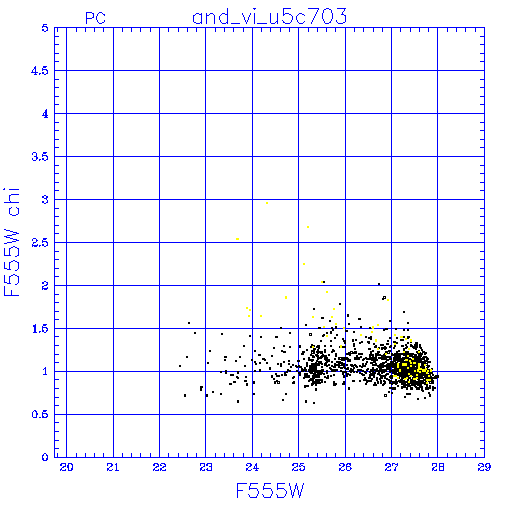

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f450w

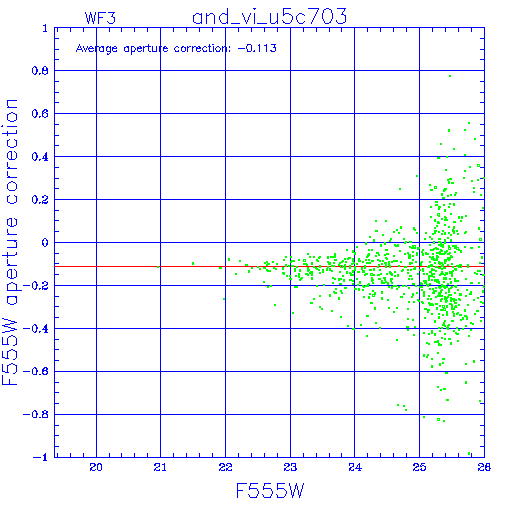

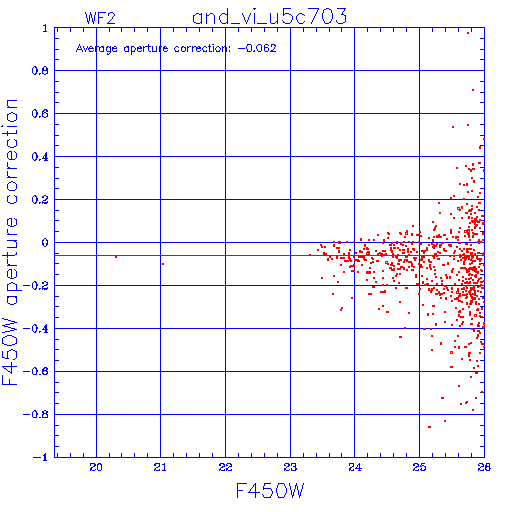

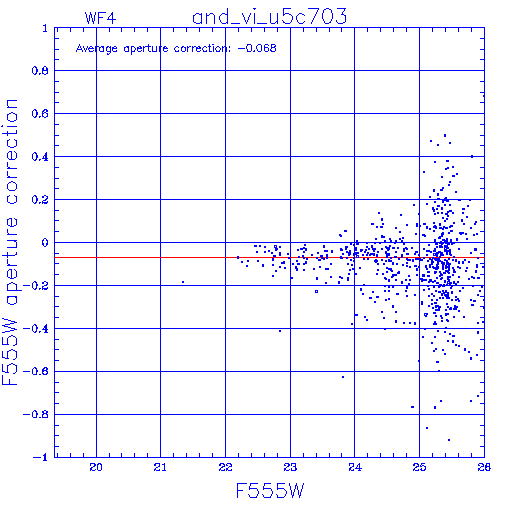

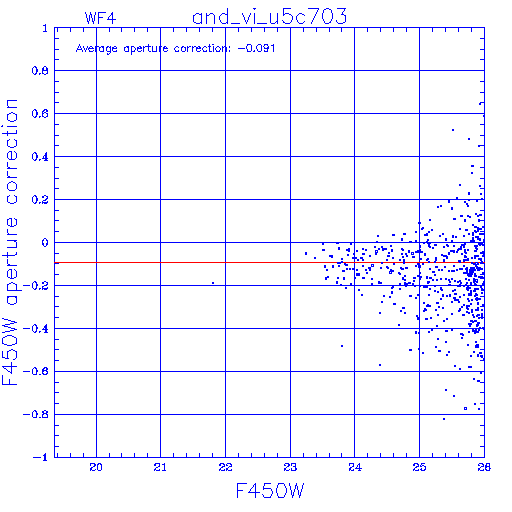

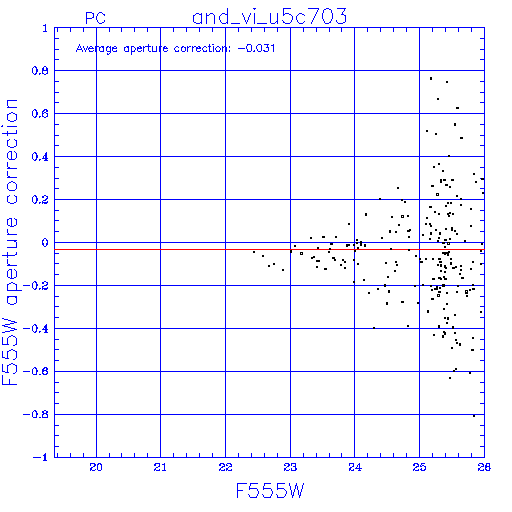

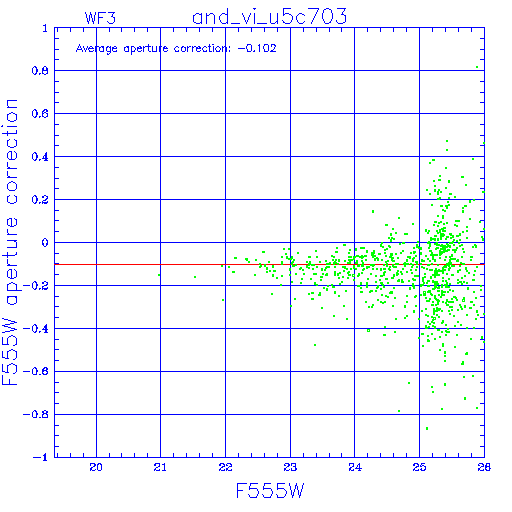

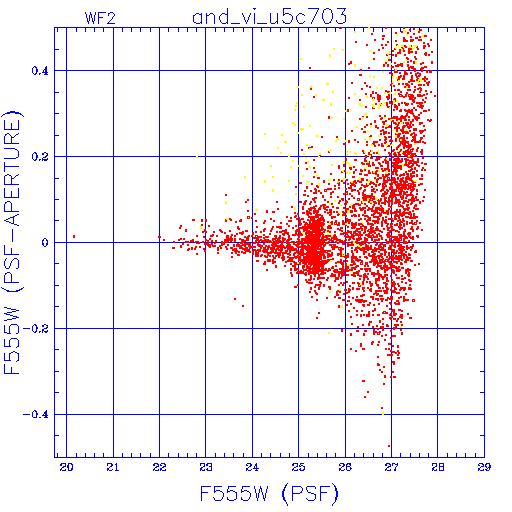

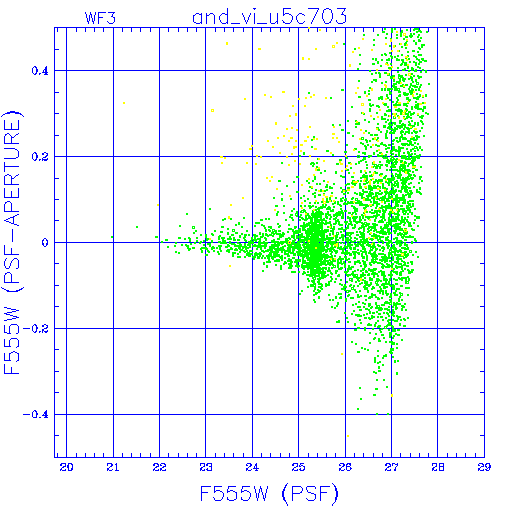

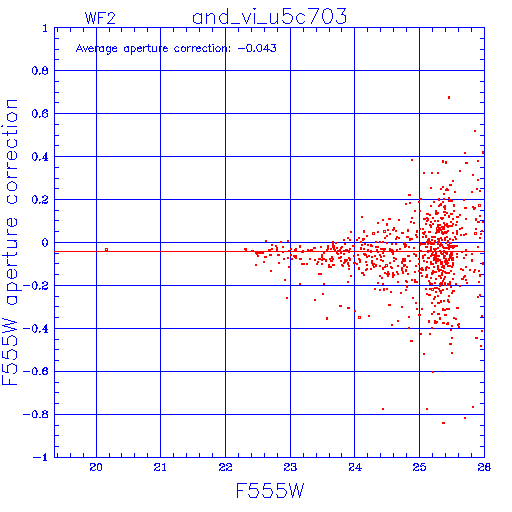

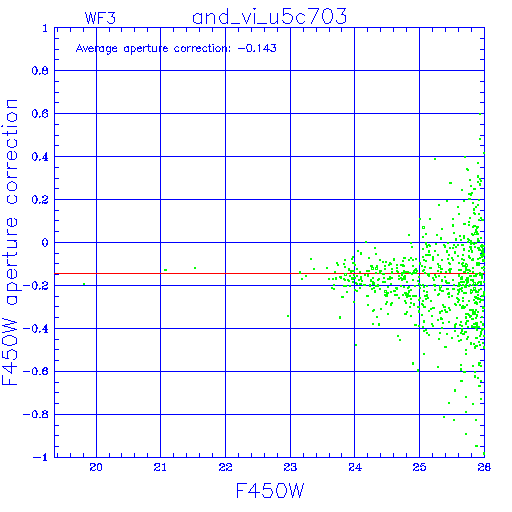

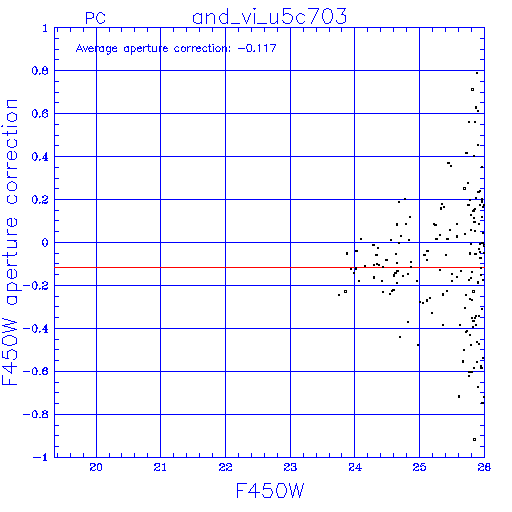

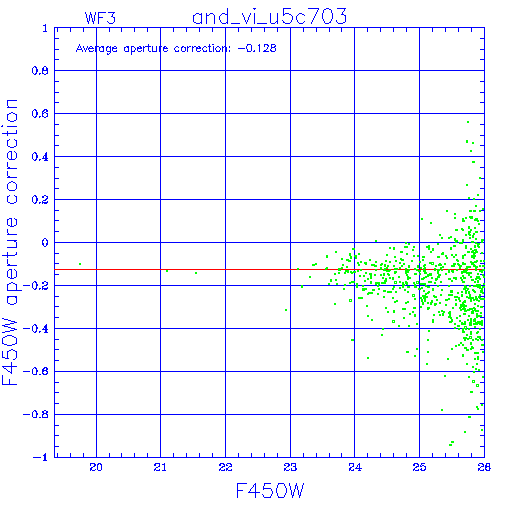

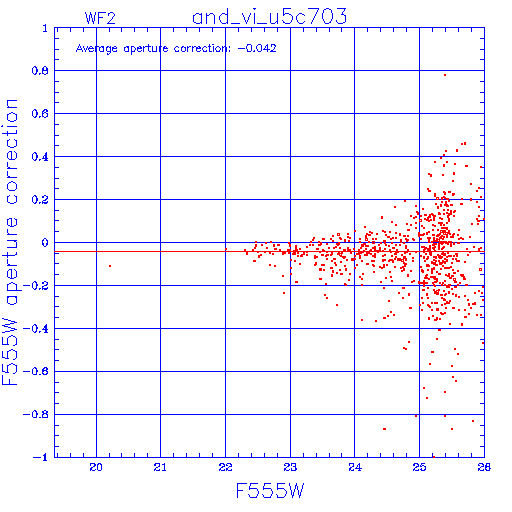

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
