Photometry Diagnostics for and_ii_u41r01

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u41r0101r	F555W	1300.00	0.00	0.00	0.00	0.00	0.00	0.00
u41r0102r	F555W	1200.00	-0.01	-0.05	0.00	0.00	-0.01	-0.05
u41r0103m	F555W	1200.00	0.02	0.03	0.00	0.00	0.02	0.03
u41r0201r	F555W	1200.00	20.65	21.19	20.94	20.80	-0.29	0.39
u41r0202r	F555W	1200.00	20.87	21.16	20.94	20.80	-0.07	0.36
u41r0203r	F555W	1200.00	20.60	21.36	20.94	20.80	-0.34	0.56
u41r0204r	F555W	1200.00	20.74	21.24	20.94	20.80	-0.20	0.44
u41r0104r	F450W	1200.00	-0.30	-0.19	0.00	0.00	-0.30	-0.19
u41r0105r	F450W	1300.00	-0.42	0.01	0.00	0.00	-0.42	0.01
u41r0106r	F450W	1300.00	-0.41	-0.07	0.00	0.00	-0.41	-0.07
u41r0107r	F450W	1300.00	-0.43	0.02	0.00	0.00	-0.43	0.02
u41r0108r	F450W	1300.00	-0.46	-0.06	0.00	0.00	-0.46	-0.06
u41r0109r	F450W	1300.00	-0.57	0.17	0.00	0.00	-0.57	0.17
u41r010ar	F450W	1300.00	-0.53	0.06	0.00	0.00	-0.53	0.06
u41r0205r	F450W	1300.00	20.53	21.14	20.94	20.80	-0.41	0.34
u41r0206r	F450W	1300.00	20.52	21.04	20.94	20.80	-0.42	0.24
u41r0207r	F450W	1300.00	20.46	21.29	20.94	20.80	-0.48	0.49
u41r0208r	F450W	1300.00	20.54	21.13	20.94	20.80	-0.40	0.33
u41r0209r	F450W	1300.00	20.49	21.23	20.94	20.80	-0.45	0.43
u41r020ar	F450W	1300.00	20.43	21.13	20.94	20.80	-0.51	0.33
u41r020br	F450W	1300.00	20.34	21.30	20.94	20.80	-0.60	0.50
u41r020cr	F450W	1300.00	20.41	21.22	20.94	20.80	-0.53	0.42

Mosaic images

F555W	F450W

HSTPHOT command log

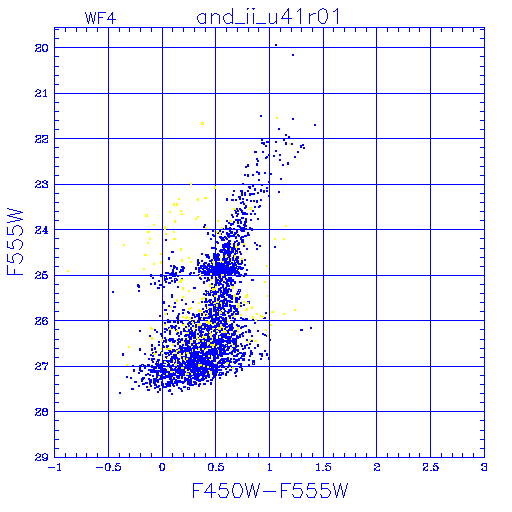

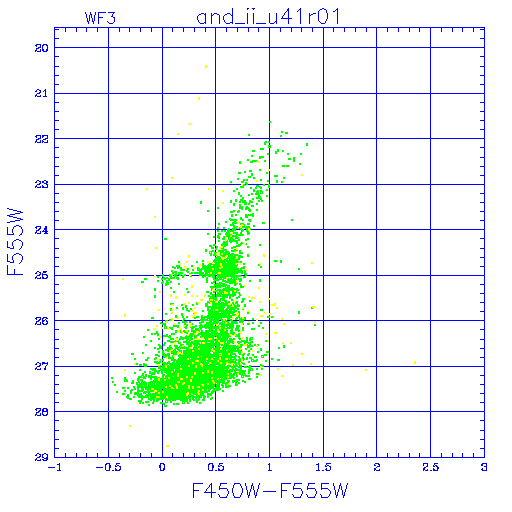

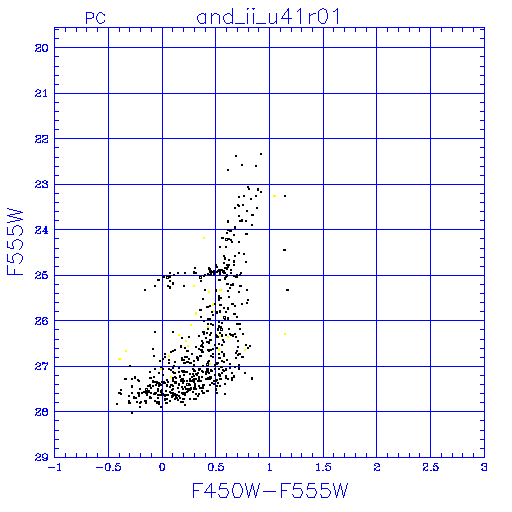

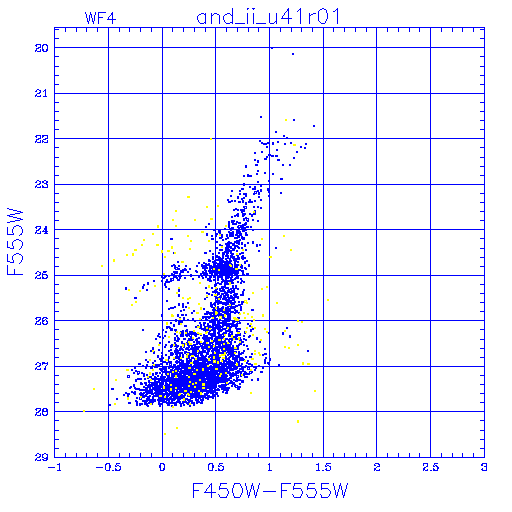

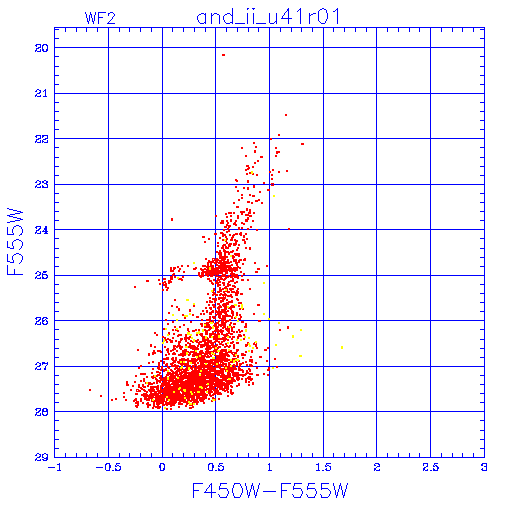

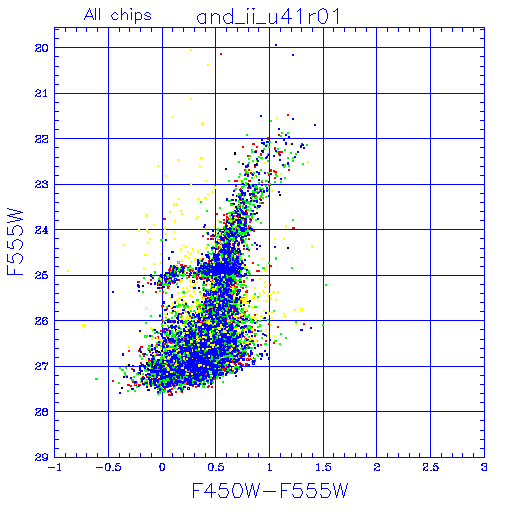

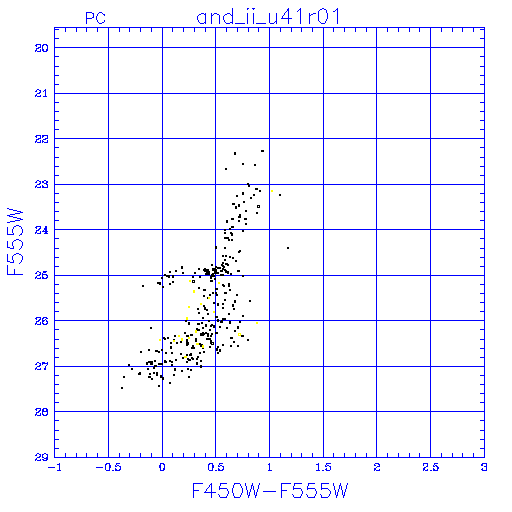

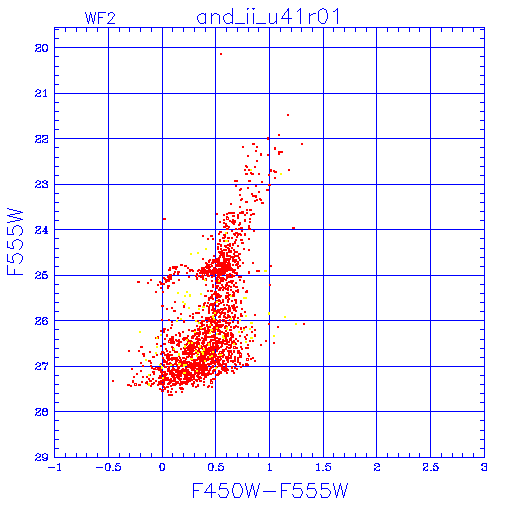

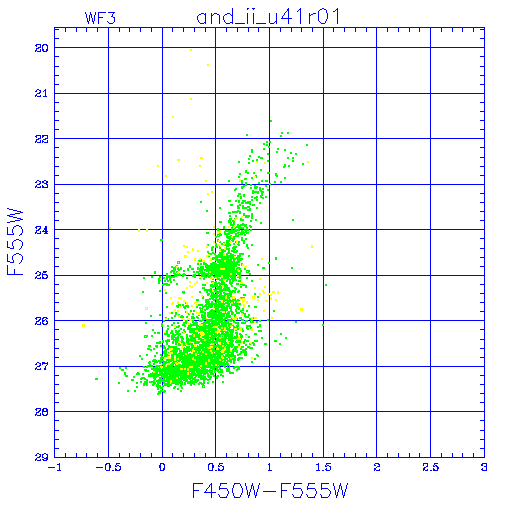

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4

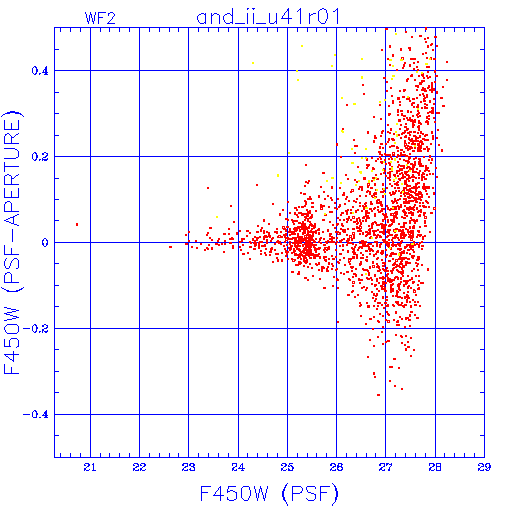

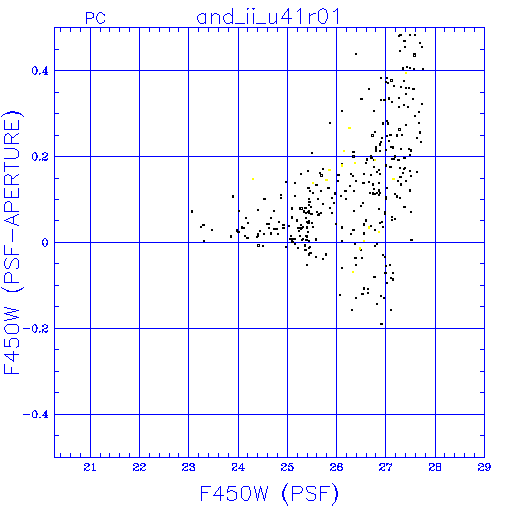

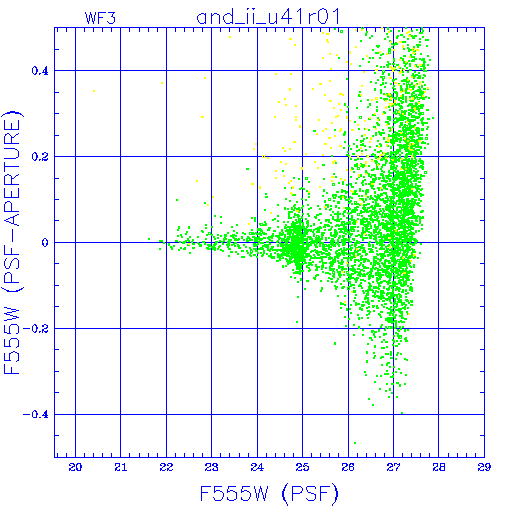

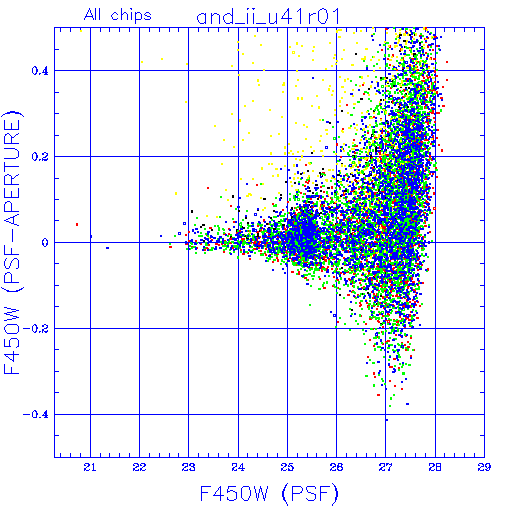

PSF
Aperture

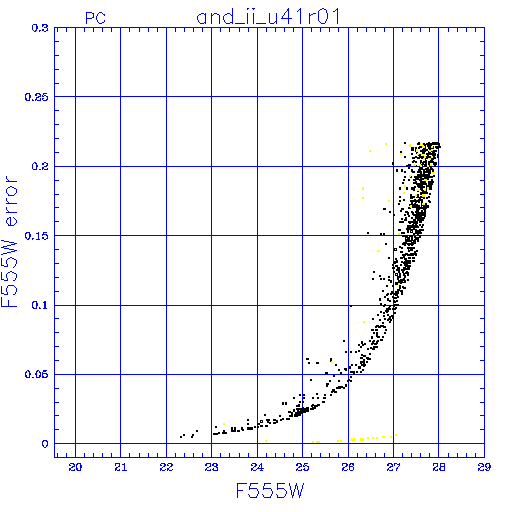

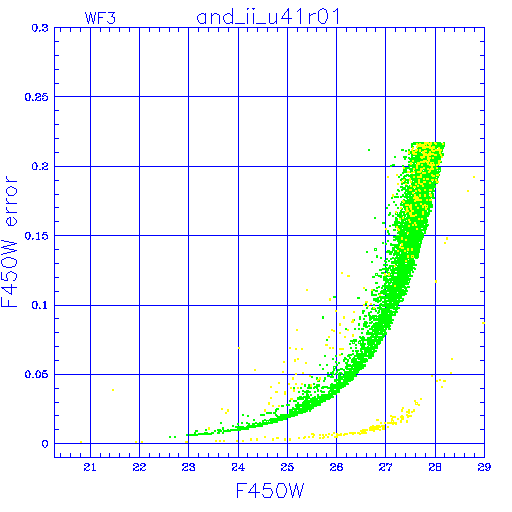

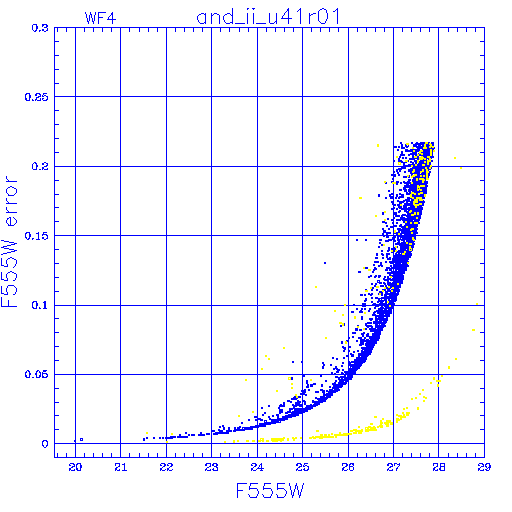

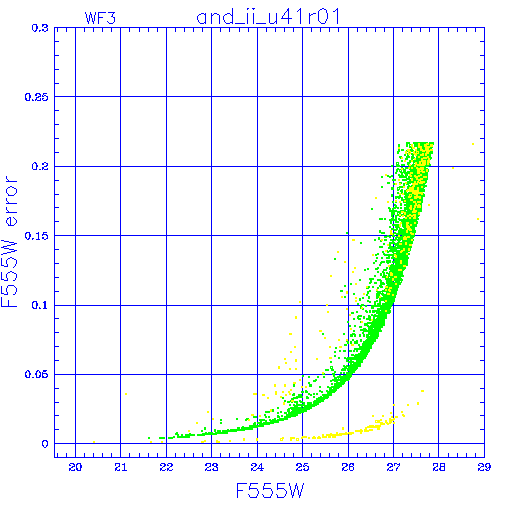

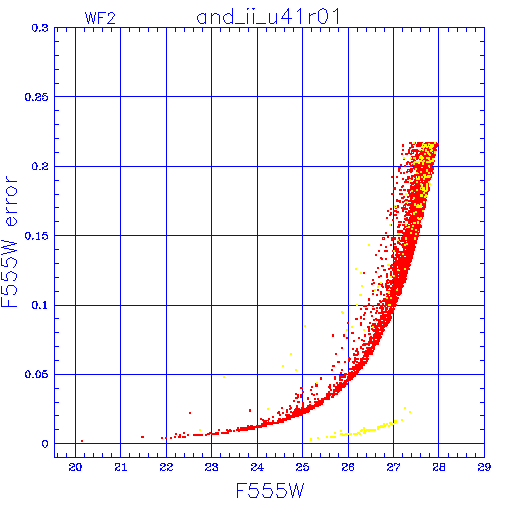

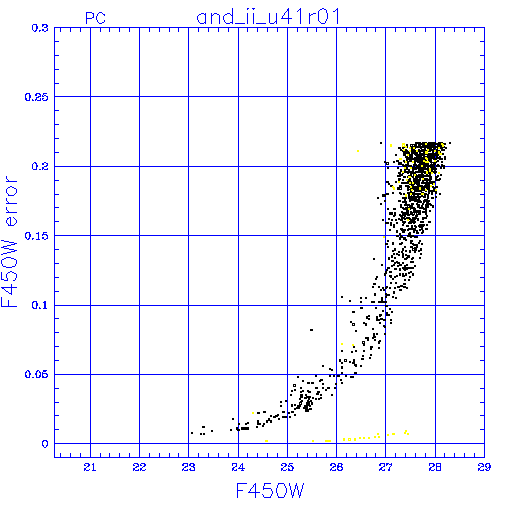

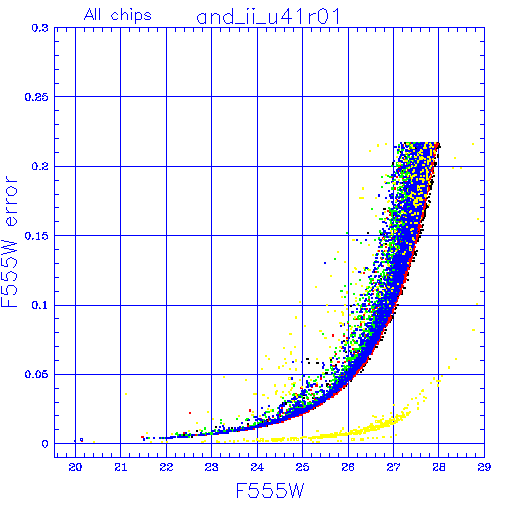

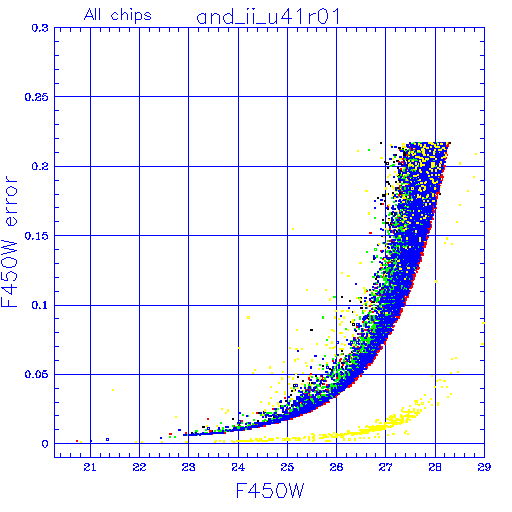

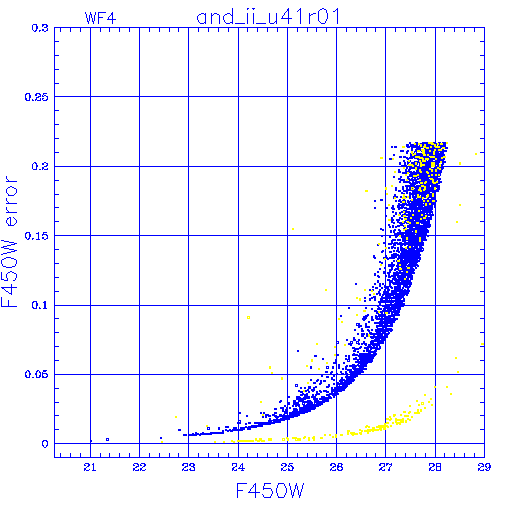

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f450w

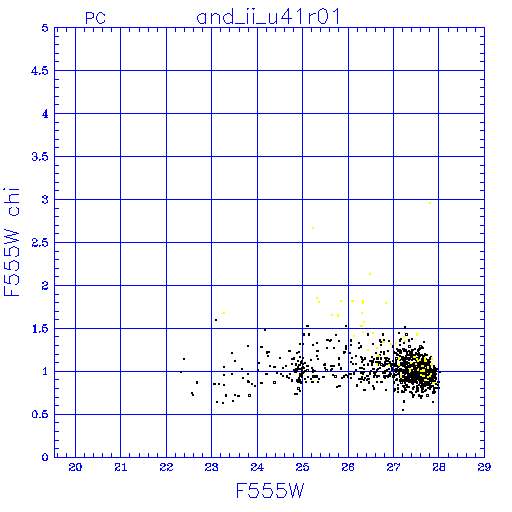

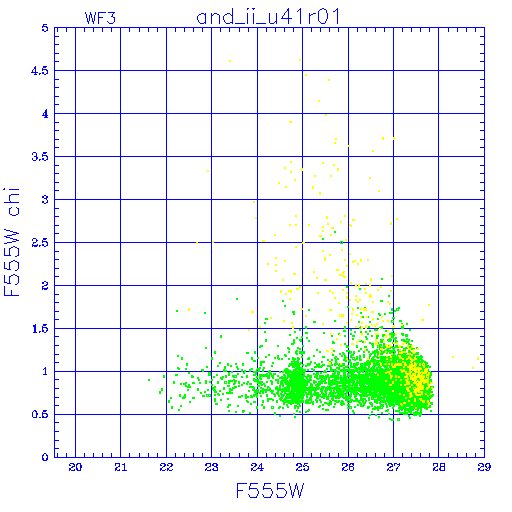

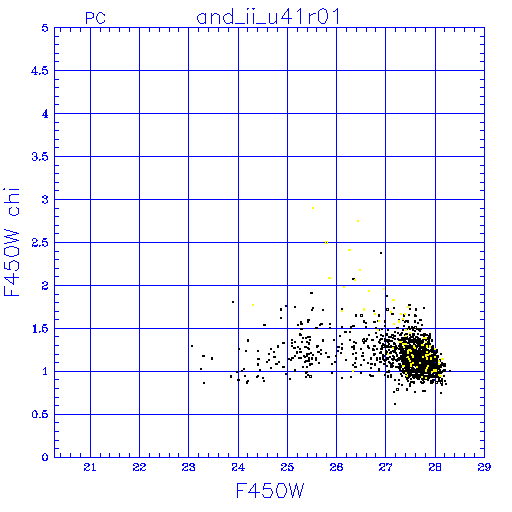

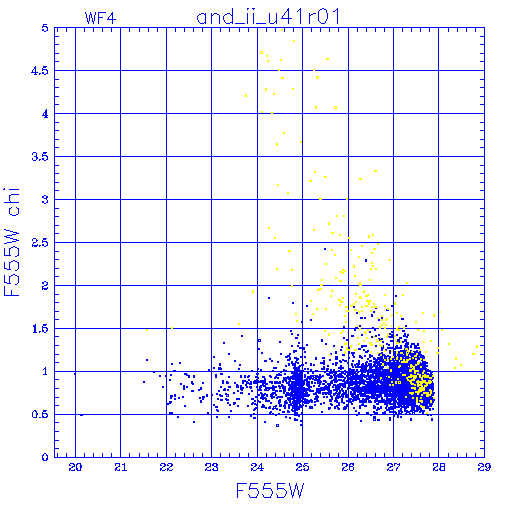

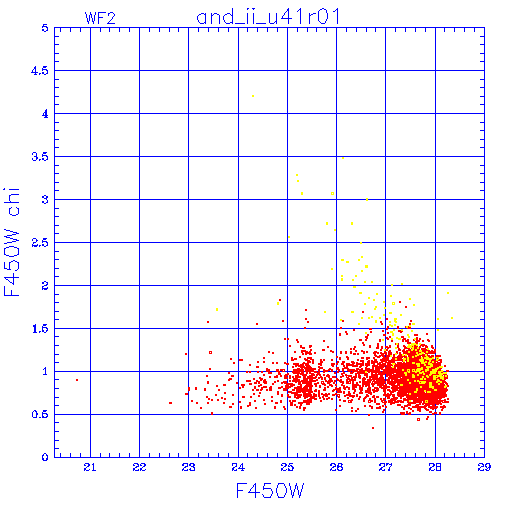

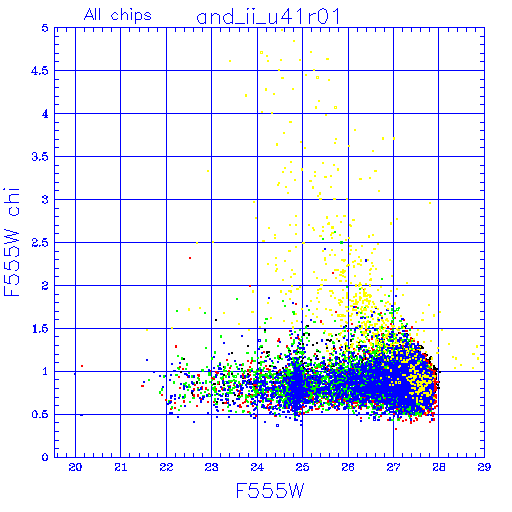

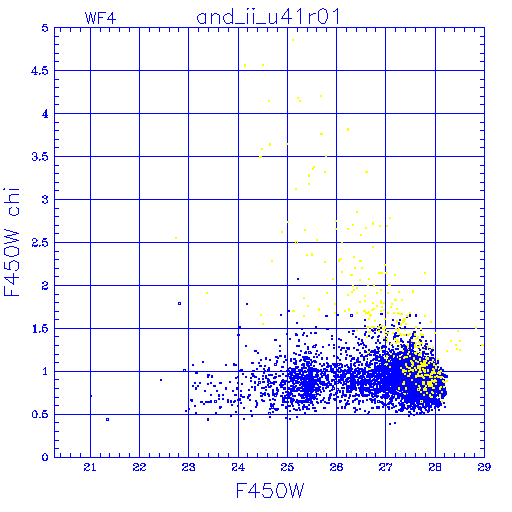

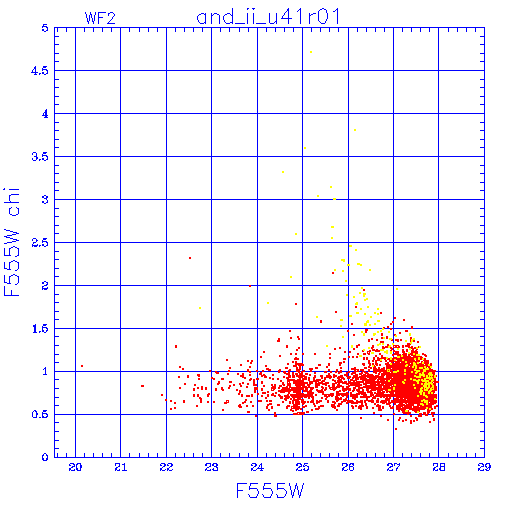

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f450w

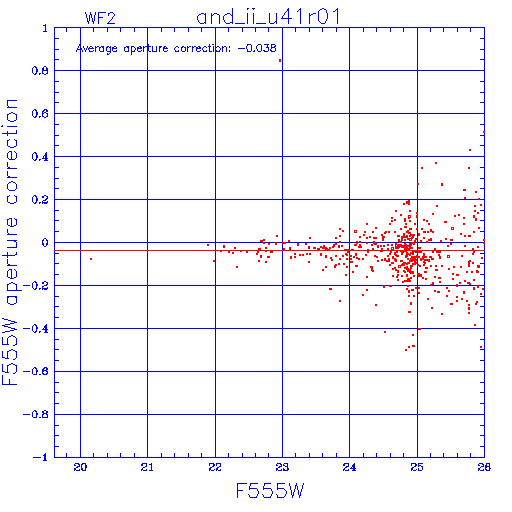

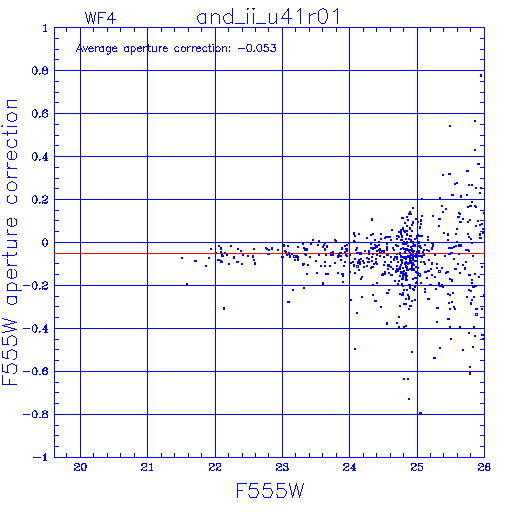

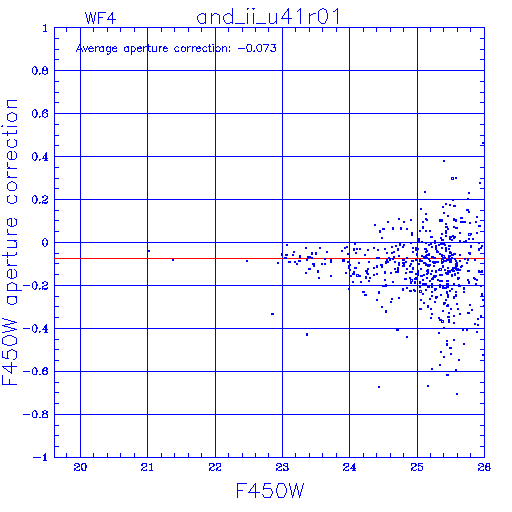

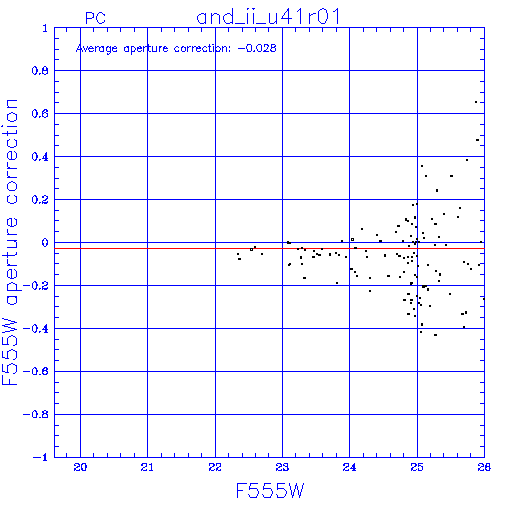

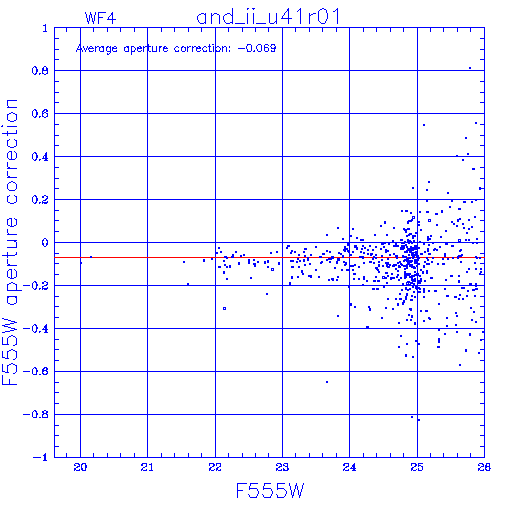

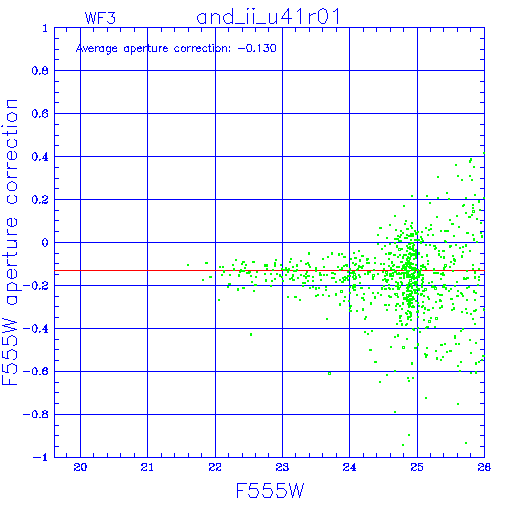

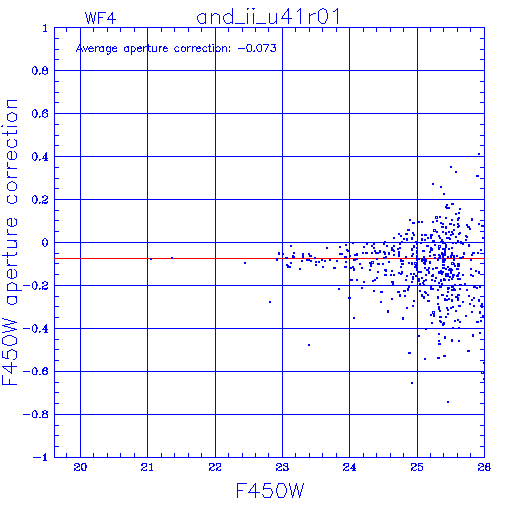

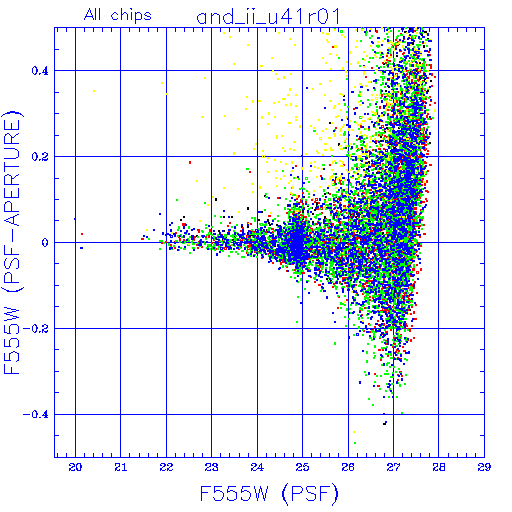

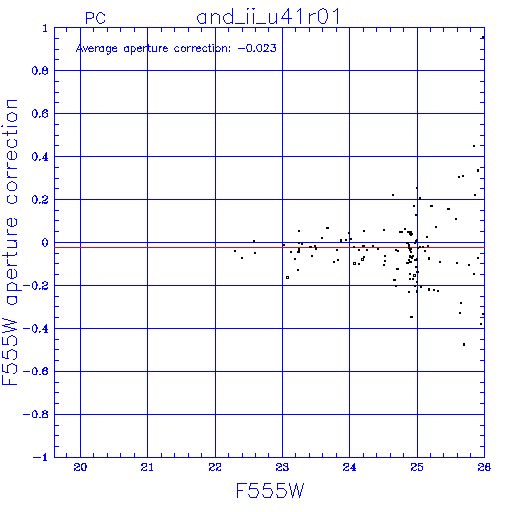

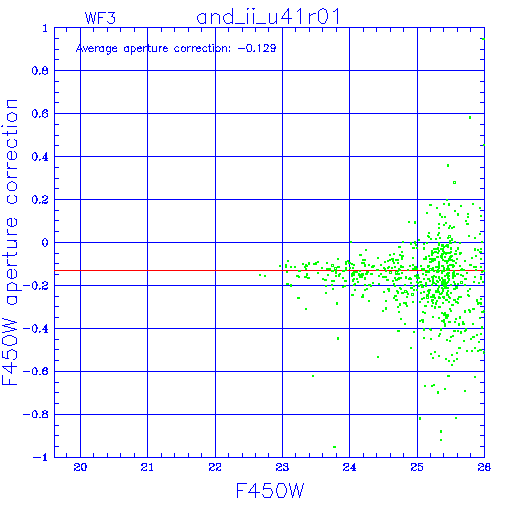

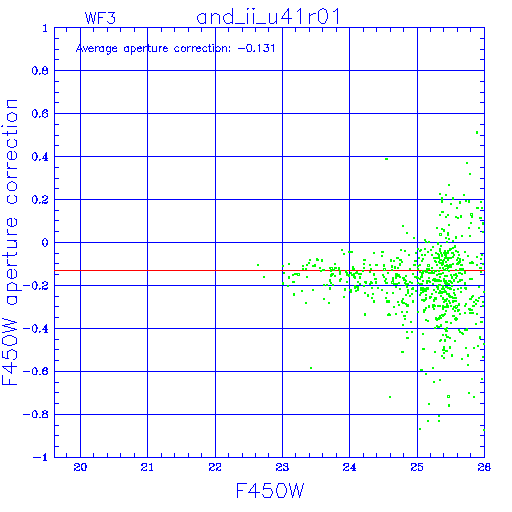

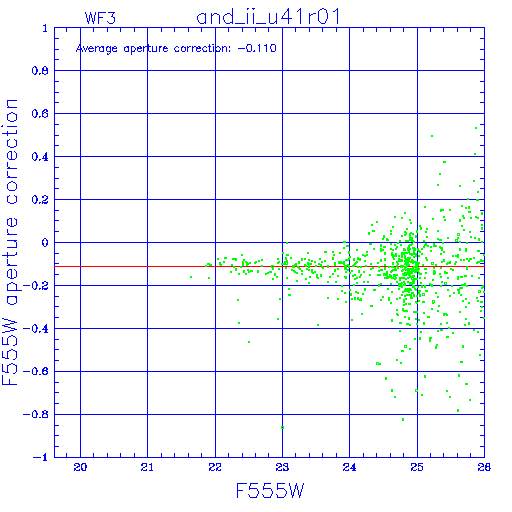

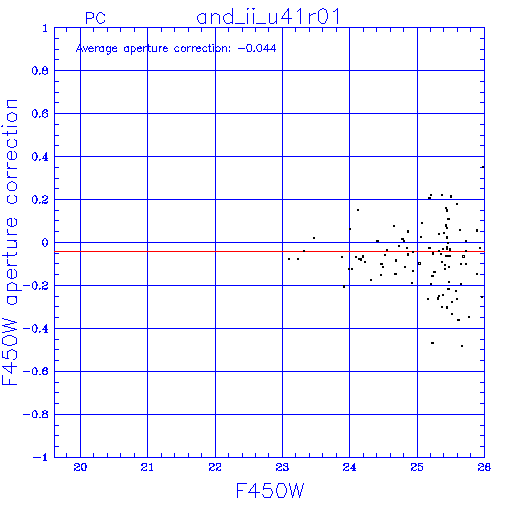

Aperture corrections

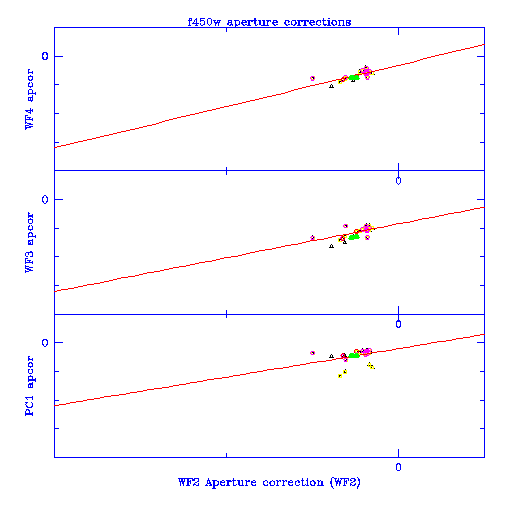

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
